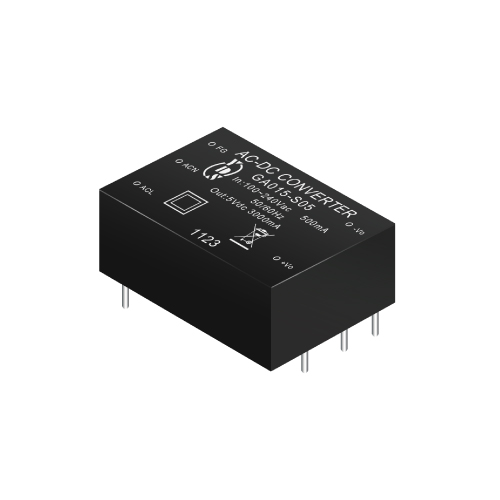

GA015系列 13~19瓦 3KVac隔離電壓 穩壓輸出 交流對直流電源轉換器

功能&特點

• 通用輸入電壓 90～264VAC。

• 效率高達85%。

• 短路／過載／過壓保護。

• 塑膠外殼全封裝。

• 內置輸入濾波器。

• 產品保固3年。

• 符合RoHS認證。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Wattage	Output Voltage	Output Current	Ripple & Noise	Efficiency
	(W)	(VDC)	(mA)	(mV) max (Note)	(TYP %)
GA015-S03	13.0	3.3	4000	100	72
GA015-S05	15.0	5	3000	100	78
GA015-S12	18.0	12	1500	100	82
GA015-S15	18.0	15	1200	150	82
GA015-S24	19.0	24	800	150	83
GA015-S48	19.0	48	400	240	85
GA015-D05	15.0	±5	±1500	100	75
GA015-D12	15.0	±12	±625	150	79
GA015-D15	15.0	±15	±500	150	80
GA015-D24	15.0	±24	±320	150	80
GA015-D0512	14.8	Vo1 = +5, Vo2 = +12	Io1 = 2000, Io2 = 400	100 (Vo1) 150 (Vo2)	74
GA015-D0515	14.5	Vo1 = +5, Vo2 = +15	Io1 = 2000, Io2 = 300		74
GA015-D0524	14.8	Vo1 = +5, Vo2 = +24	Io1 = 2000, Io2 = 200		76

Notes:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor arcoss each output by full load.

Input Specifications

Parameters	Conditions		Min	Typ	Max	Units
Rated Input Voltage	Vo, Io nom			100 ~ 240		Vac
Voltage Range	Vo, Io nom	AC in	90		264	Vac
		DC in	120		370	Vdc
Line Frequency	Vi nom, Io nom		47	50/60	63	Hz
Inrush Current	Io nom	Vi: 115VAC			10	A
		Vi: 230VAC			20	A
Input Fuse	VDE / UL / CCC FUSE 2.5A / 250V (Slow blow)

Output Specifications

Parameters	Conditions		Min	Typ	Max	Units
Output Voltage Accuracy	Vi nom, Io nom	3.3V, 5V Models			±3	%
		12....48V Models			±2
	Dual Output				±5	%
Minimum Load	Vi nom	Single Output Models	0			%
		Dual Output Models (each output)	20			%
Line Regulation	Io nom, Vi min....Vi max			±1		%
Load Regulation	Io min~ Io nom	Single Output Models		±2		%
		Dual Output Models		±5		%
Transient Recovery Time	Vi nom, Io nom = ← → 0.5 Io nom			1000		us
Protection	Over load		Above 110% rated output power
			Protection type: Recovers automatically after fault condition is removed
	Short circuit		Recovers automatically after fault condition is removed
	Over Voltage (Main Output)		120%-150% rated output Voltage
			Protection type: Zener diode clamp

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Switching Frequency	Vi nom, Io nom		65		KHz
Isolation Voltage	Input / Output	3KVac / 5mA / 5Secs
Isolation Resistance	Input / Output, @500 Vdc	100			MΩ
Operating Temperature	Operating at Vi nom, Io nom	-20		+70	℃
Derating	Vi nom, Io nom +51 to 71℃			2	% / ℃
Storage Temperature	Non Operational	-40		+85	℃
Relative Humidity	Vi nom, Io nom			95	% RH
Safety Standards	EN60950-1 approved
EMI Conduction & Radiation	Compliance to EN55022
EMS Immunity	Compliance to EN55024
Dimension	L 69.85 x W 48.01 x H 23.37 mm L 2.75 x W 1.89 x H 0.92 inches
Cooling	Free air convection

Dimension
