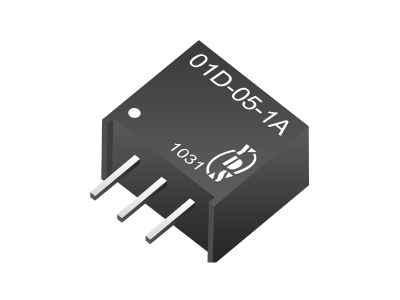

01D-1A 系列 非隔離 1.2~15瓦 直流對直流電源轉換器

功能&特點

• 3PIN SIP 包裝。

• 腳位兼容線性穩壓器 LM78XX。

• 效率高達96%(無隔離/不需散熱片)。

• 提供客製化。

• 包裝材質符合 UL94V-0。

• 操作環境溫度:-40°C TO +85°C。

• 產品3年保固。

• 短路保護。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Range	Output Voltage	Output Current	Efficiency
	Vdc	Vdc	mA	Min. Vin (%)	Max. Vin (%)
01D-1R2-1A	4.6-36	1.2	1000	74	62
01D-1R5-1A	4.6-36	1.5	1000	78	65
01D-1R8-1A	4.6-36	1.8	1000	82	69
01D-2R5-1A	4.6-36	2.5	1000	87	75
01D-3R3-1A	4.75-36	3.3	1000	90	78
01D-05-1A	6.5-36	5.0	1000	92	85
01D-6R5-1A	9.0-36	6.5	1000	93	88
01D-09-1A	12-36	9.0	1000	95	90
01D-12-1A	15-36	12	1000	95	92
01D-15-1A	18-36	15	1000	96	94

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance				±2	%
Short Circuit Protection	Hiccup, automatic recovery
Line Regulation	1.2V to 1.5V			0.3	%
	1.8V to 15V			0.3	%
Load Regulation	1.2V to 1.5V (10% To 100% F.L)			0.6	%
	1.8 V to 15V (10% To 100% F.L.)			0.4	%
Ripple & Noise (without Output Capacitor)	1.2V to 6.5V (BW = DC To 20MHz)			50	mVp-p
	9V to 15V (BW = DC To 20MHz)			75	mVp-p
Transient response setting time	25% load step change		250		us
Capacitive load				470	uF

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Switching Frequency			500		KHz
Operating Temperature	With derating	-40		+85	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case material	Non-Conductive Black Plastic
Weight			2.0		g
Dimensions		11.6 x 7.6 x 10.4			mm
MTBF (+25℃)	using MIL-HDBK 217F	5000 x 103			hours
MTBF (+71℃)	using MIL-HDBK 217F	1000 x 103			hours

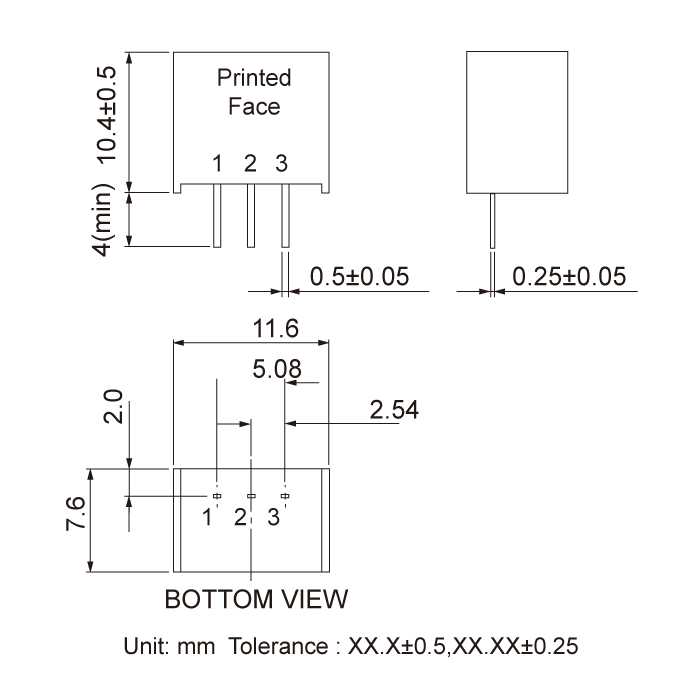

Dimension
