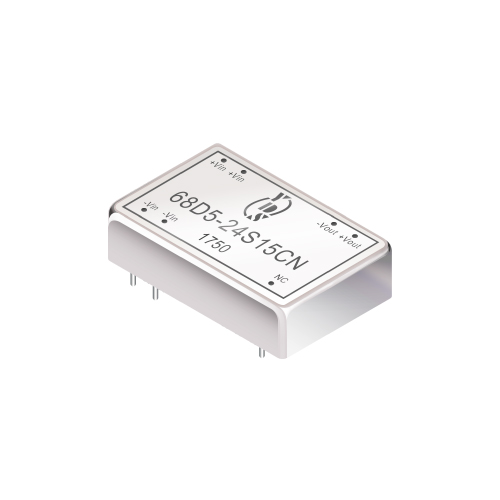

68D5 系列 5~6瓦 1.5KV隔離電壓 2:1寬輸入 直流對直流電源轉換器

功能&特點

• 寬輸入2:1電壓範圍。

• 5-6瓦 24PIN DIL 包裝。

• 效率高達80%。

• 1500Vdc隔離電壓。

• 可靠度試驗:>1,500,000 hrs。

• 操作環境溫度:-40℃ 至 +85℃。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Output Voltage	Output Current	Input Current		Efficiency
				No Load	Full Load
	Vdc	Vdc	mA	mA	mA	%Typ
68D5-12S03CN	9-18	3.3	1000	7.5	405	70
68D5-12S05CN	9-18	5	1000	7.5	545	75
68D5-12S12CN	9-18	12	470	7.5	585	80
68D5-12S15CN	9-18	15	400	7.5	625	80
68D5-12D05CN	9-18	±5	±500	12	545	75
68D5-12D12CN	9-18	±12	±230	12	575	80
68D5-12D15CN	9-18	±15	±190	12	590	80
68D5-24S03CN	18-36	3.3	1000	5	195	70
68D5-24S05CN	18-36	5	1000	5	265	78
68D5-24S12CN	18-36	12	470	5	285	80
68D5-24S15CN	18-36	15	400	5	305	80
68D5-24D05CN	18-36	±5	±500	7.5	265	80
68D5-24D12CN	18-36	±12	±230	7.5	285	80
68D5-24D15CN	18-36	±15	±190	7.5	295	80
68D5-48S03CN	36-72	3.3	1000	2	98	70
68D5-48S05CN	36-72	5	1000	2	133	80
68D5-48S12CN	36-72	12	470	2	145	80
68D5-48S15CN	36-72	15	400	2	154	80
68D5-48D05CN	36-72	±5	±500	3	265	80
68D5-48D12CN	36-72	±12	±230	3	142	80

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance				±2	%
Short Circuit Protection	Continuous
Line Regulation				± 0.5	%
Load Regulation	Single (F.L To 10% Load)			± 0.5	%
Load Regulation	Dual (F.L To 1/4 Load)			±1.0	%
Ripple & Noise	BW=DC To 20MHz			100	mVp-p
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			200		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	Nickel Coated Copper With Non-Conductive Base
Weight		16.2			g
Dimensions		31.60 x 20.10 x 11.0			mm

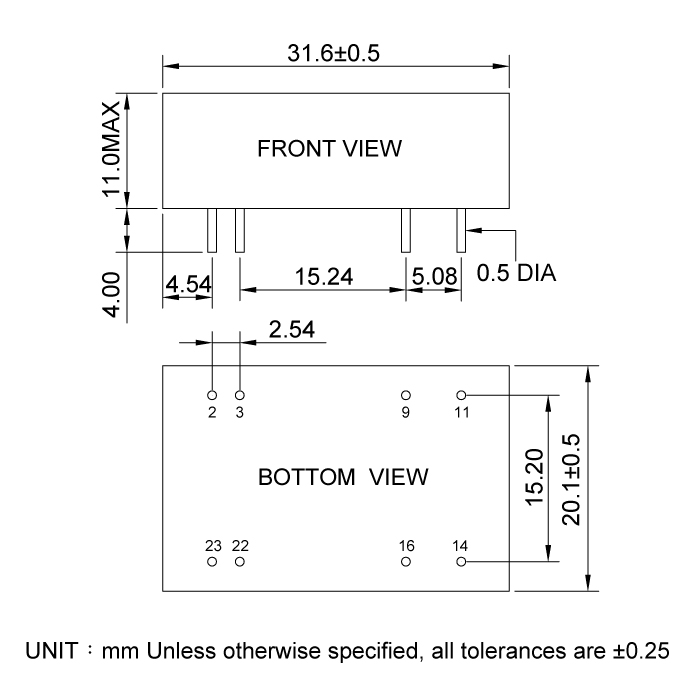

Dimension

 Files Download       68D5-Series.pdf

Certification
