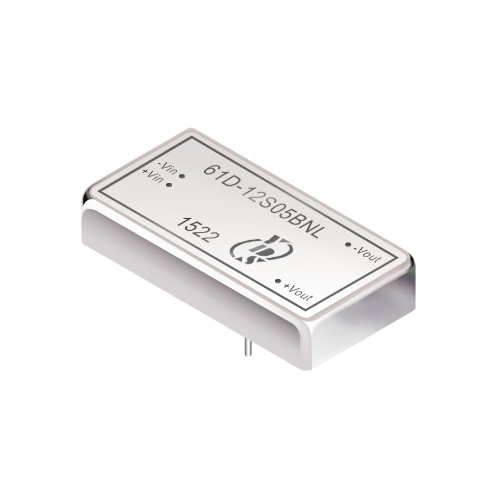

61D-BNL 系列 10瓦 1.5KV隔離電壓 2:1寬輸入 直流對直流電源轉換器

功能&特點

• 10瓦包裝。

• 寬輸入2:1電壓範圍。

• 100%高溫預燒測試。

• 效率高達82%。

• 可提供客製化。

• 符合UL94V-0規範包裝材質。

• 操作環境溫度:-40°C 至 +87°C。

• 產品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency	Capacitor Load
	Vdc	No-Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP	uF TYP
61D-12S03BNL	9-18	30	733	3.3	2000	75	2200
61D-12S05BNL	9-18	30	1054	5	2000	79	2200
61D-12S12BNL	9-18	30	1041	12	833	80	1000
61D-12S15BNL	9-18	30	1027	15	666	81	470
61D-12S24BNL	9-18	30	1014	24	416	82	330
61D-12D05BNL	9-18	30	1054	±5	±1000	79	±1000
61D-12D12BNL	9-18	30	1027	±12	±416	81	±470
61D-12D15BNL	9-18	30	1014	±15	±333	82	±330
61D-12D24BNL	9-18	30	1014	±24	±208	82	±220
61D-24S03BNL	18-36	25	366	3.3	2000	75	2200
61D-24S05BNL	18-36	25	527	5	2000	79	2200
61D-24S12BNL	18-36	25	514	12	833	81	680
61D-24S15BNL	18-36	25	507	15	666	82	470
61D-24S24BNL	18-36	25	507	24	416	82	470
61D-24D05BNL	18-36	25	527	±5	±1000	79	±1000
61D-24D12BNL	18-36	25	514	±12	±416	81	±470
61D-24D15BNL	18-36	25	514	±15	±333	81	±330
61D-24D24BNL	18-36	25	507	±24	±208	82	±220
61D-48S03BNL	36-72	20	183	3.3	2000	75	2200
61D-48S05BNL	36-72	20	263	5	2000	79	2200
61D-48S12BNL	36-72	20	257	12	833	81	680
61D-48S15BNL	36-72	20	257	15	666	81	470
61D-48S24BNL	36-72	20	253	24	416	82	330
61D-48D05BNL	36-72	20	263	±5	±1000	79	±1000
61D-48D12BNL	36-72	20	253	±12	±416	82	±470
61D-48D15BNL	36-72	20	253	±15	±333	82	±330
61D-48D24BNL	36-72	20	253	±24	±208	82	±220

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	Pi TYPE

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance				±2	%
Short Circuit Protection	Continuous
Line Regulation				±0.5	%
Load Regulation	Single (25% to 100%)			±0.5	%
Load Regulation	Dual			±2.0	%
Ripple & Noise	BW=DC To 20MHz			100	mVp-p
Transient response setting time	25% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			200		KHz
Operating Temperature		-40		+87	℃
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case Material	Copper
Weight		36.5			g
Dimensions		51.0 x 25.4 x 11.5			mm
Potting Material		Silicone(UL94V-0 rated)
Radiated Emissions	EN55022	CLASS A
	FCC 47 CFR Part 15 subpart A	CLASS A

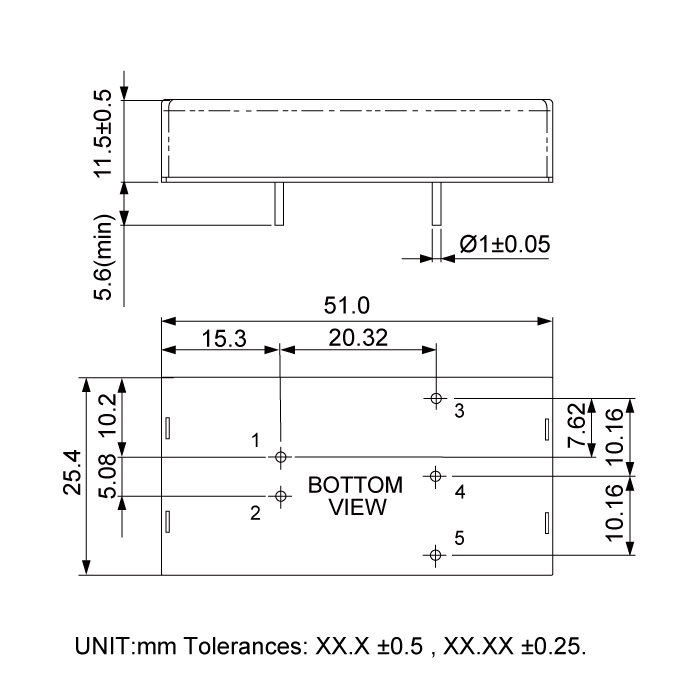

Dimension

 Files Download       61D-BNL-Series.pdf

Certification
