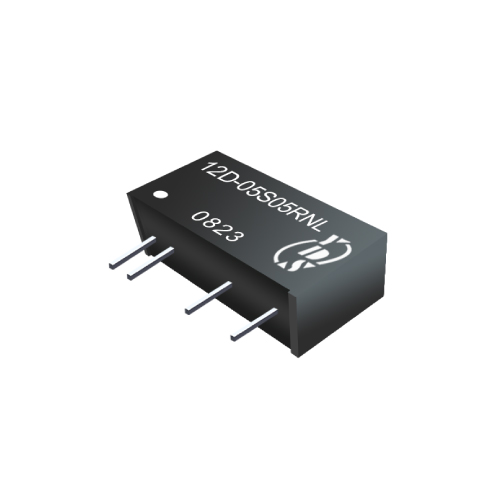

12D-R 系列 1瓦 3KV隔離電壓 直流對直流電源轉換器

功能&特點

• 7PIN SIP 包裝。

• 效率高達80%。

• 穩壓輸出類型。

• 內部為SMD結構。

• 不需外部零組件。

• 工業標準引腳。

• 操作環境溫度:-40℃ 至 +85℃。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency
	Vdc	mA	% TYP
12D-XXS03RNL	3.3	303	65
12D-XXS05RNL	5	200	65
12D-XXS09RNL	9	112	70
12D-XXS12RNL	12	84	70
12D-XXS15RNL	15	67	70
12D-XXS24RNL	24	42	70

Note:
1. ”XX” Is Input Voltage:03=3.3Vdc, 05=5Vdc, 09=9Vdc 12=12Vdc,15=15Vdc,24=24Vdc.
2. The input voltage increases, there will be an increase in efficiency.
3. Input 3.3V, then output will be 12V MAX;Output 3.3V, then input will be 12V MAX.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo, Io Nom			±10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Continuous
Line Regulation	Regulated			± 0.5	%
Load Regulation	Regulated			±1.5	%
Ripple & Noise	Output:5V,9V Types BW=DC To 20MHz			100	mVp-p
Ripple & Noise	Output:12-24V Types BW=DC To 20MHz			1% of Vout	mVp-p
Transient Response Setting Time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	DAP
MTBF	MIL-HDBK-217F @25℃	1500000			Hours
Weight			2.7		g
Dimensions		19.5 x 7.1 x 10.0			mm

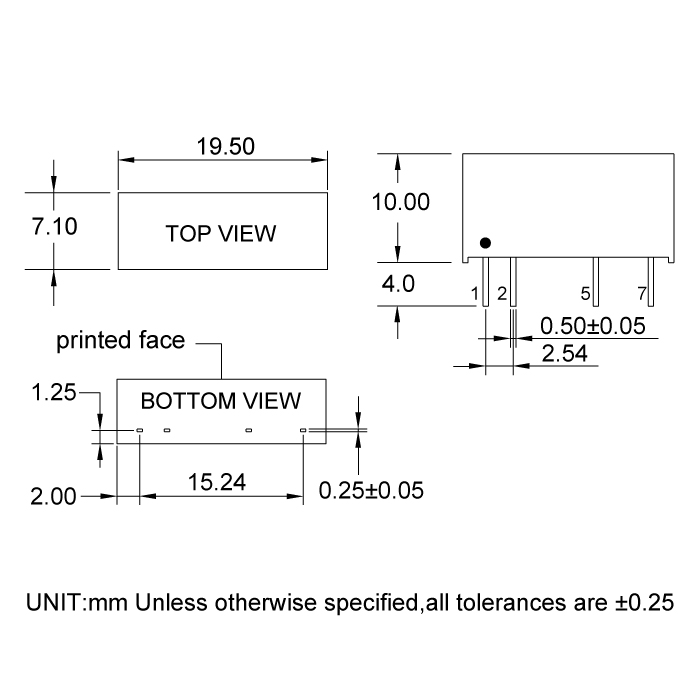

Dimension
