GB200系列 200瓦 3KVac隔離電壓 5"x 3" 小尺寸 交流對直流電源轉換器

功能&特點

• 通用輸入電壓 90~264VAC。

• 效率高達93%(標準值)。

• 短路/過載/過壓/過溫保護。

• 內置主動式PFC。

• 5" x 3"微型尺寸。

• 空載功耗<0.5W。

• 產品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Ripple & Noise	Efficiency	Output Power(W)
	V	MAX	mVp-p(Max) (note)	%(TYP)	Rated
GB200-S12	12	16.7A	200	92	200.4
GB200-S15	15	13.4A	200	92	201
GB200-S24	24	8.4A	250	93	201.6
GB200-S27	27	7.5A	250	93	202.5
GB200-S48	48	4.2A	350	93	201.6

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Rated Input Voltage	Io nom		100 ~ 240		Vac
Voltage Range	Io nom	90		264	Vac
	Io nom	127		370	Vdc
Frequency		47	50/60	63	Hz
Inrush Current	At 115Vac			30	A
	At 230Vac			60	A
Input Over-Current Protection	VDE/UL/CCC  FUSE 3.15A/250V
Power Factor	PF> 0.93 / 230Vac  PF> 0.98 / 115Vac at full load

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Output Voltage Accuracy	Vi nom, Io nom			±2	%
Minimum Load	Vi nom	0
Line Regulation	Io nom, Vi min…Vi max		±1.0		%
Load Regulation	Vi nom, Io min…Io nom		±2.0		%
Protection	Over Load	115% -150% rated output power
		Protection type: Shut off o/p voltage, re-power on to recover
	Over Voltage	120%-150% rated output Voltage
		Protection type: Shut off o/p voltage, re-power on to recover
	Short circuit	Protection type: Shut off o/p voltage, re-power on to recover
	Over temperature	Protection type: Shut off o/p voltage, re-power on to recover

Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
MTBF	MIL-HDBK-217F(25℃)	100,000			Hrs
Isolation Voltage	Input To Output	3000V AC 5mA/5Secs
	Input To Ground	2000V AC 5mA/5Secs
	Output To Ground	500V AC 5mA/5Secs
Size		127x76.2x36.0(5.0x3.0x1.42)			Mm (inches)
Weight			327		g
Operating Temperature	With Derating	-20		+70	℃
Storage Temperature		-45		+85	℃

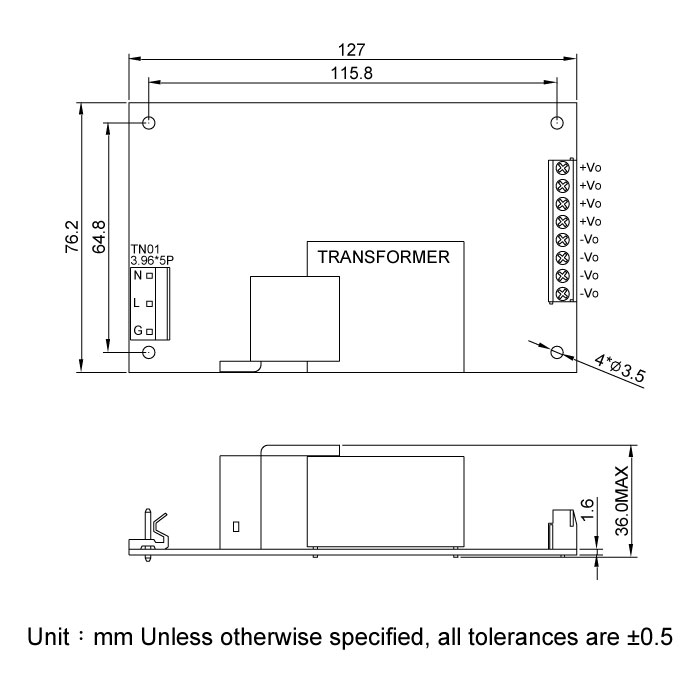

Dimension

 Files Download      GB200-Series.pdf

Certification
