68DW10 系列
YDS
10瓦 DIL 包裝。
寬輸入4:1電壓範圍。
100%高溫預燒測試。
高效率達87%。
可提供客製化。
具備遙控開關功能。
符合UL94V-0規範包裝材質。
操作環境溫度:-40°C 至 +84°C。
產品保固3年。
Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
---|---|---|---|---|---|---|
Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %Typ | |
68DW10-24S03RNL | 9-36 | 50 | 491 | 3.3 | 3000 | 84 |
68DW10-24S05RNL | 9-36 | 50 | 484 | 5 | 2000 | 86 |
68DW10-24S12RNL | 9-36 | 30 | 484 | 12 | 833 | 86 |
68DW10-24S15RNL | 9-36 | 30 | 487 | 15 | 670 | 86 |
68DW10-24D05RNL | 9-36 | 30 | 496 | ±5 | ±1000 | 84 |
68DW10-24D12RNL | 9-36 | 30 | 483 | ±12 | ±420 | 87 |
68DW10-24D15RNL | 9-36 | 30 | 489 | ±15 | ±340 | 87 |
68DW10-48S03RNL | 18-75 | 30 | 246 | 3.3 | 3000 | 84 |
68DW10-48S05RNL | 18-75 | 30 | 242 | 5 | 2000 | 86 |
68DW10-48S12RNL | 18-75 | 20 | 242 | 12 | 833 | 86 |
68DW10-48S15RNL | 18-75 | 20 | 243 | 15 | 670 | 86 |
68DW10-48D05RNL | 18-75 | 20 | 248 | ±5 | ±1000 | 84 |
68DW10-48D12RNL | 18-75 | 20 | 241 | ±12 | ±420 | 87 |
68DW10-48D15RNL | 18-75 | 20 | 244 | ±15 | ±340 | 87 |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Types | 4:1 | ||||
Filter | PI Network |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
Short Circuit Protection | Hiccup, automatic Recovery | ||||
Line Regulation | ± 0.5 | % | |||
Load Regulation | Single Dual(Balance Load) | ± 0.5 ± 0.5 | % | ||
Cross Regulation | Dual (25% To 100% Load) | ± 5 | % | ||
Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
Output > 15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
Transient response setting time | 25% load step change | 350 | us |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Voltage | 1500 | Vdc | |||
Isolation Resistance | 500Vdc | 1000 | MΩ | ||
Switching Frequency | 400 | KHz | |||
Operating Temperature | With derating | -40 | +84 | ℃ | |
Storage Temperature | -55 | +125 | ℃ | ||
Humidity | Non Condensing | 95 | % | ||
Cooling | Natural Convection (20LFM) | ||||
Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
MTBF | MIL-HDBK-217F@25℃ | 900000 | Hours | ||
Weight | 17.5 | g | |||

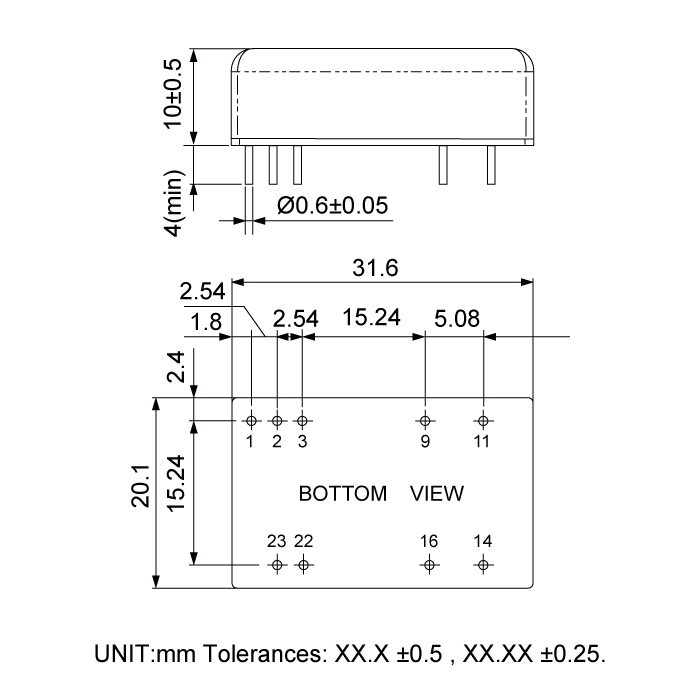

Dimensions | 31.60 x 20.10 x 10.00 | mm |
Files Download 68DW10-Series.pdf
