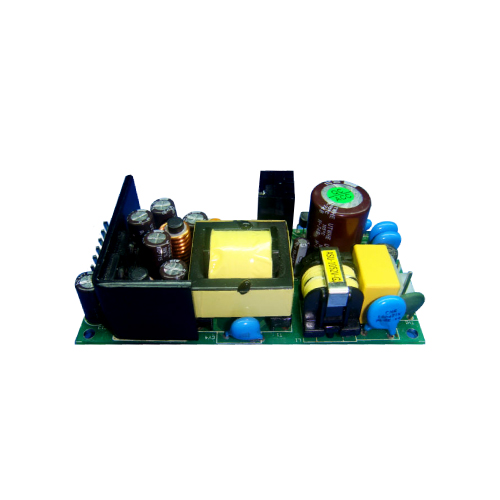

GB020/GB030 系列
YDS
通用輸入電壓 90~264VAC。
效率高達88%。
短路/過載/過壓保護。
符合EMI EN55022 & EMS EN55024標準。
內置輸入濾波器。
產品保固3年。
符合RoHS認證。
Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
---|---|---|---|---|---|
(W) | (VDC) | (mA) | (mV) max(Note) | (TYP %) | |
GB030-S03 | 20 | 3.3 | 6000 | 100 | 70 |
GB030-S05 | 30 | 5 | 6000 | 100 | 75 |
GB030-S12 | 30 | 12 | 2500 | 100 | 80 |
GB030-S15 | 30 | 15 | 2000 | 150 | 84 |
GB030-S24 | 30 | 24 | 1250 | 240 | 86 |
GB030-S48 | 30 | 48 | 625 | 240 | 88 |
GB030-D05 | 30 | ±5 | ±3000 | 100 | 75 |
GB030-D12 | 30 | ±12 | ±1250 | 100 | 78 |
GB030-D15 | 30 | ±15 | ±1000 | 150 | 80 |
GB020-D0503 | 20 | V1=+5 / V2=+3.3 | +3000/+1500 | 150 | 65 |
GB030-D0512 | 30 | V1=+5 / V2=+12.0 | +3000/+1250 | 150 | 75 |
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
Voltage Range | Vo, Io nom | AC in | 90 | 264 | Vac | |
DC in | 120 | 370 | Vdc | |||
Line Frequency | Vi nom, Io nom | 47 | 50/60 | 63 | Hz | |
Inrush Current | Io nom | Vi: 115VAC | 10 | A | ||
Vi: 230VAC | 20 | A | ||||
Input Fuse | VDE/UL/CCC FUSE 2.5A/250V (Slow blow) |
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Output Voltage Accuracy | Vi nom, Io nom (Main output) | 3.3V,5V Models | ±3 | % | ||
12...48V Models | ±2 | % | ||||
Supplement Output | ±5 | % | ||||
Minimum Load | Vi nom | Single Output Models | 0 | % | ||
Dual Output Models (each output) | 20 | % | ||||
Line Regulation | Io nom, Vi min…Vi max | ±1 | % | |||
Load Regulation | Io min~Io nom | Single Output Models | ±2 | % | ||
Dual Output Models | ±5 | % | ||||
Protection | Over Load | Above 110% rated output power | ||||
Protection type: Recovers automatically after fault condition is removed | ||||||
Over Voltage | 120%-150% rated output Voltage | |||||
Protection type: Zener diode clamp | ||||||
Short circuit | Recovers automatically after fault condition is removed |
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
Operating Temperature | Operating at Vi nom, Io nom | -20 | +70 | ℃ | |
Derating | Vi nom,Io nom+51 to 71℃ | 2 | %/℃ | ||
Storage Temperature | Non Operational | -40 | +85 | ℃ | |
Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
Dimension | L101.60 x W50.80 x H31.0 | ||||
Cooling | Free air convection |
Files Download GB020-GB030-Series.pdf
Certification
