48F系列 單埠 100/1000 Base-T RJ45變壓器模組

功能&特點

• 單埠Tab-Down，內部磁性為1000Base-T。

• 350uH最小OCL，8mA偏置電流。

• 內部磁性選項可用。

• 最小2250VDC隔離。

• 通過UL 60950-1 安規認證。

---

Electrical Specifications@25°C; Operating Temperature 0°C to 70°C

Part Number	Turns Ratio (±5%)	Insertion Loss (dB MAX)	Return Loss (dB MIN @100W ± 15Ω)
		0.3-100MHz	1-30 MHz	40 MHz	50 MHz	60-80 MHz
48F-01ND2NL	1CT: 1CT	-1.2	-16	-13.5	-11.5	-10
48F-01GYDS2NL	1CT: 1CT	-1.2	-16	-13.5	-11.5	-10
48F-01GYDP2NL	1CT: 1CT	-1.2	-16	-13.5	-11.5	-10

Part Number	Differential to Common Mode Rejection (dB MIN)			Cross Talk (dB MIN)			Hipot (VDC)
	30 MHz	60 MHz	100 MHz	30 MHz	60 MHz	100 MHz
48F-01ND2NL	-35	-32	-30	-40	-36	-30	2250
48F-01GYDS2NL	-35	-32	-30	-40	-36	-30	2250
48F-01GYDP2NL	-35	-32	-30	-40	-36	-30	2250

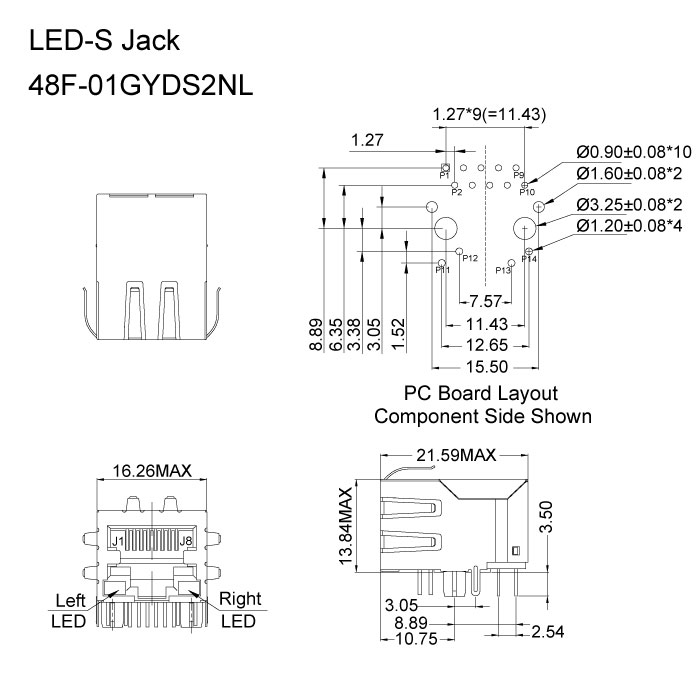

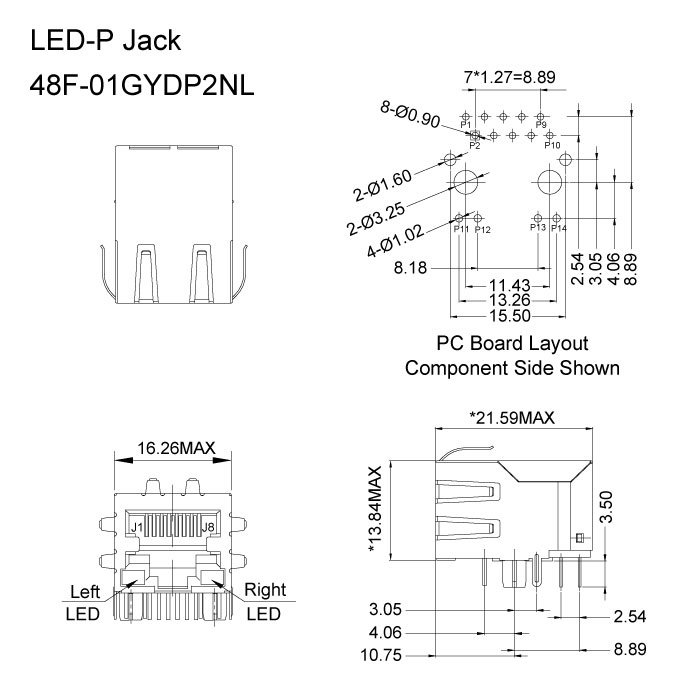

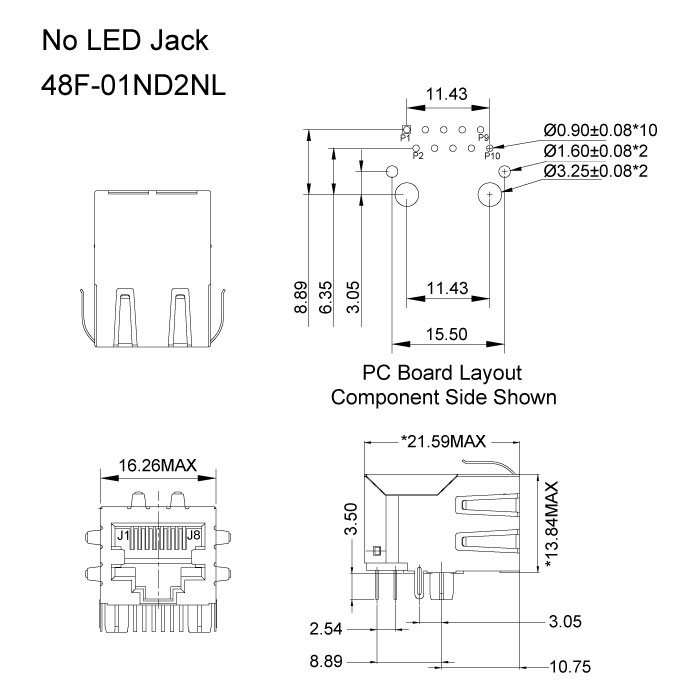

Dimension

 Files Download       48F-Series.pdf

Certification
