61D-R3 系列
YDS
10瓦DIL包裝。
寬輸入2:1電壓範圍。
100%高溫預燒測試。
效率高達86%。
可提供客製化。
具備遙控開關功能。
符合UL94V-0規範包裝材質。
操作環境溫度:-40°C 至 +87°C。
產品保固3年。
Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Capacitor Load | |
---|---|---|---|---|---|---|---|
Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | uF Max | |
61D-12S03R3 | 9-18 | 70 | 994 | 3.3 | 3000 | 83 | 1500 |
61D-12S05R3 | 9-18 | 70 | 980 | 5 | 2000 | 85 | 1500 |
61D-12S12R3 | 9-18 | 30 | 971 | 12 | 835 | 86 | 120 |
61D-12S15R3 | 9-18 | 30 | 967 | 15 | 665 | 86 | 120 |
61D-12D05R3 | 9-18 | 70 | 1004 | ±5 | ±1000 | 83 | ±1000 |
61D-12D12R3 | 9-18 | 30 | 972 | ±12 | ±418 | 86 | ±120 |
61D-12D15R3 | 9-18 | 30 | 968 | ±15 | ±333 | 86 | ±120 |
61D-24S03R3 | 18-36 | 70 | 497 | 3.3 | 3000 | 83 | 3300 |
61D-24S05R3 | 18-36 | 70 | 490 | 5 | 2000 | 85 | 3300 |
61D-24S12R3 | 18-36 | 30 | 485 | 12 | 835 | 86 | 330 |
61D-24S15R3 | 18-36 | 30 | 483 | 15 | 665 | 86 | 330 |
61D-24D05R3 | 18-36 | 70 | 502 | ±5 | ±1000 | 83 | ±2000 |
61D-24D12R3 | 18-36 | 30 | 486 | ±12 | ±418 | 86 | ±330 |
61D-24D15R3 | 18-36 | 30 | 484 | ±15 | ±333 | 86 | ±330 |
61D-48S03R3 | 36-75 | 40 | 248 | 3.3 | 3000 | 83 | 5600 |
61D-48S05R3 | 36-75 | 40 | 245 | 5 | 2000 | 85 | 5600 |
61D-48S12R3 | 36-75 | 30 | 243 | 12 | 835 | 86 | 680 |
61D-48S15R3 | 36-75 | 30 | 242 | 15 | 665 | 86 | 680 |
61D-48D05R3 | 36-75 | 40 | 251 | ±5 | ±1000 | 83 | ±3300 |
61D-48D12R3 | 36-75 | 30 | 243 | ±12 | ±418 | 86 | ±220 |
61D-48D15R3 | 36-75 | 30 | 242 | ±15 | ±333 | 86 | ±220 |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Types | 2:1 | ||||
Filter | Pi TYPE |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | Full load@Vin(nom.) | ±2 | % | ||
Short Circuit Protection | Hiccup, automatic recovery | ||||
Line Regulation | ± 0.5 | % | |||
Load Regulation | Single Dual (Balance Load) | ± 0.5 ±1.0 | % | ||
Cross Regulation | Dual (25% to 100%) | ±5 | % | ||
Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
Ripple & Noise | Output >15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | ||
Transient response setting time | 25% load step change | 300 | us |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Voltage | 1500 | Vdc | |||
Isolation Resistance | 500Vdc | 1000 | MΩ | ||
Switching Frequency | 300 | KHz | |||
Operating Temperature | With derating | -40 | +87 | ℃ | |
Storage Temperature | -55 | +125 | ℃ | ||
Humidity | Non Condensing | 5 | 95 | % | |
Cooling | Natural Convection (20LFM) | ||||
Case Material | Nickel Coated With Non-Conductive Base | ||||
MTBF | MIL-HDBK-217F@25℃ | 3.342x106 | Hours | ||
Weight | 32.6 | g | |||

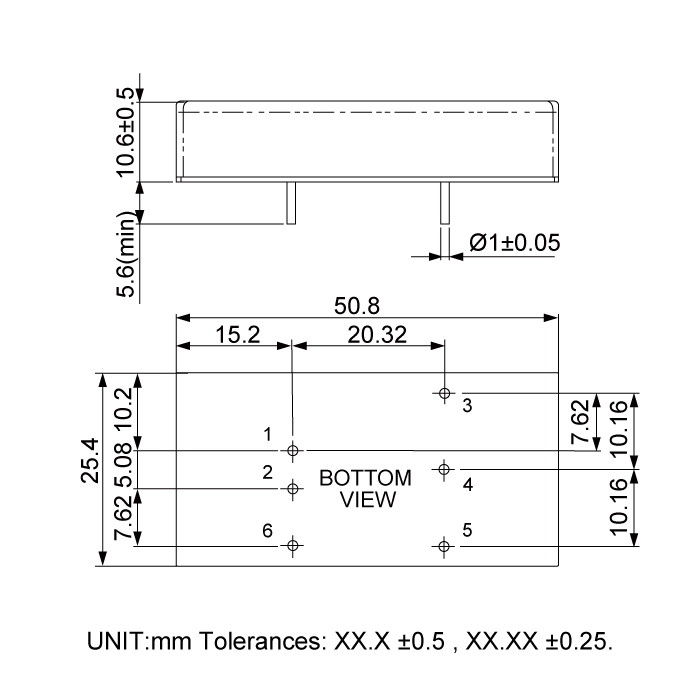

Dimensions | 50.8 x 25.4 x 10.6 | mm |
Files Download 61D-R3-Series.pdf
