01D-2A 系列 非隔離 穩壓 3.6~30瓦 POL 直流對直流電源轉換器

狀態:
數量:
  • 01D-2A 系列

  • YDS

功能&特點


  • 3PIN SIP 包裝。

  • 腳位兼容線性穩壓器 LM78XX。

  • 效率高達96%(無隔離/不需散熱片)。

  • 提供客製化。

  • 包裝材質符合 UL94V-0。

  • 操作環境溫度:-40°C 至 +82°C。

  • 產品保固3年。

  • 短路保護。

  • 寬電壓輸入(4.75~36VDC)。





Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input Range Output Voltage Output Current Efficiency
Vdc Vdc mA Min. Vin (%) Max. Vin (%)
01D-1R8-2A 4.75-36 1.8 2000 89 80
01D-2R5-2A 4.75-36 2.5 2000 90 82
01D-3R3-2A 4.75-36 3.3 2000 90 84
01D-05-2A 6.5-36 5.0 2000 93 89
01D-6R5-2A 9.0-36 6.5 2000 93 91
01D-09-2A 12-36 9.0 2000 94 90
01D-12-2A 15-36 12 2000 95 93
01D-15-2A 18-36 15 2000 96 94


Input Specifications


Parameters Conditions Min Typ Max Units
Input Voltage Range See table 4.75 24 36 V
Internal Input Filter Capacitors   10   uF
No Load Input Current Vin = 24V   15 20 mA


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance       ±3 %
Short Circuit Protection Hiccup, automatic recovery
Line Regulation Vin = min to max at full load   ±0.5   %
Load Regulation 10% To 100% F.L   ±0.5   %
Current Limit Duty = 40%   325   %
Ripple & Noise
(without Output Capacitor)
100% F.L BW = 20MHz     100 mVp-p
Transient response setting time 25% load step change   350   us
Capacitive load ESR > 1mohm     900 uF


General Specifications


Parameters Conditions Min Typ Max Units
Switching Frequency     500   KHz
Operating Temperature With derating -40   +82
Storage Temperature   -55   +125
Humidity Non Condensing     95 %
Cooling Natural Convection (20LFM)
Case material Non-Conductive Black Plastic
Weight     4.0   g
Dimensions   11.5 x 8.5 x 17.5 mm
MTBF (+25℃) using
MIL-HDBK 217F
1630 x 103 hours

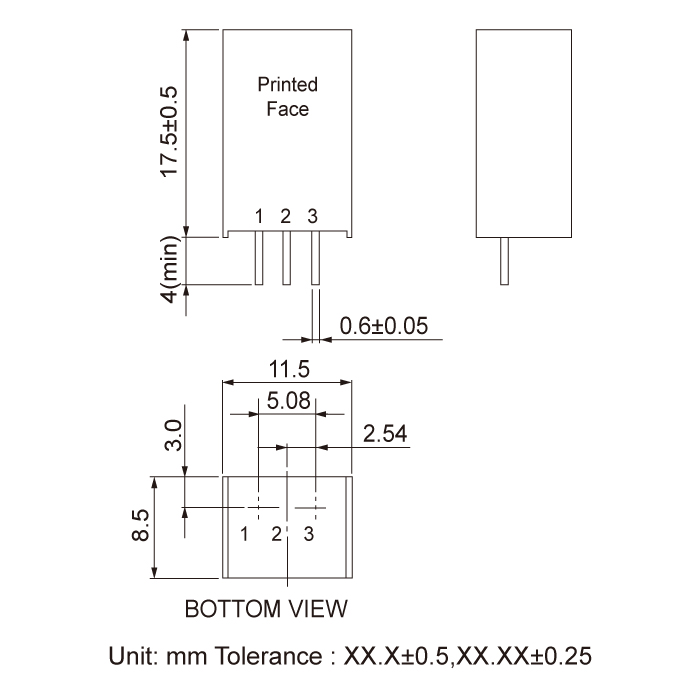

Dimension


01D-2A



 Files Download       01D-2A-Series.pdf
