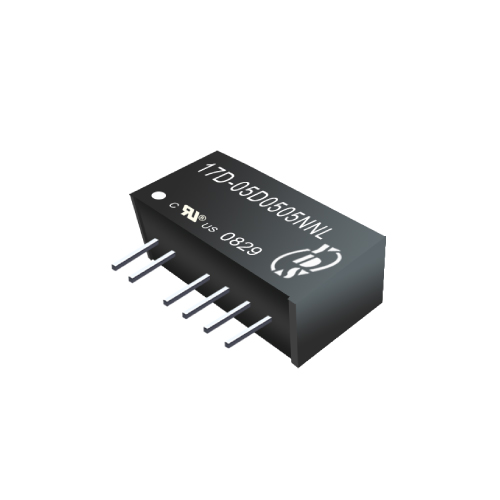

17D 系列 1瓦 1KV隔離電壓 直流對直流電源轉換器

功能&特點

• 7PIN SIP 包裝。

• 效率高達85%。

• 非穩壓輸出類型。

• 內部為SMD結構。

• 不需外部零組件。

• 操作環境溫度：-40°C 至 +85°C。

• 工業標準引腳。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output2		Efficiency	Recognized By UL 60950-1
	Voltage (Vdc)	Current (mA)	% Typ
17D-XXDXX03NNL	3.3	150	70	17D-05D0505NNL 17D-05D0512NNL 17D-12D0512NNL 17D-12D1212NNL 17D-24D0505NNL 17D-24D2424NNL
17D-XXDXX05NNL	5	100	70
17D-XXDXX09NNL	9	56	70
17D-XXDXX12NNL	12	42	70
17D-XXDXX15NNL	15	34	70
17D-XXDXX24N2NL	24	21	70

Note:
1. "XX" Is Voltage: 03 ＝ 3.3Vdc, 05 = 5Vdc, 09 = 9Vdc, 12 = 12Vdc, 15 = 15Vdc, 24 = 24Vdc.
2. 3.3V for output only, not for input.
3. The input voltage increases, there will be an increase in efficiency.
4. Over 24Vdc input voltage or Output voltage, using the 2nd package.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo, Io Nom			±5	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Short Term			1	Sec
Line Regulation	For 1.0% OF Vin		1.2		%
Load Regulation	3.3V, 5V (10% To 100% F.L)			15	%
Load Regulation	9V, 12V, 15V (10% To 100% F.L)			10	%
Ripple & Noise	BW = DC To 20MHz			100	mVp-p
Transient Response Setting Time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominalinput		100		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	DAP
MTBF	MIL-HDBK-217F @25℃	3500000			Hours
Weight		2.1 or 2.7			g
Dimensions		19.5 x 6.0 x 10.0			mm
Dimensions		19.5 x 7.1 x 10.0			mm

Dimension
