GB040系列 40瓦 3KVac隔離電壓 雙/三輸出 交流對直流電源轉換器

狀態:
數量:
  • GB040 系列

  • YDS

功能&特點


  • 通用輸入電壓 90~264VAC。

  • 效率高達80%(標準值)。

  • 短路/過載/過壓保護。

  • 內置輸入濾波器。

  • 產品保固3年。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output Voltage Output Current(A) Voltage Accuracy Line Reg. Load Reg. Efficiency
Convection cooled Max 18 CFM
(V) MIN RATED MAX (%) (%) (%) (%)
GB040-D0512 5(Vo1) 0.64 3.2 5.0 ±3 ±1 ±3 79
12(Vo2) 0.4 2.0 2.5 ±5 ±2 ±5
GB040-D0524 5(Vo1) 0.4 3.2 5.0 ±3 ±1 ±3 80
24(Vo2) 0.2 1.0 1.5 ±5 ±2 ±5
GB040-T051205 5(Vo1) 0.4 3.0 5.0 ±3 ±1 ±3 75
12(Vo2) 0.2 2.0 2.5 ±5 ±2 ±5
-5(Vo3) 0 0.3 0.5 ±5 ±1 ±5
GB040-T051212 5(Vo1) 0.4 3.0 5.0 ±3 ±1 ±3 75
12(Vo2) 0.2 2.0 2.5 ±5 ±2 ±5
-12(Vo3) 0 0.3 0.5 ±5 ±1 ±5
GB040-T051515 5(Vo1) 0.4 3.0 5.0 ±3 ±1 ±3 75
15(Vo2) 0.2 2.0 2.5 ±5 ±2 ±5
-15(Vo3) 0 0.3 0.5 ±5 ±1 ±5
GB040-T052412 5(Vo1) 0.4 3.0 5.0 ±3 ±1 ±3 75
24(Vo2) 0.2 2.0 2.5 ±5 ±2 ±5
-12(Vo3) 0 0.3 0.5 ±5 ±1 ±5
GB040-T052405 5(Vo1) 0.4 3.0 5.0 ±3 ±1 ±3 75
24(Vo2) 0.2 1.0 1.5 ±5 ±2 ±5
-5(Vo3) 0 0.3 0.5 ±5 ±1 ±5
GB040-T030512 3.3(Vo1) 0.4 5.0 7.0 ±3 ±1 ±3 70
5(Vo2) 0.2 2.0 3.5 ±5 ±2 ±5
-12(Vo3) 0 0.3 0.5 ±5 ±1 ±5


Input Specifications


Parameters Conditions Min Typ Max Units
Rated Input Voltage Io nom   100 ~ 240   Vac
Voltage Range Io nom 90   264 Vac
Frequency   47 50/60 63 Hz
Inrush Current At 100Vac     20 A
At 240Vac     40 A
Input Fuse VDE/UL/CCC  FUSE 2.5A/250V


Output Specifications


Parameters Conditions Min Typ Max Units
Output Voltage Accuracy Vi nom, Io nom(Full load) See models list
Minimum Load Vi nom See models list
Protection Over Load Above 110% rated output power
Protection type:
Recovers automatically after fault condition is removed
Over Voltage(Main Output) 120%-150% rated output Voltage
Protection type: Shut off o/p voltage, re-power on to recover
Short circuit Recovers automatically after fault condition is removed
Ripple & Noise Vi nom, Io nom
BW=20MHz
Main output     100 mVp-p
Supplement Output     150 mVp-p

Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.



General Specifications


Parameters Conditions Min Typ Max Units
Switching Frequency Vi nom, Io nom   65   KHz
Isolation Voltage Input / Output 3KVac / 5mA / 5Secs
Isolation Resistance Input / Output, @500 Vdc 100
Operating Temperature Operating at Vi nom, Io nom -20   +70
Derating Vi nom,Io nom+51 to 71℃     2 %/℃
Storage Temperature Non Operational -40   +85
Relative Humidity Vi nom, Io nom     95 % RH
Dimension L101.60 x W50.80 x H31.0
Cooling Free air convection

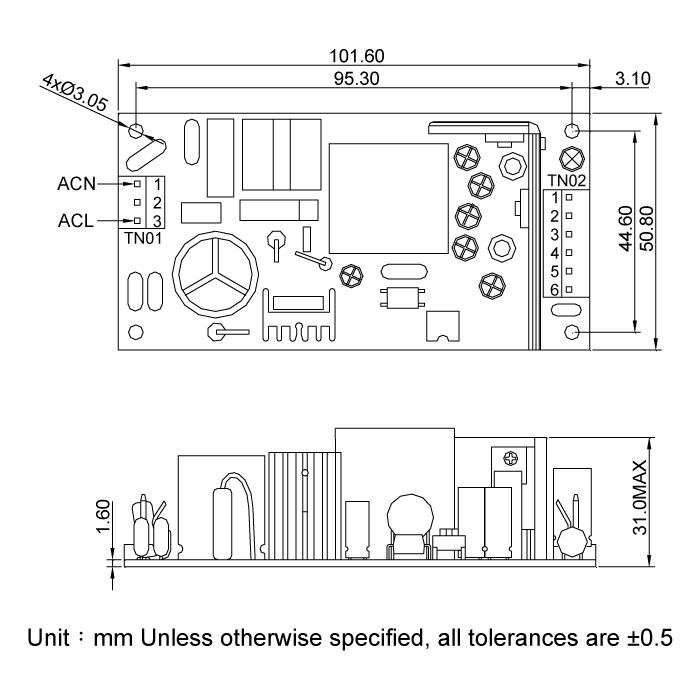

Dimension



GB040




 Files Download       GB040-Series.pdf
