61DW 系列 10瓦 1.5KV隔離電壓 4:1寬輸入 直流對直流電源轉換器

功能&特點

• 10瓦包裝。

• 寬輸入4:1電壓範圍。

• 100%高溫預燒測試。

• 效率高達85%。

• 可提供客製化。

• 符合UL94V-0規範包裝材質。

• 操作環境溫度:-40°C 至 +87°C。

• 產品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency	Capacitor Load
	Vdc	No-Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP	uF TYP
61DW-24S05RNL	9-36	25	508	5	2000	82	3300
61DW-24S09RNL	9-36	25	502	9	1111	83	680
61DW-24S12RNL	9-36	25	490	12	833	85	680
61DW-24S15RNL	9-36	25	490	15	666	85	470
61DW-24D05RNL	9-36	25	508	±5	±1000	82	±2200
61DW-24D09RNL	9-36	25	502	±9	±555	83	±470
61DW-24D12RNL	9-36	25	490	±12	±416	85	±470
61DW-24D15RNL	9-36	25	490	±15	±333	85	±330
61DW-48S05RNL	18-72	20	254	5	2000	82	1000
61DW-48S09RNL	18-72	20	251	9	1111	83	680
61DW-48S12RNL	18-72	20	245	12	833	85	680
61DW-48S15RNL	18-72	20	245	15	666	85	470
61DW-48D05RNL	18-72	20	254	±5	±1000	82	±2200
61DW-48D09RNL	18-72	20	251	±9	±555	83	±470
61DW-48D12RNL	18-72	20	245	±12	±416	85	±470
61DW-48D15RNL	18-72	20	245	±15	±333	85	±330

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				4:1
Filter	Pi TYPE

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			±2	%
Short Circuit Protection	Hiccup, automatic recovery
Line Regulation				±0.5	%
Load Regulation	Single (25% to 100%)			±0.5	%
Load Regulation	Dual (25% to 100%,Balance Load)			±2.0	%
Cross Regulation	Dual (25% to 100%)			±5.0	%
Ripple & Noise	BW=DC To 20MHz			100	mVp-p
Transient response setting time	25% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			300		KHz
Operating Temperature	With derating	-40		+87	℃
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel Coated With Non-Conductive Base
Weight		36.5			g
Dimensions		50.8 x 25.4 x 10.6			mm
Potting Material		Epoxy (UL94V-0 rated)

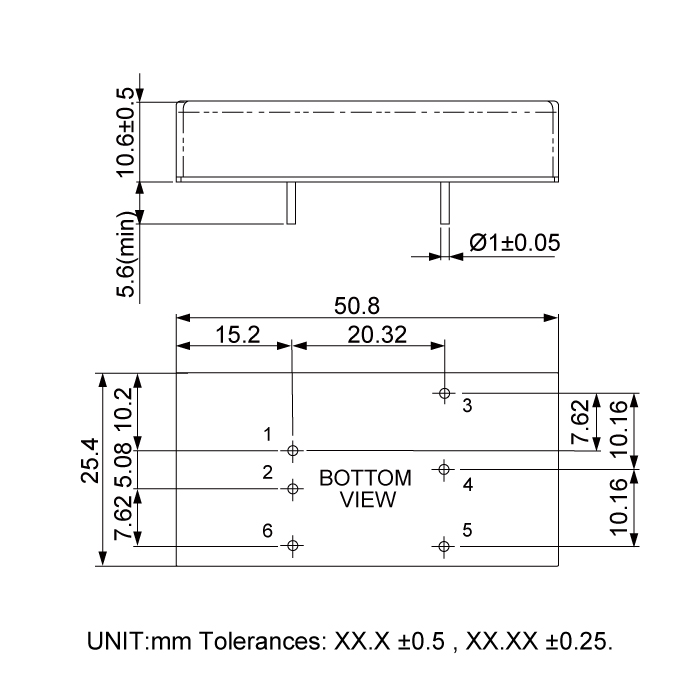

Dimension

 Files Download       61DW-Series.pdf

Certification
