61DW-R3 系列 10瓦 1.5KV隔離電壓 4:1寬輸入 直流對直流電源轉換器

功能&特點

• 10瓦 DIL包裝。

• 寬輸入4:1電壓範圍。

• 100%高溫預燒測試。

• 效率高達88%。

• 可提供客製化。

• 具備遙控開關功能。

• 符合UL94V-0規範包裝材質。

• 操作環境溫度:-40°C 至 +87°C。

• 產品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency	Capacitor Load
	Vdc	No-Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP	uF Max
61DW-24S03R3	9-36	60	497	3.3	3000	83	3300
61DW-24S05R3	9-36	60	484	5	2000	86	3300
61DW-24S12R3	9-36	40	474	12	835	88	330
61DW-24S15R3	9-36	20	483	15	665	86	330
61DW-24D05R3	9-36	70	502	±5	±1000	83	±2000
61DW-24D12R3	9-36	40	486	±12	±418	86	±330
61DW-24D15R3	9-36	40	484	±15	±333	86	±330
61DW-48S03R3	18-75	30	248	3.3	3000	83	5600
61DW-48S05R3	18-75	30	245	5	2000	85	5600
61DW-48S12R3	18-75	30	243	12	835	86	680
61DW-48S15R3	18-75	30	242	15	665	86	680
61DW-48D05R3	18-75	30	251	±5	±1000	83	±3300
61DW-48D12R3	18-75	30	243	±12	±418	86	±220
61DW-48D15R3	18-75	30	242	±15	±333	86	±220

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				4:1
Filter	Pi TYPE

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			±2	%
Short Circuit Protection	Hiccup, automatic recovery
Line Regulation				±0.5	%
Load Regulation	Single Dual (Balance Load)			±0.5 ±1.0	%
Cross Regulation	Dual (25% to 100% Load)			±5	%
Ripple & Noise	Output:3-15V TYPES BW=DC To 20MHz			100	mVp-p
	Output >15V TYPES BW=DC To 20MHz			1% of Vout	mVp-p
Transient response setting time	25% load step change		300		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Voltage			1500		Vdc
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			300		KHz
Operating Temperature	With derating	-40		+87	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing	5		95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel coated copper with no-conductive base
MTBF	MIL-HDBK-217F@25℃	3.342x106			Hours
Weight		32.6			g
Dimensions		50.8 x 25.4 x 10.6			mm

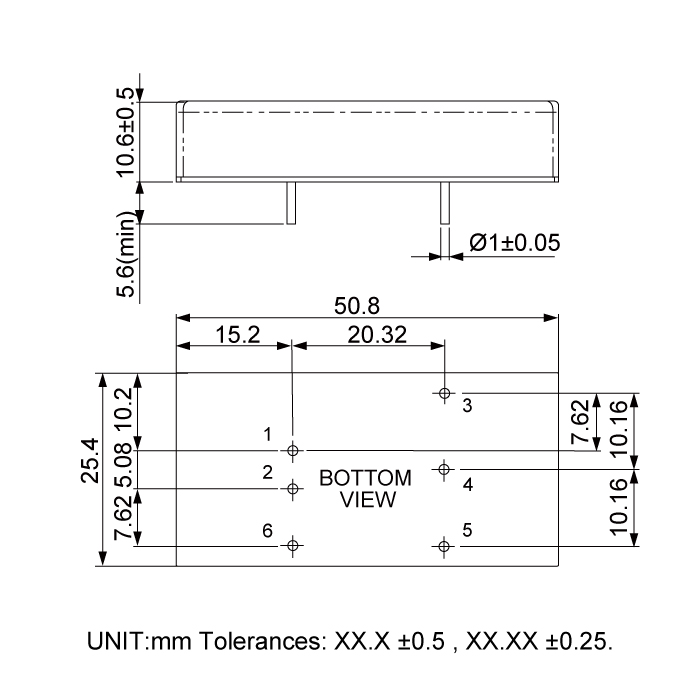

Dimension

 Files Download      61DW-R3-Series.pdf

Certification
