96F系列 100/1000 Base-T 4埠 DIP 網路濾波器

功能&特點

• 符合802.3和ANSI X3.263標準包括350uH OCL 8mA偏置電流。

---

Electrical Specifications@25°C; Operating Temperature 0°C to 70°C

Part Number	Turns Ratio (±5%)	LK (uH MAX)	Cw/w (pF MAX)	D.C.R (ΩMAX)	Insertion Loss (dB MAX)
	TX	100KHz/ 0.2V	100KHz/ 0.2V	------	1-100 MHz
96F-01NL	1CT:1CT	0.5	35	1.4	-1.0

Part Number	Return Loss (dB MIN)					Crosstalk (dB MIN)	Hipot Vrms MIN
	1-30 MHz	40 MHz	50 MHz	60-80 MHz	80-100 MHz	1-100 MHz
96F-01NL	-18	-14.4	-13.1	-12	-10	-30	1500

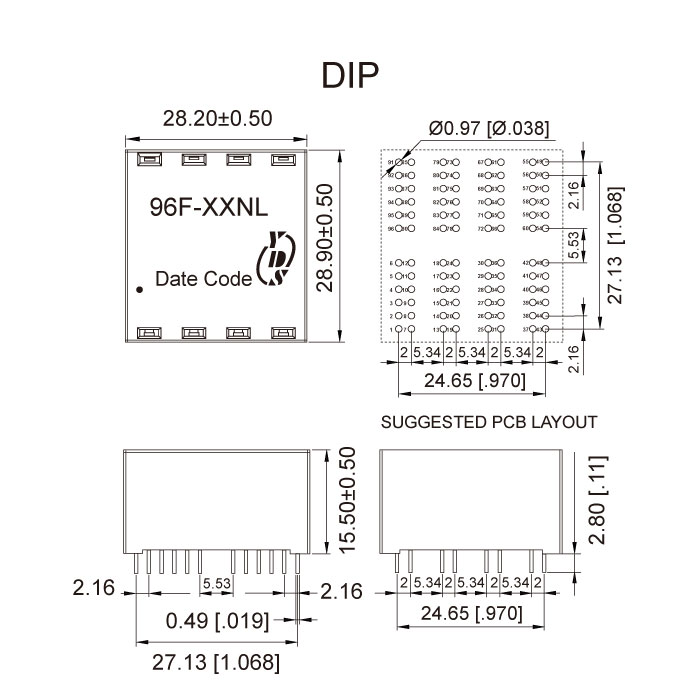

Dimension

 Files Download      96F Series.pdf
