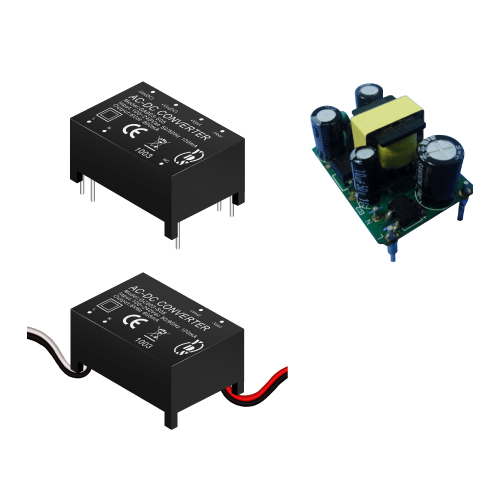

GA003/GB003/GC003系列 3瓦 3KVac隔離電壓 穩壓輸出 交流對直流電源轉換器

狀態:
數量:
  • GA003/GB003/GC003 系列

  • YDS

功能&特點


  • AC-DC 電源模組。

  • 通用輸入電壓90~264VAC。

  • 效率高達82%。

  • 短路/過載保護。

  • 產品保固3年。

  • 符合RoHS認證。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output Wattage Output Voltage Output Current Efficiency
(W) Vdc mA % (TYP)
GX003-S03(B) 2.64 3.3 800 70
GX003-S05(B) 3.0 5 600 72
GX003-S06(B) 3.0 6 500 72
GX003-S07(B) 3.0 7 425 72
GX003-S08(B) 3.0 8 375 75
GX003-S09(B) 3.0 9 333 75
GX003-S10(B) 3.0 10 300 78
GX003-S12(B) 3.0 12 250 78
GX003-S13(B) 3.0 13 230 78
GX003-S14(B) 3.0 14 215 78
GX003-S15(B) 3.0 15 200 79
GX003-S16(B) 3.2 16 200 79
GX003-S18(B) 3.0 18 167 80
GX003-S24(B) 3.0 24 125 80
GX003-S27(B) 3.0 27 110 80
GX003-S36(B) 3.0 36 83 82
GX003-S48(B) 3.0 48 62.5 82

Notes:
1."X" Represent module version
A: Represent unit with potting within a plastic enclosure;
B: Represent unit with open frame version without enclosure;
C: Represent unit with potting within a plastic enclosure wired
2.Suffix B=Refers to the appearance plus BASE,E.g:GA003-S05B,GA003-S12B (Only applicable to GA003 series)



Input Specifications



Parameters Conditions Min Typ Max Units
Rated Input Voltage Vo, Io nom   100 ~ 240   VAC
Input Voltage Range Vo, Io nom AC in 90   264 VAC
DC in 120   370 VDC
Line Frequency Vi nom. Io nom 47 50 / 60 63 Hz
Inrush Current Io nom Vi: 115VAC     10 A
Vi: 230VAC     18 A



Output Specifications



Parameters Conditions Min Typ Max Units
Voltage Accuracy For external circuit please refer to recommended circuit   ±1 ±3 %
Minimun Load Vi nom 0     %
Line Regulation Io nom, Vi min....Vi max     ±1 %
Load Regulation Vi nom, Io min....Io nom     ±2 %
Transient Recovery Time Vi nom, Io nom = I ← → 0.5 Io nom   300   uS
Ripple & Noise Vi nom, Io nom, BW=20MHz
(Tested as Figure2)
    100 mVp-p
Efficiency Vi nom, Io nom, Po / Pi Up to 82%,
See models list




General Specifications



Parameters Conditions Min Typ Max Units
Switching Frequency Vi nom, Io nom   65   KHz
Isolation Voltage Input / output 3.0KVac / 5mA / 5Secs
Isolation Resistance Input / output,@500Vdc 100
Ambient Temperature Operating at Vi nom, Io nom -20   +70
Derating Vi nom, Io nom +51 to 71℃     2 % / ℃
Case Temperature Operating at Vi nom, Io nom     +85
Storage Temperature Nom operational -40   +85
Relative Humidity Vi nom, Io nom     95 % RH
Safety Standards EN62368-1 approved
EMI Conduction & Radiation Compliance to EN55032
EMS Immunity Compliance to EN55024
Dimension GA003 / GC003 L 35.05 x W 25.40 x H 17.78
GB003 L 32.5 x W 23.0 x H 16.0
mm
Cooling Free air convection
Case Material   DAP UL 94V-0
Weight GA003 / GB003 / GC003 30g / 12g / 32g



Dimension


GABC003-01

GABC003-02

GABC003-03

GABC003-04




 Files Download       GA-B-C003-Series.pdf
