68D10 系列 10瓦 1.5KV隔離電壓 2:1寬輸入 直流對直流電源轉換器

功能&特點

• 10瓦 DIL 包裝。

• 寬輸入2:1電壓範圍。

• 100%高溫預燒測試。

• 高效率達87%。

• 可提供客製化。

• 具備遙控開關功能。

• 符合UL94V-0規範包裝材質。

• 操作環境溫度:-40°C 至 +84°C。

• 產品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency
	Vdc	No Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%Typ
68D10-12S03RNL	9-18	50	971	3.3	3000	85
68D10-12S05RNL	9-18	50	980	5	2000	85
68D10-12S12RNL	9-18	30	957	12	833	87
68D10-12S15RNL	9-18	30	963	15	670	87
68D10-12D05RNL	9-18	30	992	±5	±1000	84
68D10-12D12RNL	9-18	30	966	±12	± 420	87
68D10-12D15RNL	9-18	30	977	±15	± 340	87
68D10-24S03RNL	18-36	40	485	3.3	3000	85
68D10-24S05RNL	18-36	40	490	5	2000	85
68D10-24S12RNL	18-36	30	479	12	833	87
68D10-24S15RNL	18-36	30	481	15	670	87
68D10-24D05RNL	18-36	30	496	±5	±1000	84
68D10-24D12RNL	18-36	30	479	±12	±420	87
68D10-24D15RNL	18-36	30	483	±15	±340	87
68D10-48S03RNL	36-75	30	243	3.3	3000	85
68D10-48S05RNL	36-75	30	245	5	2000	85
68D10-48S12RNL	36-75	20	239	12	833	87
68D10-48S15RNL	36-75	20	241	15	670	87
68D10-48D05RNL	36-75	20	248	±5	±1000	84
68D10-48D12RNL	36-75	20	241	±12	± 420	87
68D10-48D15RNL	36-75	20	244	±15	± 340	87

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	PI Network

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			±2	%
Short Circuit Protection	Hiccup, automatic Recovery
Line Regulation				± 0.5	%
Load Regulation	Single Dual(Balance Load)			± 0.5 ± 0.5	%
Cross Regulation	Dual (25% To 100% Load)			±5	%
Ripple & Noise	Output:3-15V TYPES BW=DC To 20MHz			100	mVp-p
	Output > 15V TYPES BW=DC To 20MHz			1% of Vout	mVp-p
Transient response setting time	25% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Voltage			1500		Vdc
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			400		KHz
Operating Temperature	With derating	-40		+84	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel Coated Copper With Non-Conductive Base
MTBF	MIL-HDBK-217F@25℃	900000			Hours
Weight		17.5			g
Dimensions		31.60 x 20.10 x 10.00			mm

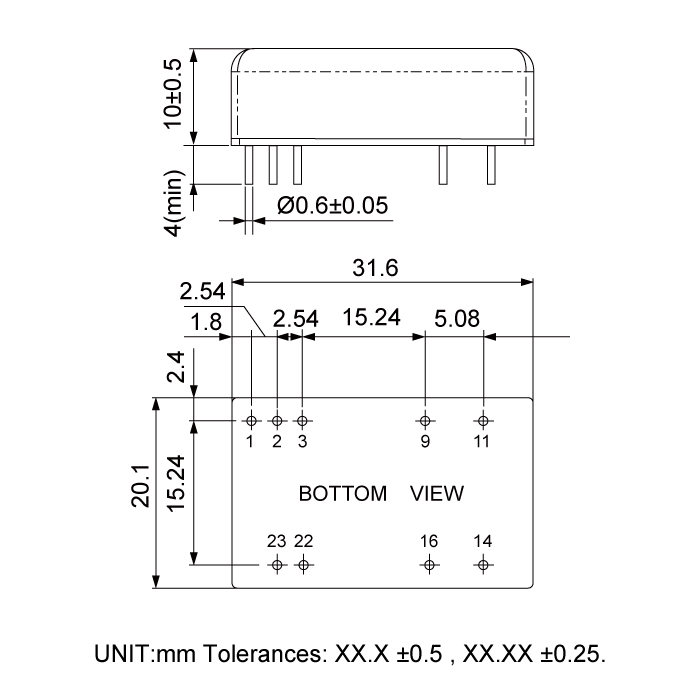

Dimension

 Files Download      68D10-Series.pdf

Certification
