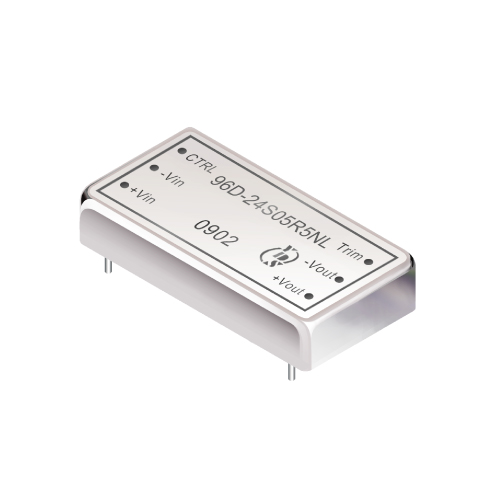

96D-R5 系列 30瓦 1.6KV隔離電壓 2:1寬輸入 直流對直流電源轉換器

狀態:
數量:
  • 96D-R5 系列

  • YDS

功能&特點


  • 30瓦 DIL 包裝。

  • 寬輸入2:1電壓範圍。

  • 100%高溫預燒測試。

  • 效率高達89%。

  • 可提供客製化。

  • 具備遙控開關功能。

  • 符合UL94V-0規範包裝材質。

  • 操作環境溫度:-40°C 至 +85°C。

  • 產品保固3年。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input Voltage Input Current Output Voltage Output Current Output Ripple & Noise Capacitor Load Max Efficiency
Vdc No-Load
(mA TYP)
Full Load
(mA TYP)
Vdc Full Load
(mA)
mVp-p uF Max %TYP
96D-12S03R5NL 9-18 120 2398 3.3 7500 100 20000 86
96D-12S05R5NL 9-18 130 2841 5.0 6000 100 14400 88
96D-12S12R5NL 9-18 50 2809 12 2500 100 3000 89
96D-12S15R5NL 9-18 50 2809 15 2000 100 2000 89
96D-24S03R5NL 18-36 70 1200 3.3 7500 100 20000 86
96D-24S05R5NL 18-36 80 1420 5.0 6000 100 14400 88
96D-24S12R5NL 18-36 30 1404 12 2500 100 3000 89
96D-24S15R5NL 18-36 30 1404 15 2000 100 2000 89
96D-48S03R5NL 36-72 40 600 3.3 7500 100 20000 86
96D-48S05R5NL 36-72 50 710 5.0 6000 100 14400 88
96D-48S12R5NL 36-72 30 702 12 2500 100 3000 89
96D-48S15R5NL 36-72 30 702 15 2000 100 2000 89
96D-12D12R5NL 9-18 60 2873 ±12 ±1250 100 ±2000 89
96D-12D15R5NL 9-18 60 2873 ±15 ±1000 100 ±1300 89
96D-24D12R5NL 18-36 30 1437 ±12 ±1250 100 ±2000 89
96D-24D15R5NL 18-36 30 1437 ±15 ±1000 100 ±1300 89
96D-48D12R5NL 36-72 30 718 ±12 ±1250 100 ±2000 89
96D-48D15R5NL 36-72 30 718 ±15 ±1000 100 ±1300 89

Note:
1. BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40ºC. (Ground fixed and controlled environment)
MIL-STD-217F Notice2 @Ta=25 ºC, Full load (Ground, Benign, controlled environment)
2. The ON/OFF control pin voltage is referred to -Input. (Leave open if not used.)



Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Types       2:1
Filter Pi TYPE
Input surge voltage
100mS max
12V, 24V input
48V input
  50
100
  Vdc
Vdc
Input reflected ripple current Nominal Vin and full load   20   mAp-p
Start up time Nominal Vin and
constant resistive load
Power up   40   mS
Remote ON/OFF   30   mS
Start-up voltage 12V input   9   Vdc
24V input   18   Vdc
48V input   36   Vdc
Shutdown voltage 12V input   8   Vdc
24V input   17   Vdc
48V input   35   Vdc
Protection Fuse Recommended
Remote ON/OFF
(Note 2)
DC-DC ON OPEN
DC-DC OFF Short to ground
Input current of Remote control pin Nominal Vin -0.5mA ~ +0.5mA
Remote off state input current Nominal Vin 3mA


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance Full load@Vin(nom.)     ±2 %
Short Circuit Protection Hiccup, automatic recovery
Over Load Protection nominal input   150   %
Over Voltage Protection
(Zener Diode Clamp)
3.3V Output
5.0V Output
12V Output
15V Output
  3.9
6.2
15 & ±15
18 & ±18
  V
V
V
V
Line Regulation LL to HL at Full Load     ± 0.5 %
Load Regulation Single     ± 0.5 %
Load Regulation Dual, Balance Load,
25% to 100% load
    ±1.0 %
Cross Regulation Dual (25% to 100% Load)     ±5.0 %
Ripple & Noise 20MHz bandwidth     100 mVp-p
Transient response recovery time 25% load step change   250 350 us
External Trim Adj. Range     ±10% of Output


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Switching Frequency     300   KHz
Isolation Capacitance     2200   pF
Case Material Nickel coated copper with no-conductive base
Potting material   Epoxy (UL94-V0)
Isolation Voltage For 10 seconds     1600 VDC
Design meets safety IEC60950-1, UL60950-1, EN60950-1
Dimensions -R5NL
-R5HSNL
50.8X 25.4 X 10.6
50.8X 25.4 X 15.3
mm
mm
Weight   36.5 g
MTBF (Note 1) BELLCORE-TR-NWT-000332
MIL-HDBK-217F
3.163 x 106
4.347 x 105
hrs
hrs


Environmental Specifications


Parameters Conditions Min Typ Max Units
Operating Temperature   -40   +85
Maximum case temperature       +105
Storage Temperature   -55   +125
Thermal impedance
@20LFM
Convection   12   ℃/Watt
Convection with heat-sink   10   ℃/Watt
Thermal shock   MIL-STD-810F
Vibration   MIL-STD-810F
Relative humidity   5% to 95% RH



Dimension

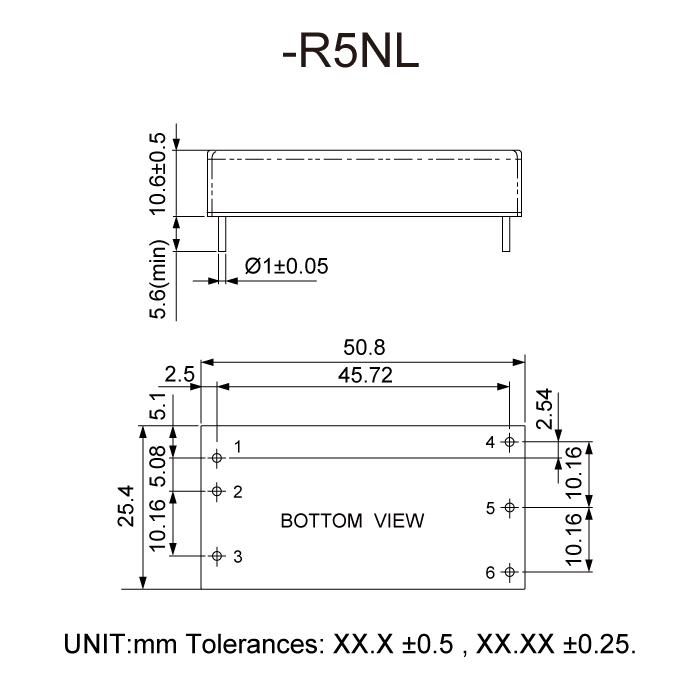

96D-R5-01

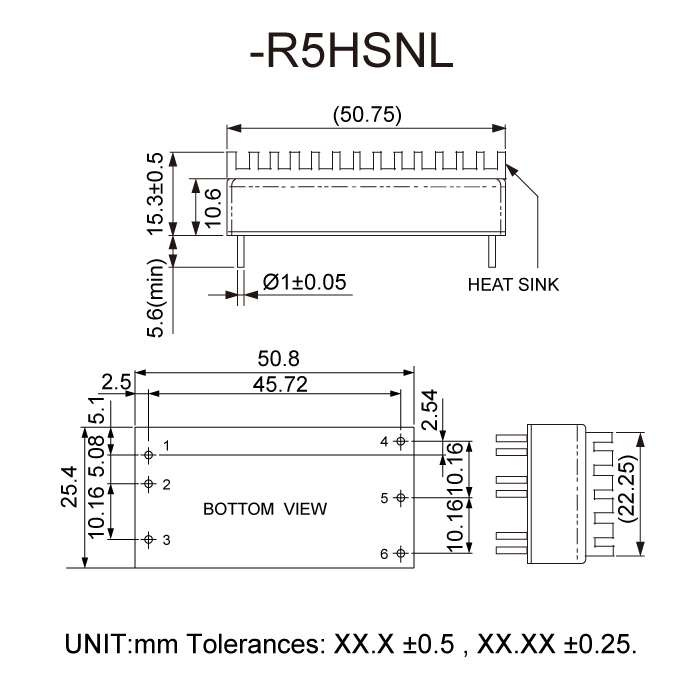

96D-R5-02




 Files Download        96D-R5-Series.pdf
