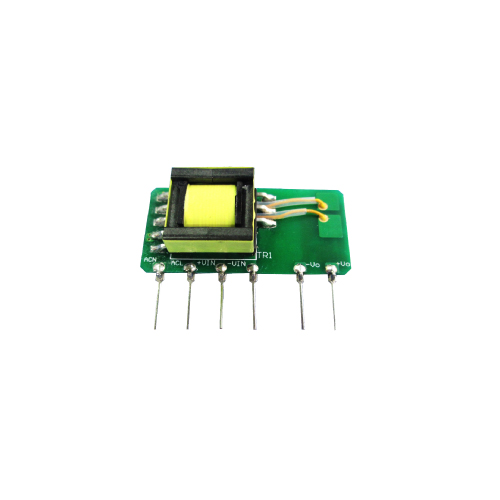

GS1 系列
YDS
通用輸入電壓 85~305VAC。
效率高達70%。
短路/過載保護。
超小尺寸。
產品保固3年。
符合RoHS認證。
Part Number | Output Wattage | Output Voltage | Output Current | Efficiency | Max. Capacitive Load |
---|---|---|---|---|---|
(W) | (VDC) | (mA) | (TYP %) | (μF) | |
GS1-S05(F) | 1 | 5 | 200 | 66 | 600 |
GS1-S09(F) | 1 | 9 | 111 | 67 | 470 |
GS1-S12(F) | 1 | 12 | 83 | 69 | 220 |
GS1-S15(F) | 1 | 15 | 67 | 70 | 180 |
GS1-S24(F) | 1 | 24 | 42 | 68 | 120 |
Note:

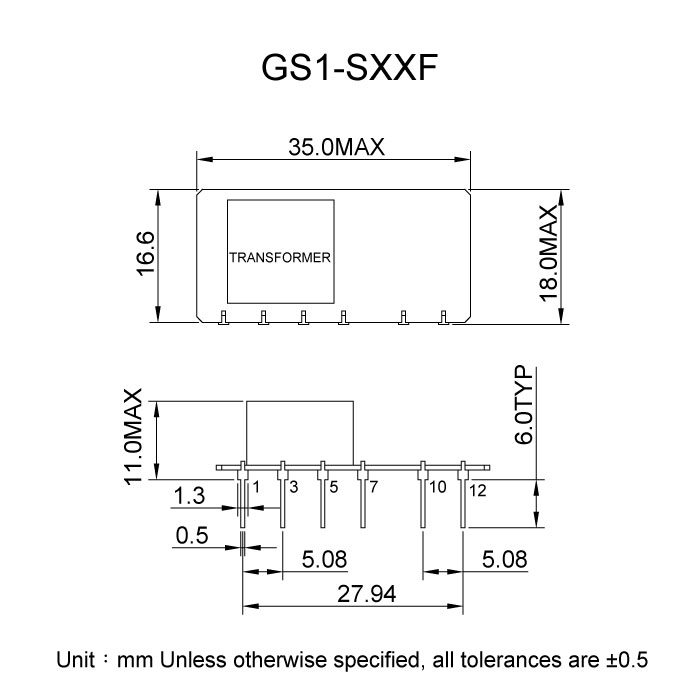

add suffix“F”for 90°bending Products. For example: GS1-S05F, GS1-S12F
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Rated Input Voltage | Vo, Io nom | 100 ~ 277 | Vac | |||
Voltage Range | Vo, Io nom | AC in | 85 | 305 | Vac | |
DC in | 70 | 430 | Vdc | |||
Line Frequency | Vi nom, Io nom | 47 | 63 | Hz | ||
Input Current | Io nom | Vi: 115VAC | 0.06 | A | ||
Vi: 230VAC | 0.03 | A | ||||
Inrush Current | Io nom | Vi: 115VAC | 10 | A | ||
Vi: 230VAC | 15 | A |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Output Voltage Accuracy | Vi nom, Io nom | ±5 | % | ||
Minimum Load | Vi nom | 0 | % | ||
Line Regulation | Io nom, Vi min…Vi max | ±1.5 | % | ||
Load Regulation | 5%~100% Load | ±2.5 | % | ||
No Load | 0.5 | W | |||
Ripple & Noise | Vi nom, Io nom, BW=20MHz | 50 | 120 | mVp-p | |
Protection | Over Load | Above 110% rated output power | |||
Protection type: Recovers automatically after fault condition is removed | |||||
Short circuit | Recovers automatically after fault condition is removed |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Switching Frequency | Vi nom, Io nom | 60 | KHz | ||
Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
Operating Temperature | Refer to Temperature Derating Graph | -40 | +85 | ℃ | |
Storage Temperature | Non Operational | -40 | +105 | ℃ | |
Relative Humidity | Vi nom, Io nom | 85 | % RH | ||
Safety Standards | Design refer to UL60950-1,IEC60950-1 | ||||
EMI Conduction & Radiation | EN55032,CLASS B(See Fig. 1 for recommended circuit) | ||||
EMS Immunity | EN61000 (See Fig. 1 for recommended circuit) | ||||

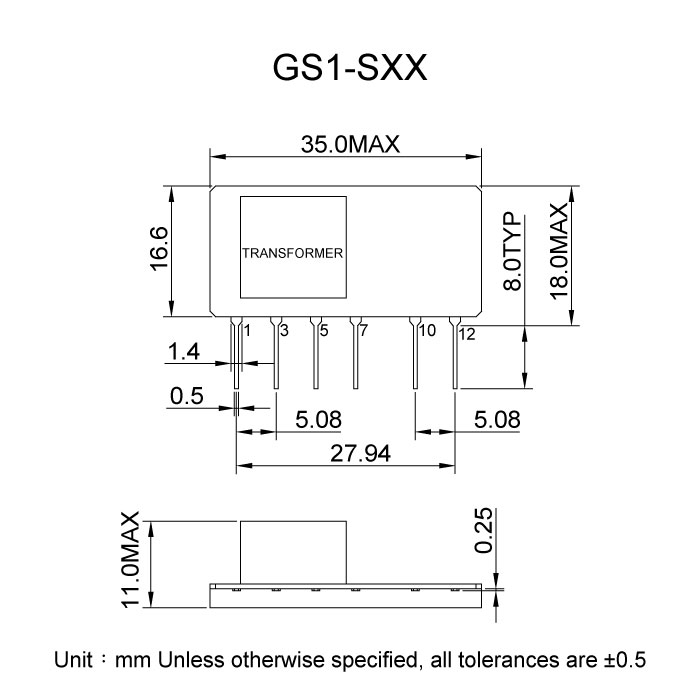

Dimension | L35.0 x W11.0 x H18.0 mm | ||||
Cooling | Free air convection |
Files Download GS1-Series.pdf
