02D-6A 系列
YDS
SIP 包裝。
高效率–91% @5.0Vin 3.3V,FULL LOAD / 93% @12.0Vin 3.3V,FULL LOAD。
提供客製化。
操作環境溫度:-40°C 至 +85°C。
產品3年保固。
輸入電壓鎖定。
輸入範圍 2.4VDC 至 5.5VDC, 8.3VDC 至 14VDC。
輸出電流高達6A。
輸出電壓可從0.75VDC至3.3VDC, 0.75VDC至5VDC ,可通過外部電阻。
Part Number | ON / OFF Logic | Input Range | Output Voltage | Output Current | Efficiency (%) 3.3Vdc @6A | |
---|---|---|---|---|---|---|
Min. Load | Max. Load | |||||
02D-05-06S | Positive (option) Negative (standard) | 2.4 ~ 5.5 Vdc Vin (min) = Vo (Set) +0.5 | 0.75 ~ 3.3Vdc | 0A | 6A | 91% @5.0Vin |
02D-12-06S | Vo (set) < 3.63V Vin=8.3~14Vdc Vo (set) > 3.63V Vin=8.3~13.2Vdc | 0.75 ~ 5.0Vdc | 93% @12Vin |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | 05 Series Vo (set) | 2.4 | 5 | 5.5 | Vdc |
12 Series Vo (set) | 8.3 | 12 | 14 | ||
Input Current | Vin = Vin (min); Io = Io (max) | 6 | A | ||
Input Filter (Note4) | C filter | ||||
No Load Current | Vo (set) = 0.75 Vdc | 20 @Vin = 5 | mA | ||
Vo (set) = 0.75 Vdc | 19 @Vin = 12 | ||||
Vo (set) = 3.3 Vdc | 45 @Vin = 5 | ||||
Vo (set) = 5.0 Vdc | 100 @Vin = 12 | ||||
Under Voltage Lockout | Start-up Voltage | 2.2@Vin = 5 | V | ||
4.5@Vin = 12 | |||||
Shutdown Voltage | 2.0 @Vin = 5 | ||||
3.8 @Vin = 12 |
Input reflected ripple current 5 ~ 20MHz, 1uH source impedance: 35mAp-p
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Output current | 6 | A | ||||
Voltage Tolerance | Full load and Vin (min) | ±2 | % | |||
Minimum load | 0 | A | ||||
Line Regulation | Vin = Vin (min) to Vin (max) at Full Load | ±0.3 | % | |||
Load Regulation | No Load to Full Load | ±0.5 | % | |||
Ripple & Noise (Note2) | 20MHz bandwidth | 60 | mVp-p | |||
Dynamic load response (Note 2) | △Io / △t = 2.5A/uS, Vin (nom) | Peak deviation | 200 | mV | ||
Load change step (25% to 100% or 100% to 25% of Io (max)) | Setting time (Vo < 10% peak deviation) | 25 | uS | |||
Dynamic load Response (Note 3) | △Io / △t = 2.5A/uS, Vin (nom) | Peak deviation | 50 | mV | ||
Load change step (25% to 100% or 100% to 25% of Io (max)) | Setting time (Vo < 10% peak deviation) | 50 | uS | |||
Output Current Limit | 220 | % | ||||
Output short-circuit current | Hiccup, automatic recovery | |||||
External Load Capacitance | ESR ≧ 1mΩ | 1000 | uF | |||
ESR ≧ 10mΩ | 3000 | uF | ||||
Output Voltage Overshoot-Startup | Vin = Vin (min) to Vin (max); F.L | 1 | % | |||
Voltage Adjustability (see fig.1) | 05 Series | 0.7525 | 3.3 @Vin = 5 | V | ||
12 Series | 0.7525 | 5.0 @Vin = 12 | V |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Switching Frequency | 300 | KHz | |||
Isolation voltage | None | ||||
Efficiency | See table | ||||

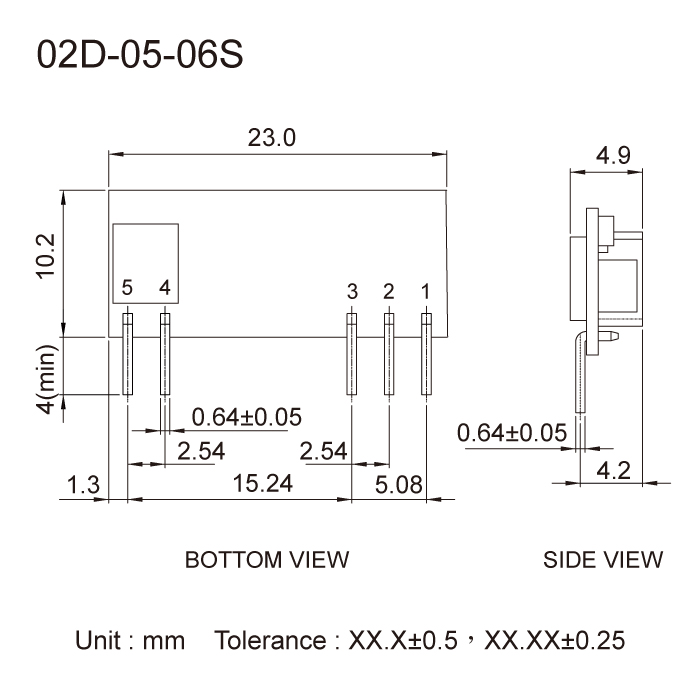

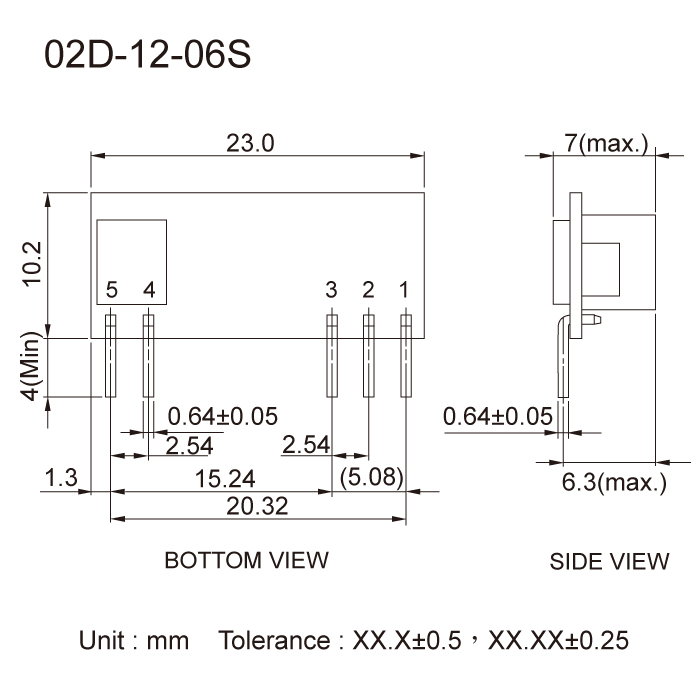

Dimensions | As figure of marking and dimension | mm | |||
Weight | 2.8 | g | |||
MTBF (Note 1) | MIL-HDBK-217F | 3.247 x 106 | hrs |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Operating temperature range | With derating | -40 | +85 | ℃ | |
Storage temperature range | With derating | -55 | +125 | ℃ | |
Thermal shock | MIL-STD-810F | ||||
Over temperature protection | +135 | ℃ |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Remote ON/OFF | |||||
Positive logic (option) | ON = (Vin-4) < Vr < Vin (Max) | 10 | uA | ||
OFF = 0V < Vr < 0.3V | 1 | mA | |||
Negative logic (standard) | ON = 0V < Vr < 0.3V@IIN | 10 | uA | ||
OFF = 1.5V < Vr < Vin (Max) @IIN | 1 | mA | |||
Input current of Remote control pin | 0.01 | 1.0 | mA | ||
Remote off state input current Nominal Vin | 5 | mA | |||
Rise time (Time for Vo to rise from 10% to 90% of Vo (set)) | 6 | ms | |||
Turn-on delay time | Case 1 (Note 5) | 3 | ms | ||
Case 2 (Note 6) | 3 | ms |
Files Download 02D-6A-Series.pdf
