13DS4 系列 1瓦 1KV隔離電壓 SMD 直流對直流電源轉換器

功能&特點

• 極小型封裝。

• 22PIN SMD 包裝。

• 效率高達80%。

• 非穩壓輸出類型。

• 高功率密度。

• 不需外部零組件。

• 操作環境溫度：-40°C 至 +85°C

• 工業標準引腳。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency	Package Style
	Vdc	mA	% TYP
13DS4-XXS03NNL	3.3	303	65	1
13DS4-XXS05NNL	5	200	70	1
13DS4-XXS09NNL	9	112	75	1
13DS4-XXS12N2NL	12	84	78	2
13DS4-XXS15N2NL	15	67	80	2
13DS4-XXD03NNL	±3.3	±150	65	1
13DS4-XXD05NNL	±5	±100	70	1
13DS4-XXD09NNL	±9	±56	75	1
13DS4-XXD12N2NL	±12	±42	78	2
13DS4-XXD15N2NL	±15	±34	80	2

Note:
1. "XX" Is Input Voltage: 03 = 3.3Vdc, 05 = 5Vdc, 09 = 9Vdc, 12 = 12Vdc, 15 = 15Vdc.
2. Over 12Vdc,15Vdc input voltage, using the 2nd package.
3. The input voltage increases, there will be an increase in efficiency.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo, Io Nom			±10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Short Term			1	Sec
Line Regulation	For 1.0% OF Vin		1.2		%
Load Regulation	3.3V (10% To 100% F.L)		15		%
Load Regulation	5V, 9V (10% To 100% F.L)			12 & 8.0	%
Load Regulation	12V, 15V (10% To 100% F.L)			8.5 & 7.0	%
Ripple & Noise	BW = DC To 20MHz			75	mVp-p
Transient Response Setting Time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F @25℃	3500000			Hours
Weight	Package1 or Package2		1.36/1.5		g

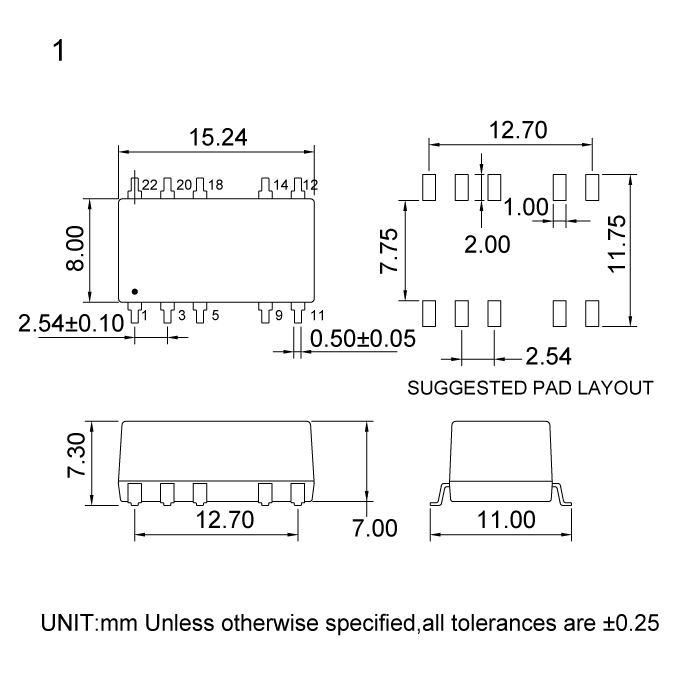

Dimensions	Package 1	15.24 x 8.0 x 7.30			mm

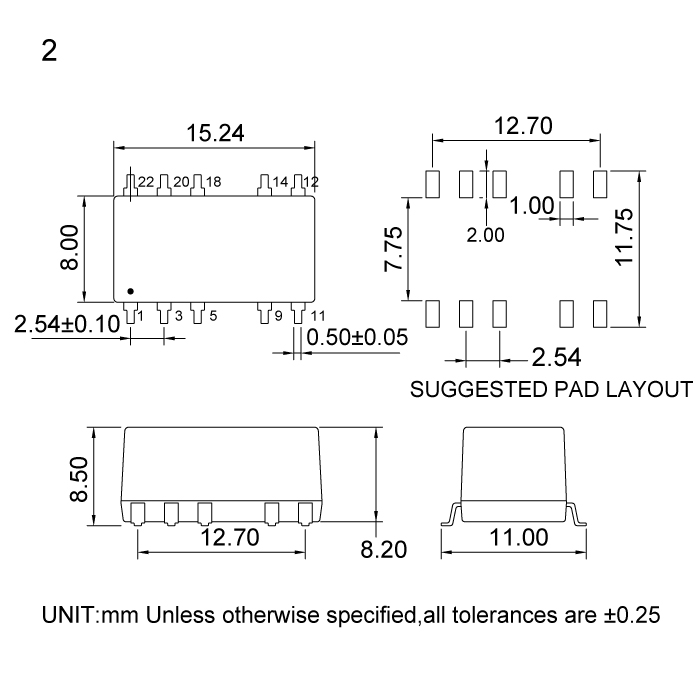

Dimensions	Package 2	15.24 x 8.0 x 8.50			mm

Dimension
