GA5E 系列
YDS
超小巧尺寸1.0" x 1.0" x 0.64"包裝。
通用輸入電壓 90~264VAC。
效率高達85%。
保護：短路/過載/過壓。
塑膠外殼全封裝。
通過國際安規UL/cUL/IEC/EN60950-1,62368-1認證。
通過EMI標準 EN55032:2015認證。
通過EMS標準 EN55024:2010認證。
產品保固3年。
符合RoHS認證。
YDS GA5E"系列新推出的GA5E系列產品是目前市場上超小型，尺寸最小的5W、1”x 1”AC-DC模塊轉換器。本產品無須外接任何元件便可符合EN55032-B的EMC標準。
產品的特點為DIL-5PIN的超小封裝，僅占用PCB上25.4 x 25.4 x16.1毫米的小空間，這是低成本和節省空間的最佳選擇，並提供通用輸入電壓90〜264VAC，適合全球使用。
高達85％的完美效率，工作溫度可以達到+ 50°C同時提供100%輸出，且工作溫度高於+ 70°C時，輸出功率仍可以保持在60％以上。
該系列是適用於工業控制、電力、儀表與通信、醫療、鐵路和IGBT等不同應用的最佳解決方案。 GA5E系列已通過CB報告完整的UL / IEC / EN60950-1和UL / IEC / EN62368-1認證，並且也已通過CE認證。
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency | Max. Capacitive Load |
|---|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max (Note) | (TYP %) | (μF) | |
| GA5E-S03-X | 5.0 | 3.3 | 1515 | 60 | 73 | 2200 |
| GA5E-S05-X | 5.0 | 5 | 1000 | 60 | 80 | 1000 |
| GA5E-S09-X | 5.0 | 9 | 555 | 90 | 81 | 300 |
| GA5E-S12-X | 5.0 | 12 | 416 | 120 | 81 | 160 |
| GA5E-S15-X | 5.0 | 15 | 333 | 150 | 82 | 100 |
| GA5E-S24-X | 5.0 | 24 | 208 | 240 | 82 | 43 |
| GA5E-S48-X | 5.0 | 48 | 104 | 480 | 84 | 10 |
Note:
X= ONE digit representing the output power (W) The output power is rising in steps of 1W from 1W to the max. output Power; When the output power is maximum power, X is omitted. E.g:3W=GA5E-S05-3, GA5E-S15-3 ; 5W=GA5E-S05, GA5E-S15
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 90 | 264 | Vac | |
| DC in | 120 | 370 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 50/60 | 63 | Hz | |
| Inrush Current | Io nom | Vi: 115VAC | 10 | A | ||
| Vi:230VAC | 20 | A | ||||
| Input Fuse | VDE / UL / CCC FUSE 2.5A /250V (Slow blow) | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | 3.3V, 5V Models | ±3 | % | ||
| 9....48V Models | ±2 | |||||
| Minimum Load | Vi nom | 0 | % | |||
| Line Regulation | Io nom, Vi min...Vi max | ±1.0 | % | |||
| Load Regulation | ±1.0 | % | ||||
| Transient Recovery Time | Vi nom, Io nom = ← → 0.5 Io nom | 1000 | us | |||
| Protection | Overload | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Short Circuit | Recovers automatically after fault condition is removed | |||||
| Over Voltage | 120%-150% rated output Voltage | |||||
| Protection type: Zener diode clamp | ||||||
Notes:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 10uf paralleled with a high-frequency 0.47uf capacitor arcoss each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Refer to Temperature Derating Graph | -25 | +70 | ℃ | |
| Storage Temperature | Non Operational | -40 | +85 | ℃ | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
| Safety Standards | UL 62368-1，IEC 62368-1 approved | ||||
| EMI Conduction & Radiation | Compliance to EN55032,CLASS B | ||||
| EMS Immunity | Compliance to EN61000 | ||||

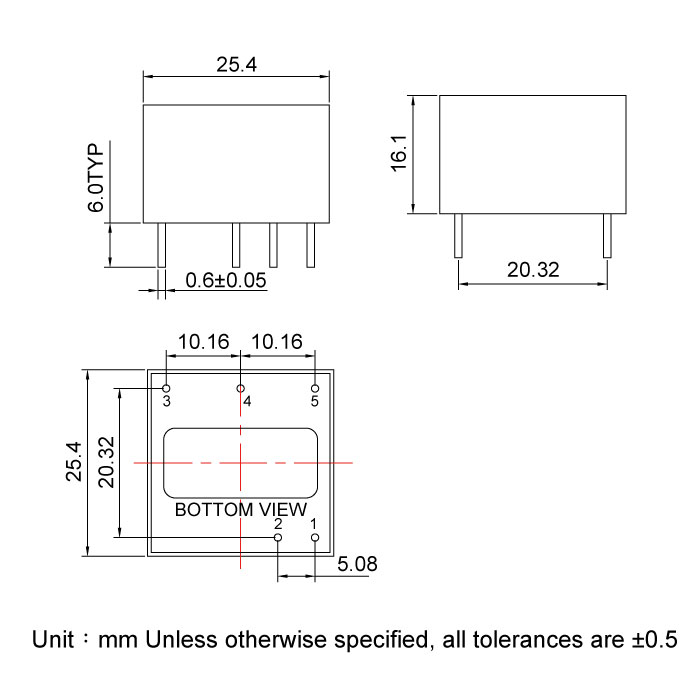

| Dimension | L 25.4 x W 25.4 x H 16.1 mm | ||||
| Cooling | Free air convection | ||||
Files Download
GA5E-Series.pdf
