68DW10-R6 系列 10瓦 1.5KV隔離電壓 4:1寬輸入 直流對直流電源轉換器

功能&特點

• 10瓦 DIL 包裝。

• 寬輸入4:1電壓範圍。

• 100%高溫預燒測試。

• 高效率達87%。

• 可提供客製化。

• 具備遙控開關功能。

• 符合UL94V-0規範包裝材質。

• 操作環境溫度:-40°C 至 +87°C。

• 產品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency
	Vdc	No Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP
68DW10-24S03R6	9-36	50	393	3.3	2400	84
68DW10-24S05R6	9-36	40	496	5	2000	84
68DW10-24S12R6	9-36	20	483	12	830	86
68DW10-24S15R6	9-36	20	474	15	660	87
68DW10-24D12R6	9-36	20	483	±12	±415	86
68DW10-24D15R6	9-36	20	474	±15	±330	87
68DW10-48S03R6	18-75	30	196	3.3	2400	84
68DW10-48S05R6	18-75	40	248	5	2000	84
68DW10-48S12R6	18-75	10	241	12	830	86
68DW10-48S15R6	18-75	10	237	15	660	87
68DW10-48D12R6	18-75	10	241	±12	±415	86
68DW10-48D15R6	18-75	10	237	±15	±330	87

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				4:1
Filter	PI Network
Protection	Fuse Recommended

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			±2	%
Short Circuit Protection	Hiccup, automatic Recovery
Line Regulation				±0.5	%
Load Regulation	Single Dual(Balance Load)			±0.5 ±1	%
Cross Regulation	Dual (25% To 100% Load)			±5	%
Ripple & Noise	Output:3-15V TYPES BW=DC To 20MHz			100	mVp-p
	Output > 15V TYPES BW=DC To 20MHz			1% of Vout	mVp-p
Transient response setting time	25% load step change		300		us
External Trim Adj. Range				±10	%

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Voltage			1500		Vdc
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			400		KHz
Operating Temperature	With derating	-40		+87	℃
Storage Temperature		-55		+125	℃
Case Temperature				+105	℃
Humidity	Non Condensing	5		95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel Coated Copper With Non-Conductive Base
MTBF	MIL-HDBK-217F@25℃	560000			Hours
Weight		16.5			g
Dimensions		25.4 x 25.4 x 10.6			mm

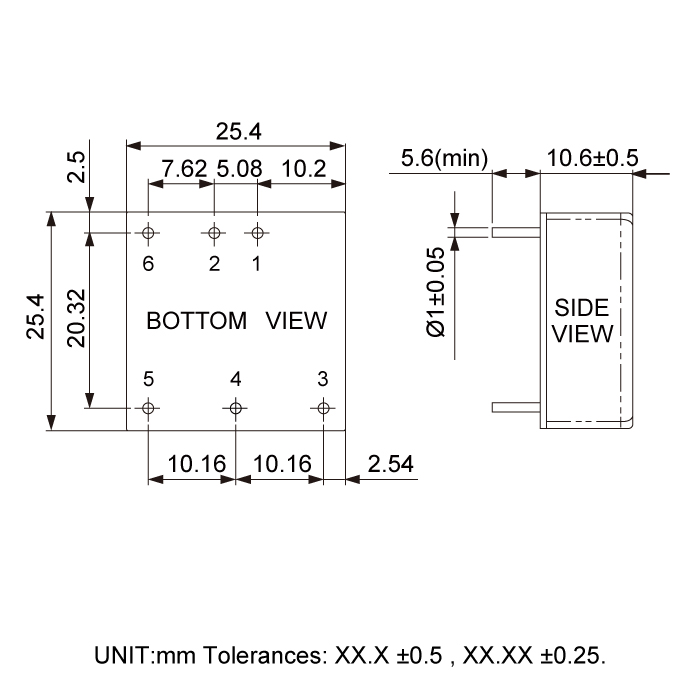

Dimension
