96DW-R5 系列
YDS
30瓦 DIL 包裝。
寬輸入4:1電壓範圍 。
100%高溫預燒測試 。
效率高達88%。
可提供客製化。
具備遙控開關功能。
符合UL94V-0規範包裝材質。
操作環境溫度:-40°C 至 +85°C。
產品保固3年。
Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Output Ripple & Noise | Capacitor Load Max | Efficiency | |
---|---|---|---|---|---|---|---|---|
Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | mVp-p | uF Max | %TYP | |
96DW-24S03R5NL | 9-36 | 120 | 1265 | 3.3 | 7500 | 100 | 20000 | 82 |
96DW-24S05R5NL | 9-36 | 130 | 1488 | 5.0 | 6000 | 100 | 14400 | 84 |
96DW-24S12R5NL | 9-36 | 50 | 1471 | 12 | 2500 | 100 | 3000 | 85 |
96DW-24S15R5NL | 9-36 | 50 | 1471 | 15 | 2000 | 100 | 2000 | 85 |
96DW-24D12R5NL | 9-36 | 60 | 1471 | ±12 | 1250 | 100 | ±2000 | 85 |
96DW-24D15R5NL | 9-36 | 60 | 1471 | ±15 | 1000 | 100 | ±1300 | 85 |
96DW-48S03R5NL | 18-75 | 70 | 629 | 3.3 | 7500 | 100 | 20000 | 82 |
96DW-48S05R5NL | 18-75 | 80 | 744 | 5.0 | 6000 | 100 | 14400 | 84 |
96DW-48S12R5NL | 18-75 | 30 | 727 | 12 | 2500 | 100 | 3000 | 86 |
96DW-48S15R5NL | 18-75 | 30 | 727 | 15 | 2000 | 100 | 2000 | 86 |
96DW-48D12R5NL | 18-75 | 30 | 727 | ±12 | 1250 | 100 | ±2000 | 86 |
96DW-48D15R5NL | 18-75 | 30 | 727 | ±15 | 1000 | 100 | ±1300 | 86 |
Note:
1. BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40ºC. (Ground fixed and controlled environment)
MIL-STD-217F Notice2 @Ta=25 ºC, Full load (Ground, Benign, controlled environment)
2. The ON/OFF control pin voltage is referred to -Input. (Leave open if not used.)
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Voltage Types | 4:1 | |||||
Filter | Pi TYPE | |||||
Input surge voltage 100mS max | 24V input 48V input | 50 100 | Vdc Vdc | |||
Input reflected ripple current | Nominal Vin and full load | 20 | mAp-p | |||
Start up time | Nominal Vin and constant resistive load | Power up | 40 | mS | ||
Remote ON/OFF | 30 | mS | ||||
Start-up voltage | 24V input | 9 | Vdc | |||
48V input | 18 | Vdc | ||||
Shutdown voltage | 24V input | 8 | Vdc | |||
48V input | 16 | Vdc | ||||
Protection | Fuse Recommended | |||||
Remote ON/OFF (Note 2) | DC-DC ON | OPEN | ||||
DC-DC OFF | Short to ground | |||||
Input current of Remote control pin | Nominal Vin | -0.5mA ~ +0.5mA | ||||
Remote off state input current | Nominal Vin | 3mA |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | Full load@Vin(nom.) | ±2 | % | ||
Short Circuit Protection | Hiccup, automatic recovery | ||||
Over Load Protection | nominal input | 150 | % | ||
Over Voltage Protection (Zener Diode Clamp) | 3.3V Output 5.0V Output 12V Output 15V Output | 3.9 6.2 15 & ±15 18 & ±18 | V V V V | ||
Line Regulation | LL to HL at Full Load | ± 0.5 | % | ||
Load Regulation | Single | ± 0.5 | % | ||
Load Regulation | Dual, Balance Load, 25% to 100% load | ± 1.0 | % | ||
Cross Regulation | Dual (25% to 100% Load) | ± 5.0 | % | ||
Ripple & Noise | 20MHz bandwidth | 100 | mVp-p | ||
Transient response recovery time | 25% load step change | 250 | 350 | us | |
External Trim Adj. Range | ±10% of Output |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Resistance | 500Vdc | 1000 | MΩ | ||
Switching Frequency | 300 | KHz | |||
Isolation Capacitance | 2200 | pF | |||
Case Material | Nickel coated copper with no-conductive base | ||||
Potting material | Epoxy (UL94-V0) | ||||
Isolation Voltage | For 10 seconds | 1600 | VDC | ||
Design meets safety | IEC60950-1, UL60950-1, EN60950-1 | ||||

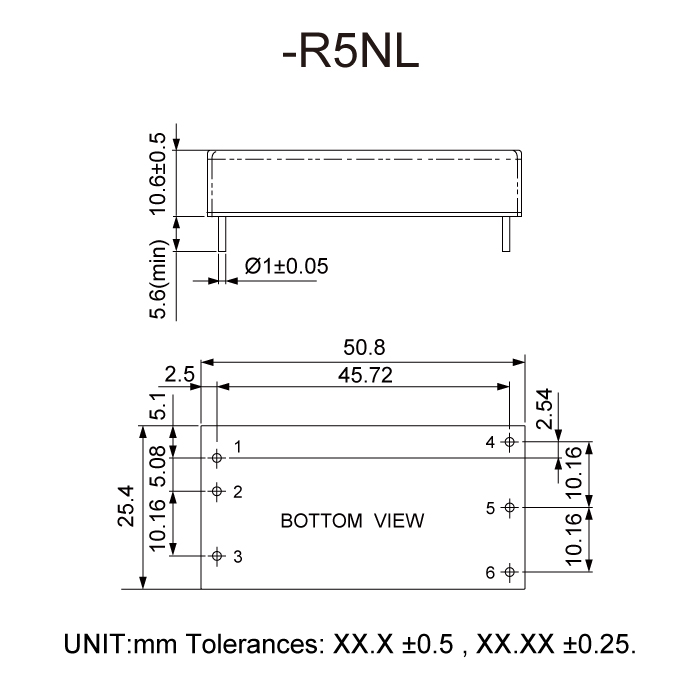

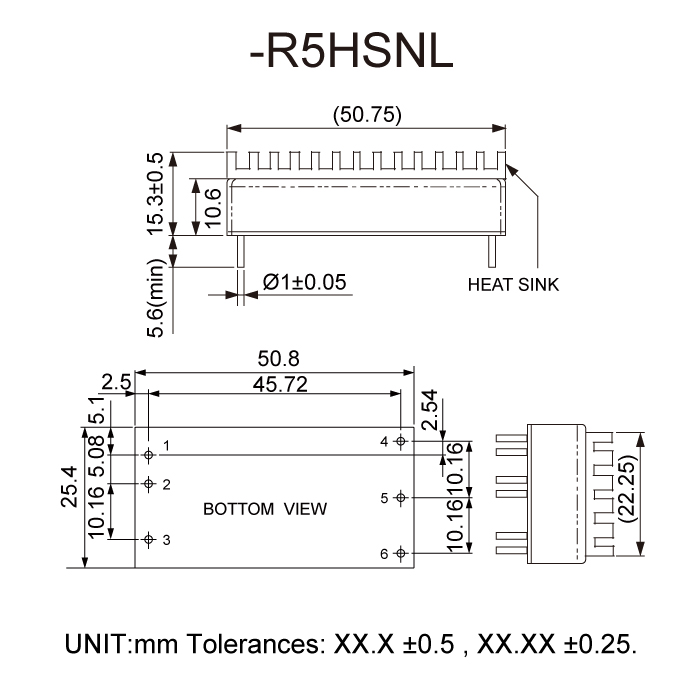

Dimensions | -R5NL -R5HSNL | 50.8X 25.4 X 10.6 50.8X 25.4 X 15.3 | mm mm | ||
Weight | 36.5 | g | |||
MTBF (Note 1) | BELLCORE-TR-NWT-000332 MIL-HDBK-217F | 3.163 x 106 4.347 x 105 | hrs hrs |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Operating Temperature | -40 | +85 | ℃ | ||
Maximum case temperature | +105 | ℃ | |||
Storage Temperature | -55 | +125 | ℃ | ||
Thermal impedance @20LFM | Convection | 12 | ℃/Watt | ||
Convection with heat-sink | 10 | ℃/Watt | |||
Thermal shock | MIL-STD-810F | ||||
Vibration | MIL-STD-810F | ||||
Relative humidity | 5% to 95% RH |
Files Download 96DW-R5-Series.pdf
