03D-10A 系列 非隔離 穩壓 7.5~50瓦 POL 直流對直流電源轉換器

狀態:
數量:
  • 03D-10A 系列

  • YDS


功能&特點


  • SMD包裝。

  • 高效率 - 93% @ 3.3V Full Load。

  • 提供客製化。

  • 操作環境溫度:-40°C 至 +85°C。

  • 產品3年保固。

  • 輸入電壓鎖定。

  • 輸入範圍 8.3VDC 至 14.0VDC。

  • 輸出電流高達10A。

  • 輸出電壓可從0.75VDC 至 5.0VDC, 可通過外部電阻。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number ON / OFF Logic Input Range Output Voltage Output Current Efficiency (%)
12Vin, 3.3Vdc @10A
Min. Load Max. Load
03D-12-10 Negative Vo (set) ≦ 3.63V
Vin = 8.3-14Vdc
0.75 ~ 5.0Vdc 0A 10A

93%


Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance Vo (set) ≦ 3.63V 8.3 Vin (nom) = 12V 14 Vdc
Vo (set) > 3.63V 8.3 Vin (nom) = 12V 13.2 Vdc
Input Current Vin = 8.3 to 14.0Vdc;
Io (max.)
    7 A
Input Filter (Note4) C filter
No Load Current
(Vin=12V, Io=0, Module enabled)
Vo (set) = 0.75Vdc   40   mA
Vo (set) = 5.0Vdc   100   mA
Under Voltage Lockout Start-up Voltage   7.9   V
Shutdown Voltage   7.8   V

Input reflected ripple current 5 ~ 20MHz, 1uH  source impedance: 20mAp-p



Output Specifications


Parameters Conditions Min Typ Max Units
Output current       10 A
Voltage Tolerance Full load and Vin (nom.)     ±2 %
Minimum load       0 A
Line Regulation Vin = Vin (min) to
Vin (max) at Full Load
  ±0.3   %
Load Regulation No Load to Full Load   ±0.4   %
Ripple & Noise (Note2) 20MHz bandwidth     75 mVp-p
Dynamic load response (Note 2) △Io / △t = 2.5A/uS, Vin (nom) Peak deviation   200   mV
Load change step
(25% to 100% or
100% to 25% of Io (max)
Setting time
(Vo < 10% peak deviation)
  25   uS
Dynamic load Response (Note 3) △Io / △t = 2.5A/uS, Vin (nom) Peak deviation   100   mV
Load change step
(25% to 100% or
100% to 25% of Io (max))
Setting time
(Vo < 10% peak deviation)
  25   uS
Output current limit   200     %
Output short-circuit current Hiccup, automatic recovery
External load capacitance ESR ≧ 1mΩ     1000 uF
ESR ≧ 10mΩ     5000 uF
Output voltage overshoot-startup Vin = Vin (min) to Vin (max); F.L   1   %
Voltage adjustability (see fig.1)   0.7525   5.0 V


General Specifications


Parameters Conditions Min Typ Max Units
Switching Frequency     300   KHz
Isolation voltage None
Efficiency See table
Dimensions   33.0 x 13.5 x 7.7 mm
Weight     6.0   g
MTBF (Note 1) MIL-HDBK-217F 1.048 x 106 hrs


Environmental Specifications


Parameters Conditions Min Typ Max Units
Operating temperature range with derating -40   +85
Storage temperature range   -55   +125
Thermal shock   MIL-STD-810F
Over temperature protection     +125


Feature Specifications


Parameters Conditions Min Typ Max Units
Remote ON/OFF
Negative logic (standard) ON = 0V < Vr < 0.3V@IIN     10 uA
OFF=2.5V < Vr < Vin (Max)@IIN     1 mA
Input current of Remote control pin   0.01   1.0 mA
Remote off state input current Nominal Vin     2.0   mA
Remote sense range       0.5 V
Rise time (Time for Vo to rise from 10% to 90%of Vo(set))       6 ms
Turn-on delay time Case 1 (Note 5)   3   ms
Case 2 (Note 6)   3   ms

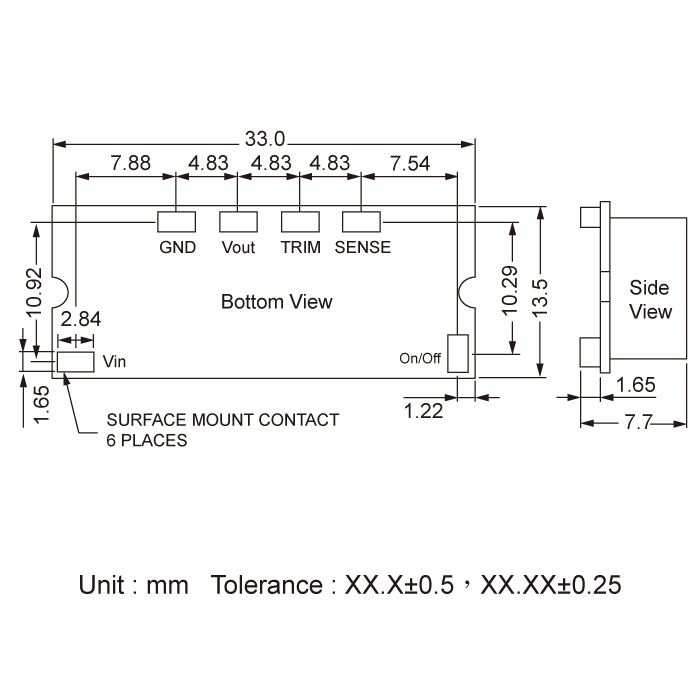

Dimension


03D-10A



 Files Download     03D-10A-Series.pdf



Certification


RoHS
