10T系列 500mW Pulse 通用變壓器

功能&特點

• 通過UL 60950-1認證。

測試條件

• 電感---------------------- 100KHz / 20mV。

• 洩漏電感--------- 100KHz / 0.2V。

• 互繞電容 - 100KHz / 0.2V。

---

Electrical Specifications@20°C; Operating Temperature 0°C to 70°C

Part Number	Turns Ratio (±5%)	Primary Sine Wave OCL (mH Min)	Primary ET-Constant (V-μsec) Min	Rise Time (nsec) max	Pri/Sec Cww (pF Max)	Leakage Inductance Pri/Sec (μH Max)
10T-50211ANL	1:1:1	5.0	25.0	10.5	70	1.3
10T-20211ANL	1:1:1	2.0	16.0	8.2	37	0.8
10T-85012DNL	1:1:1 dual	.085	2.5	3.0	9.5	0.2
10T-50221ANL	1:1:1	5.0	25.0	10.5	60	1.3
10T-20221ANL	1:1:1	2.0	16.0	11.0	19	1.8

Part Number	DCR Primary (Ω Max)	DCR Secondary (Ω Max)	DCR Tertiary (Ω Max)	Hi Pot Vrms
10T-50211ANL	3.9	3.9	3.9	500
10T-20211ANL	2.5	2.5	2.5	500
10T-85012DNL	0.20	-	-	500
10T-50221ANL	3.9	3.9	3.9	500
10T-20221ANL	2.5	1.4	1.4	500

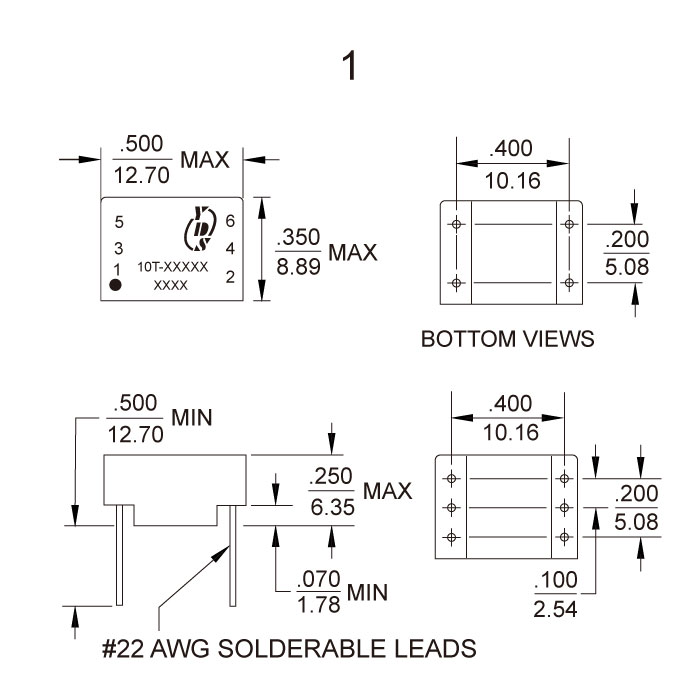

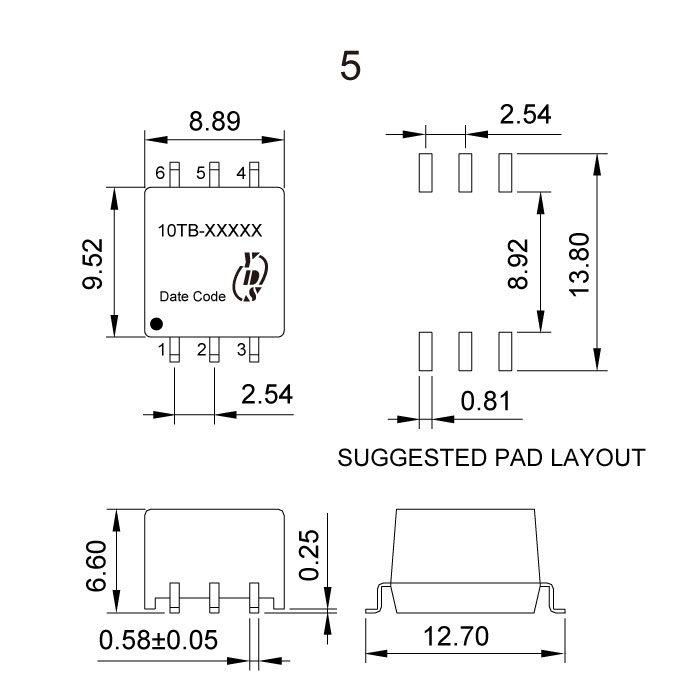

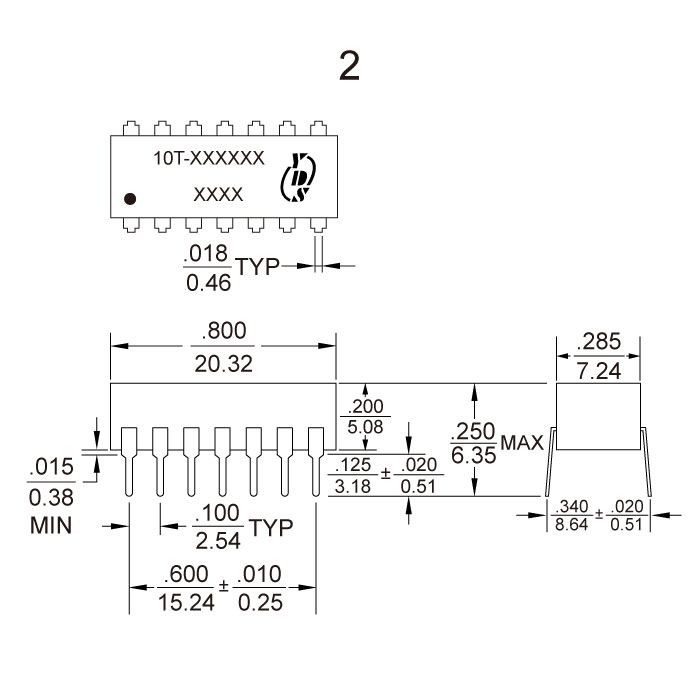

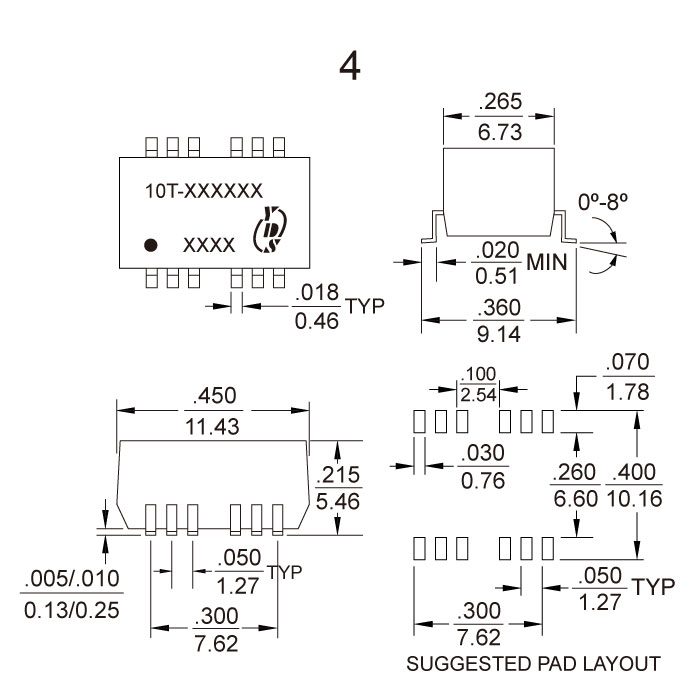

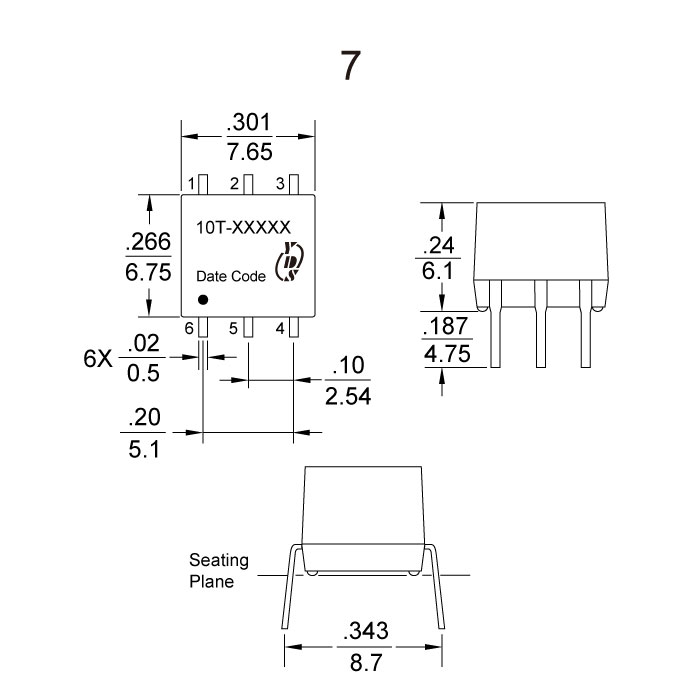

Dimension

 Files Download       10T-Series.pdf

Certification
