96DW-R6 系列
YDS
寬輸入4:1電壓範圍。
效率高達92%。
穩壓輸出類型。
1” X 1” DIL 包裝。
操作環境溫度:-40°C 至 +80°C。
工業標準引腳。
符合國際安規UL/cUL/IEC 60950-1,62368-1認證(5V/12V單輸出通過認證)。
通過EMI標準 EN55032:2012+AC:2013認證 (Class B)。
通過EMS標準 EN55024:2010認證。
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA Typ) | Full Load (mA Typ) | Vdc | (mA) | %TYP | |
| 96DW-24S03R6NL | 9-36 | 10 | 1119 | 3.3 | 7000 | 86 |
| 96DW-24S05R6NL | 9-36 | 10 | 1420 | 5 | 6000 | 88 |
| 96DW-24S12R6NL | 9-36 | 10 | 1404 | 12 | 2500 | 89 |
| 96DW-24S15R6NL | 9-36 | 10 | 1404 | 15 | 2000 | 89 |
| 96DW-24S24R6NL | 9-36 | 10 | 1389 | 24 | 1250 | 90 |
| 96DW-48S03R6NL | 18-75 | 7 | 553 | 3.3 | 7000 | 87 |
| 96DW-48S05R6NL | 18-75 | 7 | 702 | 5 | 6000 | 89 |
| 96DW-48S12R6NL | 18-75 | 7 | 694 | 12 | 2500 | 90 |
| 96DW-48S15R6NL | 18-75 | 7 | 687 | 15 | 2000 | 91 |
| 96DW-48S24R6NL | 18-75 | 7 | 679 | 24 | 1250 | 92 |
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Voltage Types | 4:1 | |||||
| Surge Voltage (1 sec. max.) | 24V models 48V models | 50 100 | Vdc | |||
| Remote ON/OFF | Positive logic | DC-DC ON | Open or 3 ~ 15VDC | |||
| DC-DC OFF | Short or 0 ~ 1.2VDC | |||||
| Input current of Ctrl pin | -0.5 ~ +1.0 mA | |||||
| Remote off input current | 2.0 mA TYP | |||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ±2 | % | ||
| Short Circuit Protection | Continuous ,Auto-Recovery | ||||
| Output Power Protection | Continuous ,Auto-Recovery | 110 | 170 | % | |
| Over Voltage Protection | 3.3Vdc 5Vdc 12Vdc 15Vdc 24Vdc | 3.7 5.6 13.5 18.3 29.1 | 5.4 7.0 19.6 22.0 32.5 | Vdc | |
| Line Regulation | Nominal Input Voltage | ± 0.5 | % | ||
| Load Regulation | Single | ± 0.5 | % | ||
| Ripple & Noise | BW=DC To 20MHz Single : 3.3V & 5V with 22uF 12V & 15V with 2*22uF 24V with 2*6.8uF | 100 | mVp-p | ||
| Start up time | Nominal Input Voltage | 30 | ms | ||
| Transient response setting time | 25% load step change | 350 | us | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | Input To Output Input(Output) To Case | 1500 1000 | Vdc | ||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 3.3 & 5.0 Vout models | 245 | 275 | 305 | KHz |
| other models | 300 | 330 | 360 | ||
| Operating Temperature | Without Heatsink With Heatsink | -40 -40 | +75 +77 | ℃ | |
| Case Temperature | +105 | ℃ | |||
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Six-side shield case | ||||
| MTBF | MIL-HDBK-217F@25℃ | 1200000 | Hours | ||

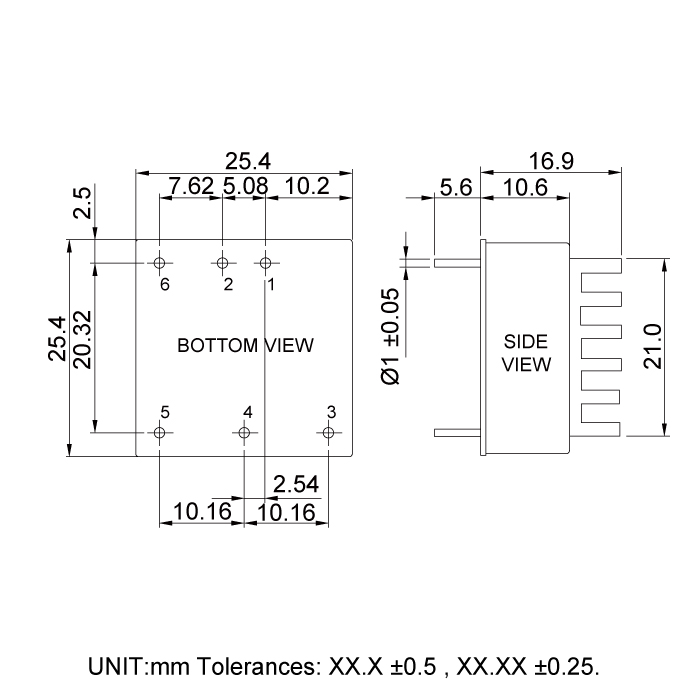

| Weight | without heatsink with heatsink | 22 24.5 | g | ||

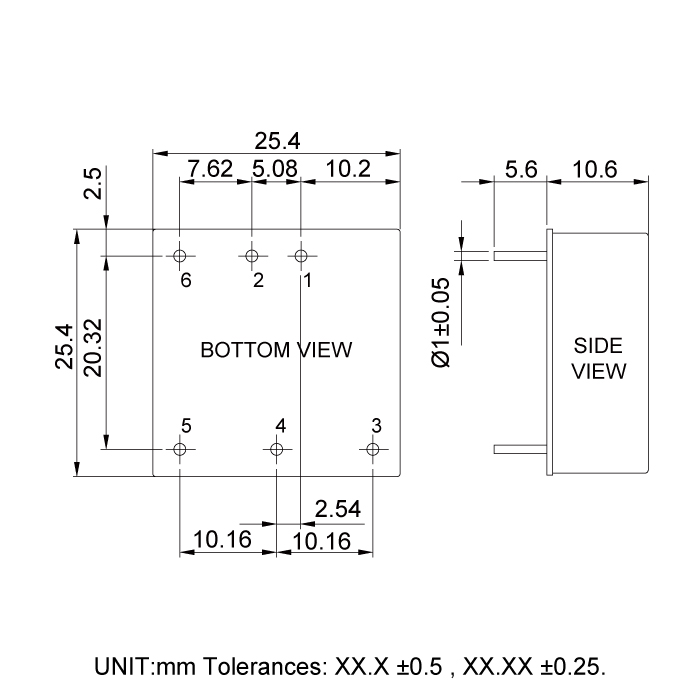

| Dimensions | 25.4 x 25.4 x 10.6 | mm | |||
Files Download
96DW-R6-Series.pdf
