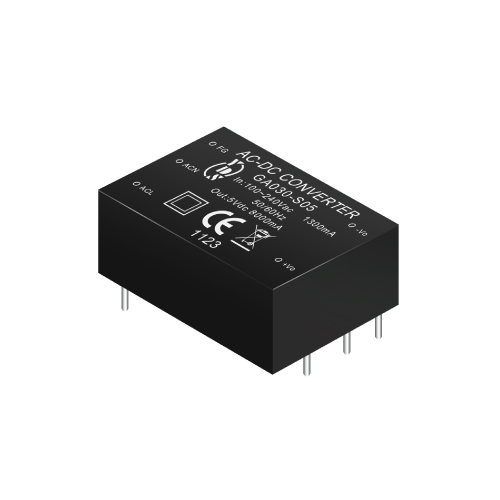

GA030系列 26~48瓦 3KVac隔離電壓 穩壓輸出 交流對直流電源轉換器

功能&特點

• 通用輸入電壓90～264VAC。

• 效率高達88%。

• 短路／過載／過壓保護。

• 塑膠外殼全封裝。

• 內置輸入濾波器。

• 產品保固3年。

• 符合RoHS認證。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Wattage	Output Voltage	Output Current	Ripple & Noise	Efficiency
	(W)	(VDC)	(mA)	(mV) max (Note)	(TYP %)
GA030-S03	26.4	3.3	8000	150	72
GA030-S05	40.0	5	8000	150	75
GA030-S06	40.0	6	6650	150	75
GA030-S07	40.0	7	5700	150	80
GA030-S08	40.0	8	5000	150	80
GA030-S09	40.0	9	4400	150	82
GA030-S10	40.0	10	4000	150	82
GA030-S12	42.0	12	3500	150	84
GA030-S13	42.0	13	3200	150	84
GA030-S14	42.0	14	3000	150	84
GA030-S15	42.0	15	2800	150	84
GA030-S16	42.0	16	2625	150	85
GA030-S18	42.0	18	2300	150	85
GA030-S24	42.0	24	1750	240	86
GA030-S27	42.0	27	1550	240	86
GA030-S36	43.2	36	1200	240	86
GA030-S48	48.0	48	1000	240	88
GA030-D05	40.0	±5	±4000	150	75
GA030-D12	42.0	±12	±1750	150	80
GA030-D15	42.0	±15	±1400	150	80
GA030-D24	42.0	±24	±875	240	80
GA030-D0305	26.5	Vo1 = +3.3, Vo2 = +5	Io1 = 5000, Io2 = 2000	150 (Vo1) 240 (Vo2)	72
GA030-D0512	40.0	Vo1 = +5, Vo2 = +12	Io1 = 5000, Io2 = 1250		75
GA030-D0515	40.0	Vo1 = +5, Vo2 = +15	Io1 = 5000, Io2 = 1000		75
GA030-D0524	40.0	Vo1 = +5, Vo2 = +24	Io1 = 5000, Io2 = 625		78

Input Specifications

Parameters	Conditions		Min	Typ	Max	Units
Rated Input Voltage	Vo, Io nom			100 ~ 240		Vac
Voltage Range	Vo, Io nom	AC in	90		264	Vac
		DC in	120		370	Vdc
Line Frequency	Vi nom, Io nom		47	50/60	63	Hz
Inrush Current	Io nom	Vi: 115VAC			12	A
		Vi: 230VAC			20	A
Input Fuse	VDE / UL / CCC FUSE 2.5A / 250V (Slow blow)

Output Specifications

Parameters	Conditions		Min	Typ	Max	Units
Output Voltage Accuracy	Vi nom, Io nom (Single output)	3.3V....9V Models			±3	%
		10....48V Models			±2
	Dual Output				±5	%
Minimum Load	Vi nom	Single Output Models	0			%
		Dual Output Models (each output)	20			%
Line Regulation	Io nom, Vi min....Vi max			±1		%
Load Regulation	Io min ~ Io nom	Single Output Models		±2		%
		Dual Output Models		±5		%
Transient Recovery Time	Vi nom, Io nom = ← → 0.5 Io nom			1000		us
Protection	Over load		Above 110% rated output power
			Protection type: Recovers automatically after fault condition is removed
	Short circuit		Recovers automatically after fault condition is removed
	Over Voltage (Main Output)		120%-150% rated output Voltage
			Protection type: Zener diode clamp

Notes:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor arcoss each output by full load.

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Switching Frequency	Vi nom, Io nom		65		KHz
Isolation Voltage	Input / Output	3KVac / 5mA / 5Secs
Isolation Resistance	Input / Output, @500 Vdc	100			MΩ
Operating Temperature	Operating at Vi nom, Io nom	-20		+70	℃
Derating	Vi nom, Io nom +51 to 71℃			2	% / ℃
Storage Temperature	Non Operational	-40		+85	℃
Relative Humidity	Vi nom, Io nom			95	% RH
Safety Standards	EN62368-1 approved
EMI Conduction & Radiation	Compliance to EN55032
EMS Immunity	Compliance to EN55024
Dimension	L 88.90 x W 63.50 x H 31.75 mm L 3.5 x W 2.5 x H 1.25 inches
Cooling	Free air convection

Dimension
