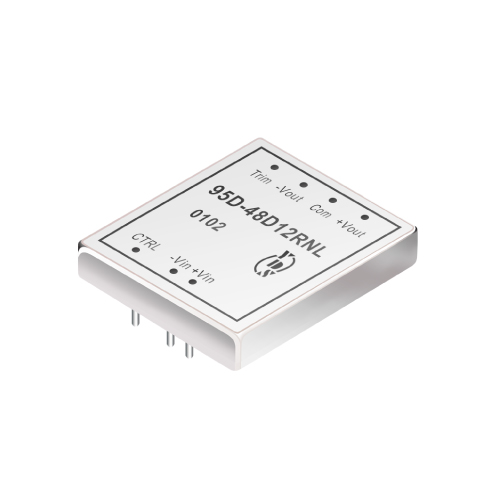

95D 系列 20瓦 1.5KV隔離電壓 2:1寬輸入 直流對直流電源轉換器

功能&特點

• 20瓦 DIL包裝。

• 寬輸入2:1電壓範圍。

• 100%高溫預燒測試。

• 效率高達85%。

• 提供客製化。

• 具備遙控開關功能。

• 符合UL94V-0規範包裝材質。

• 操作環境溫度:-40°C 至 +85°C。

• 產品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency
	Vdc	No-Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP
95D-12S03RNL	9-18	25	1890	3.3	5500	80
95D-12S05RNL	9-18	25	2032	5	4000	82
95D-12S12RNL	9-18	25	1964	12	1670	85
95D-12S15RNL	9-18	25	1955	15	1330	85
95D-24S03RNL	18-36	20	945	3.3	5500	80
95D-24S05RNL	18-36	20	1016	5	4000	82
95D-24S12RNL	18-36	20	982	12	1670	85
95D-24S15RNL	18-36	20	977	15	1330	85
95D-24D12RNL	18-36	20	991	±12	± 833	84
95D-24D15RNL	18-36	20	991	±15	± 666	84
95D-48S03RNL	36-72	15	472	3.3	5500	80
95D-48S05RNL	36-72	15	508	5	4000	82
95D-48S12RNL	36-72	15	491	12	1670	85
95D-48S15RNL	36-72	15	488	15	1330	85
95D-48D12RNL	36-72	15	495	±12	± 833	84
95D-48D15RNL	36-72	15	495	±15	± 666	84

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	Pi TYPE

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			± 2	%
Short Circuit Protection	Hiccup,automatic recovery
Line Regulation				± 0.5	%
Load Regulation	Single(25% to 100% load)			± 0.5	%
Load Regulation	Dual(Balance load), 25% to 100% load			± 2.0	%
Cross Regulation	Dual (25% to 100% load)			± 5.0	%
Ripple & Noise	BW=DC To 20MHz			100	mVp-p
Transient response setting time	25% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			300		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel Coated with Non-Conductive Base
Weight		55			g
Dimensions	Package 1	51.4 x 41.6 x 12.3			mm
	Package 2	51.0 x 51.0 x 10.3			mm
Potting Material		Epoxy (UL94V-0 rated)
Radiated Emissions	EN55022	CLASS A
Conducted Emissions	EN55022	CLASS A
