30DW-10WM 系列
YDS
10瓦SIP 包裝。
寬輸入4:1電壓範圍。
100%高溫預燒測試。
高效率。
符合UL94V-0規範包裝材質。
可提供客製化。
符合RoHS認證。
通過醫療EMC標準EMI EN 55011 :2009 + A1:2010(CLASS A)。
通過醫療EMC標準EMS EN 60601-1-2:2015。
醫療/工業/ITE應用。
I/O 隔離 3000VACrms 加強絕緣,額定 250VAC工作電壓。
Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Capacitor load | |
---|---|---|---|---|---|---|---|
Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | uF MAX | |
30DW-24S03R10WM | 9-36 | 7 | 430 | 3.3 | 2500 | 80 | 4700 |
30DW-24S05R10WM | 9-36 | 7 | 508 | 5 | 2000 | 82 | 2500 |
30DW-24S12R10WM | 9-36 | 7 | 502 | 12 | 833 | 83 | 430 |
30DW-24S15R10WM | 9-36 | 7 | 505 | 15 | 670 | 83 | 270 |
30DW-24D05R10WM | 9-36 | 7 | 502 | ±5 | ±1000 | 83 | ±1250 |
30DW-24D12R10WM | 9-36 | 7 | 506 | ±12 | ±420 | 83 | ±220 |
30DW-24D15R10WM | 9-36 | 7 | 512 | ±15 | ±340 | 83 | ±135 |
30DW-48S03R10WM | 18-75 | 4 | 215 | 3.3 | 2500 | 80 | 4700 |
30DW-48S05R10WM | 18-75 | 4 | 254 | 5 | 2000 | 82 | 2500 |
30DW-48S12R10WM | 18-75 | 4 | 251 | 12 | 833 | 83 | 430 |
30DW-48S15R10WM | 18-75 | 4 | 252 | 15 | 670 | 83 | 270 |
30DW-48D05R10WM | 18-75 | 4 | 251 | ±5 | ±1000 | 83 | ±1250 |
30DW-48D12R10WM | 18-75 | 4 | 253 | ±12 | ±420 | 83 | ±220 |
30DW-48D15R10WM | 18-75 | 4 | 256 | ±15 | ±340 | 83 | ±135 |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Types | 4:1 | % | |||
Filter | PI Network | ||||
Protection | Fuse Recommended | ||||
Start up Time | Constant resistive load | 15 | ms | ||
Remote ON/OFF | DC-DC ON (Referred to –Vin pin) | 0 | Open | 1.2 | Vdc |
DC-DC OFF | 2.2 | 12 | Vdc |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | Full load@Vin(nom.) | ±2 | % | ||
Short Circuit Protection | Hiccup, automatic Recovery | ||||
Line Regulation | ±0.5 | % | |||
Load Regulation | Single Dual(Balance Load) | ±0.5 ±0.5 | % | ||
Cross Regulation | Dual(25% To 100% Load) | ±5 | % | ||
Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
Output >15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
Transient response setting time | 25% load step change | 350 | us |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Voltage | I/P to O/P Reinforced insulation for 250VAC working voltage | 3000 | Vac | ||
Isolation Resistance | 500Vdc | 1000 | MΩ | ||
Switching Frequency | 300 | KHz | |||
Operating Temperature | Refer to temperature derating graph (with derating) | -40 | +82 | ℃ | |
Storage Temperature | -55 | +125 | ℃ | ||
Case Temperature | +95 | ℃ | |||
Humidity | Non Condensing | 95 | % | ||
Cooling | Natural Convection (20LFM) | ||||
Case material | Plastic | ||||
MTBF | MIL-HDBK-217F @25℃ | 700000 | Hours | ||
Weight | 13.5 | g | |||

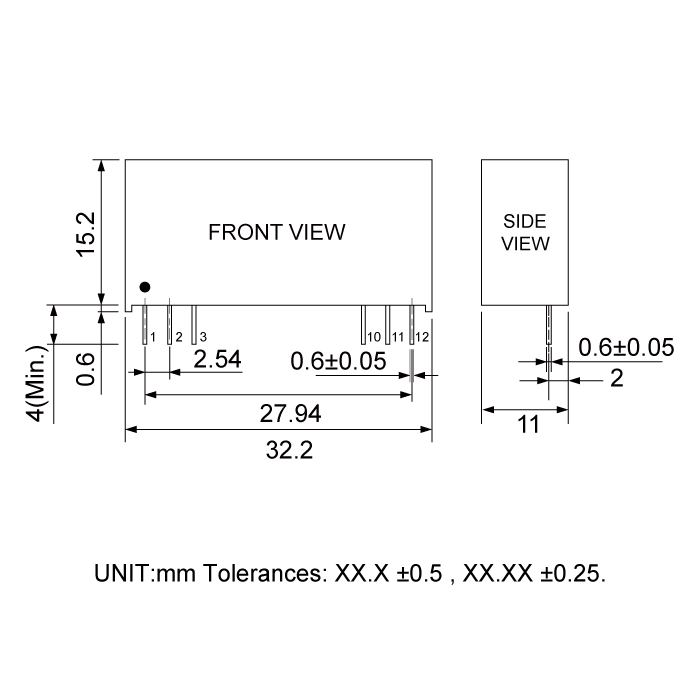

Dimensions | 32.2 x 15.2 x 11.0 | mm |
Files Download 30DW-10WM-Series.pdf
