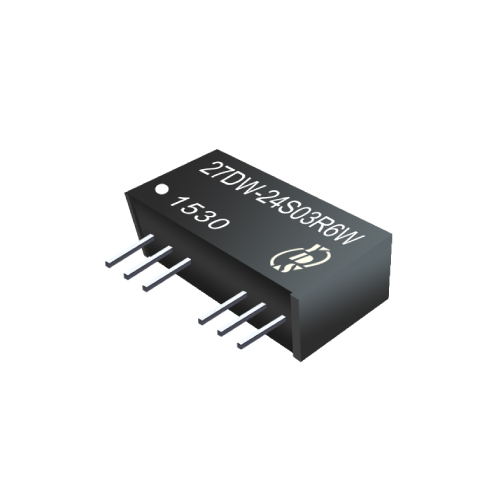

27DW-6W 系列
YDS
6瓦 SIP8包裝。
寬輸入4:1電壓範圍。
效率高達88%。
提供客製化。
具備遙控開關功能。
操作環境溫度:-40℃ 至 +85℃。
包裝材質符合 UL94V-0。
通過EMI標準 EN55032:2012+AC:2013認證 (Class B)。
通過EMS標準 EN55024:2010認證。
產品保固3年。
| Part Number | Input Voltage Range | Input Current | Output Voltage Range | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | mA | %Typ | |
| 27DW-24S03R6W | 9-36 | 7 | 255 | 3.3 | 1500 | 81 |
| 27DW-24S05R6W | 9-36 | 7 | 298 | 5 | 1200 | 84 |
| 27DW-24S12R6W | 9-36 | 7 | 287 | 12 | 500 | 87 |
| 27DW-24S15R6W | 9-36 | 7 | 284 | 15 | 400 | 88 |
| 27DW-24S24R6W | 9-36 | 7 | 287 | 24 | 250 | 87 |
| 27DW-48S03R6W | 18-72 | 7 | 127 | 3.3 | 1500 | 81 |
| 27DW-48S05R6W | 18-72 | 7 | 149 | 5 | 1200 | 84 |
| 27DW-48S12R6W | 18-72 | 7 | 144 | 12 | 500 | 87 |
| 27DW-48S15R6W | 18-72 | 7 | 144 | 15 | 400 | 87 |
| 27DW-48S24R6W | 18-72 | 7 | 144 | 24 | 250 | 87 |
| 27DW-24D12R6W | 9-36 | 7 | 287 | ±12 | ±250 | 87 |
| 27DW-24D15R6W | 9-36 | 7 | 287 | ±15 | ±200 | 87 |
| 27DW-48D12R6W | 18-72 | 7 | 144 | ±12 | ±250 | 87 |
| 27DW-48D15R6W | 18-72 | 7 | 144 | ±15 | ±200 | 87 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo, Io Nom | 4:1 | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ±2 | % | ||
| Short Circuit Protection | Continuous, Auto-Recovery | ||||
| Line Regulation | -0.5 | +0.5 | % | ||
| Load Regulation | Single output models Dual output models (Balance Load) | -0.5 -1.0 | +0.5 +1.0 | % | |
| Ripple & Noise | Output:3V-10V Types BW=DC To 20MHz | 100 | mVp-p | ||
| Output>10V Types BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 250 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Single Dual | 400 500 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Storage Temperature | -55 | +125 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 1500000 | Hours | ||
| Weight | 4.5 | g | |||

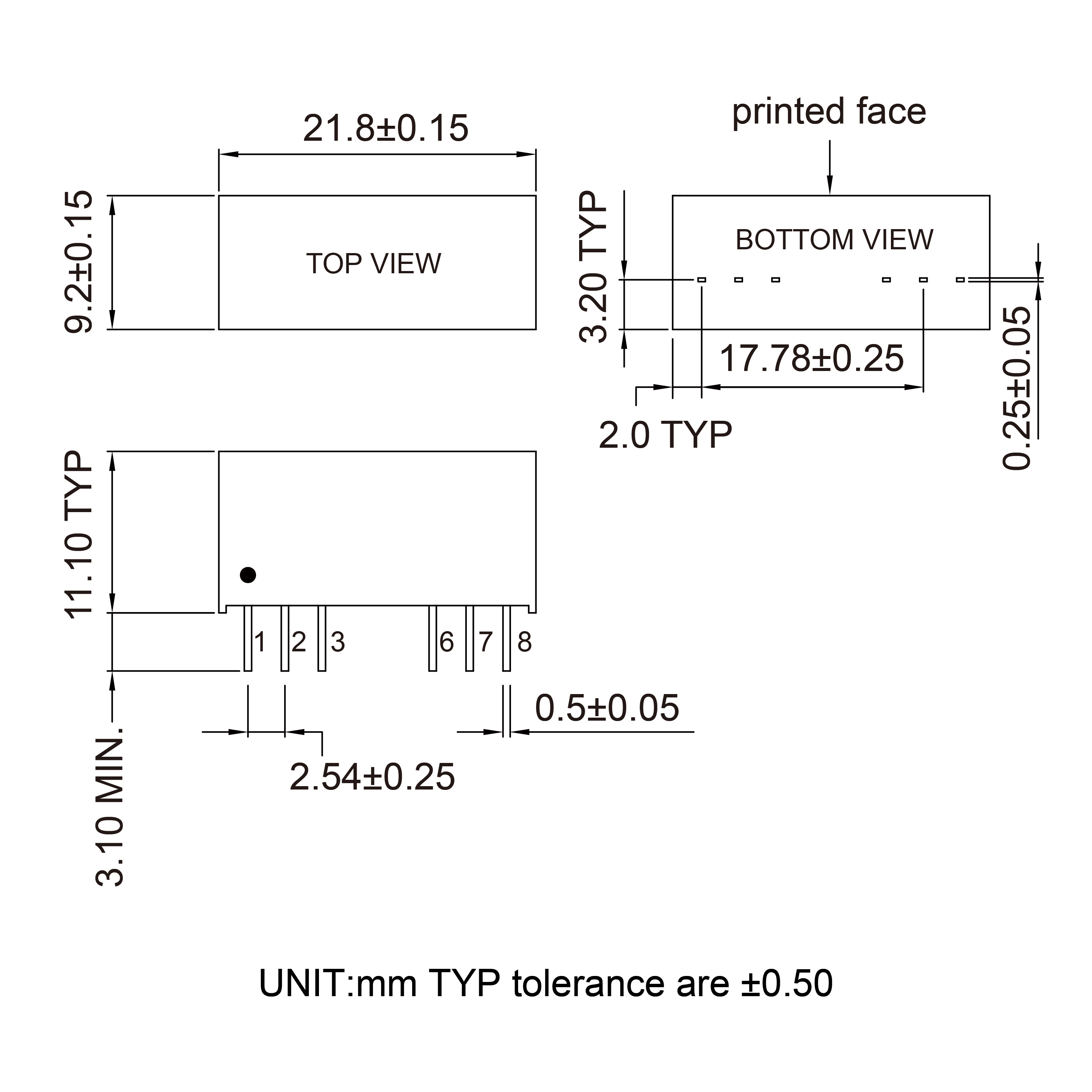

| Dimensions | 21.8 x 9.2 x 11.1 | mm | |||
