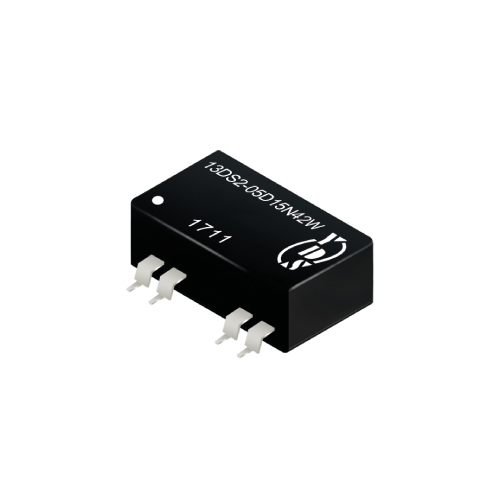

13DS2-N42W 系列 2瓦 1KV隔離電壓 SMD 直流對直流電源轉換器

功能&特點

• 極小型封裝。

• 18PIN SMD 包裝。

• 效率高達80%。

• 非穩壓輸出類型。

• 高功率密度。

• 工業標準引腳。

• 操作環境溫度：-40°C 至 +85°C

• 不需外部零組件。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency
	Vdc	mA	% TYP
13DS2-XXS05N42W	5	400	70
13DS2-XXS09N42W	9	222	75
13DS2-XXS12N42W	12	167	80
13DS2-XXS15N42W	15	133	80
13DS2-XXD05N42W	±5	±200	70
13DS2-XXD09N42W	±9	±111	75
13DS2-XXD12N42W	±12	±84	80
13DS2-XXD15N42W	±15	±67	80

Note:
1. "XX" Is Input Voltage: 05 = 5Vdc, 09 = 9Vdc, 12 = 12Vdc, 15 = 15Vdc, 24 = 24Vdc.
2. The input voltage increases, there will be an increase in efficiency.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo, Io Nom			±10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Short Term			1	Sec
Line Regulation	For 1.0% OF Vin		1.2		%
Load Regulation	5V & 9V (10% To 100% F.L)			15	%
Load Regulation	12V & 15V (10% To 100% F.L)			10	%
Ripple & Noise	BW = DC To 20MHz			75	mVp-p
Transient Response Setting Time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F @25℃	3500000			Hours
Weight			1.5		g
Dimensions		15.24 x 8.0 x 8.5			mm

Dimension
