GP12系列 10~15瓦 4KVac隔離電壓 單輸出 交流對直流電源轉換器

狀態:
數量:
  • GP12 系列

  • YDS

功能&特點


  • 通用輸入電壓 90~264VAC。

  • 效率高達85%(標準值)。

  • 短路/過載/過壓保護。

  • 內置輸入濾波器。

  • 產品保固3年。

  • 符合RoHS認證。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output Wattage Output Voltage Output Current Ripple & Noise Efficiency
(W) (VDC) (mA) (mV) max(Note) (TYP %)
GP12-S03 10.0 3.3 3000 100 72
GP12-S05 12.0 5 2400 100 74
GP12-S09 12.0 9 1330 100 80
GP12-S12 15.0 12 1250 150 82
GP12-S15 15.0 15 1000 150 83
GP12-S24 15.0 24 625 240 84
GP12-S36 15.0 36 416 240 85
GP12-S48 15.0 48 313 240 85


Input Specifications


Parameters Conditions Min Typ Max Units
Rated Input Voltage Vo, Io nom   100 ~ 240   Vac
Voltage Range Vo, Io nom AC in 90   264 Vac
DC in 120   370 Vdc
Line Frequency Vi nom, Io nom 47 50/60 63 Hz
Inrush Current Io nom Vi: 115VAC     10 A
Vi: 230VAC     20 A
Input Fuse VDE/UL/CCC  FUSE 2.5A/250V (Slow blow)


Output Specifications


Parameters Conditions Min Typ Max Units
Output Voltage Accuracy Vi nom, Io nom 3.3...9V Models     ±3 %
12...48V Models     ±2 %
Minimum Load Vi nom 0     %
Line Regulation Io nom, Vi min…Vi max   ±1   %
Load Regulation Vi nom, Io min…Io nom   ±2   %
Transient Recovery time Vi nom,Io nom = ←→0.5 Io nom   1000   us
Protection Over Load Above 110% rated output power
Protection type:
Recovers automatically after fault condition is removed
Short circuit Recovers automatically after fault condition is removed
Over Voltage 120%-150% rated output Voltage
Protection type:
Zener diode clamp


Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.



General Specifications


Parameters Conditions Min Typ Max Units
Switching Frequency Vi nom, Io nom   65   KHz
Isolation Voltage Input / Output 4KVac / 5mA / 5Secs
Isolation Resistance Input / Output, @500 Vdc 100
Operating Temperature Operating at Vi nom, Io nom -20   +70
Derating Vi nom,Io nom+51 to 71℃     2
Storage Temperature Non Operational -40   +85
Relative Humidity Vi nom, Io nom     95 % RH
Safety Standards Design refer to EN60950-1
EMI Conduction & Radiation Design refer to EN55022
EMS Immunity Design refer to EN55024
Dimension L65 x W38 x H25.0MAX
Cooling Free air convection

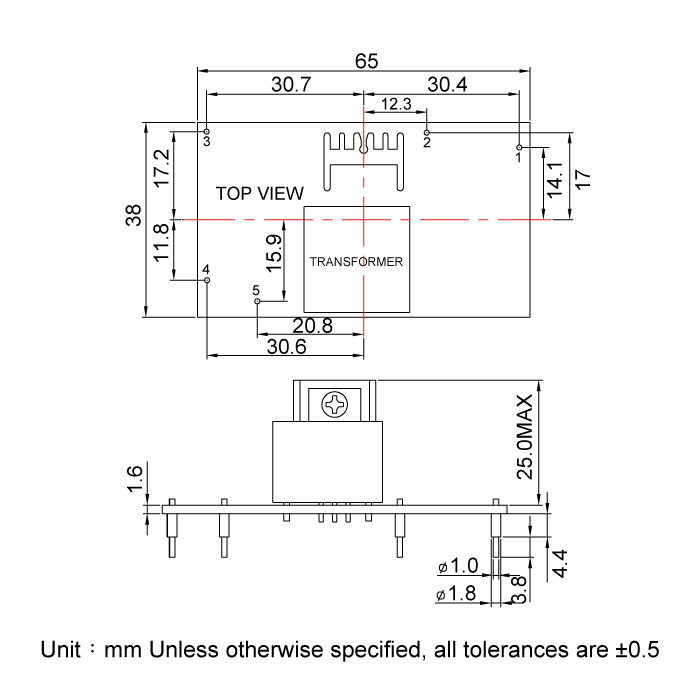

Dimension


GP12



 Files Download      GP12-Series.pdf
