67D-R3 系列 15瓦 1.5KV隔離電壓 2:1寬輸入 直流對直流電源轉換器

功能&特點

• 15W DIL包裝。

• 寬輸入2:1電壓範圍。

• 100%高溫預燒測試。

• 效率高達86%。

• 可提供客製化。

• 具備遙控開關功能。

• 符合UL94V-0規範包裝材質。

• 操作環境溫度:-40°C 至 +85°C。

• 產品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency	Capacitor Load
	Vdc	No-Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP	uF Max
67D-12S03R3	9-18	70	1310	3.3	4000	84	1500
67D-12S05R3	9-18	70	1453	5	3000	86	1500
67D-12S12R3	9-18	30	1453	12	1250	86	120
67D-12S15R3	9-18	30	1453	15	1000	86	120
67D-12D05R3	9-18	70	1488	±5	±1500	84	±1000
67D-12D12R3	9-18	30	1454	±12	±625	86	±120
67D-12D15R3	9-18	30	1454	±15	±500	86	±120
67D-24S03R3	18-36	70	655	3.3	4000	84	3300
67D-24S05R3	18-36	70	727	5	3000	86	3300
67D-24S12R3	18-36	30	727	12	1250	86	330
67D-24S15R3	18-36	30	727	15	1000	86	330
67D-24D05R3	18-36	70	744	±5	±1500	84	±2000
67D-24D12R3	18-36	30	727	±12	±625	86	±330
67D-24D15R3	18-36	30	727	±15	±500	86	±330
67D-48S03R3	36-75	40	327	3.3	4000	84	5600
67D-48S05R3	36-75	40	363	5	3000	86	5600
67D-48S12R3	36-75	30	363	12	1250	86	680
67D-48S15R3	36-75	30	363	15	1000	86	680
67D-48D05R3	36-75	40	372	±5	±1500	84	±3300
67D-48D12R3	36-75	30	368	±12	±625	85	±220
67D-48D15R3	36-75	30	368	±15	±500	85	±220

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	Pi TYPE

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			±2	%
Short Circuit Protection	Hiccup, automatic recovery
Line Regulation				±0.5	%
Load Regulation	Single Dual (Balance Load)			±0.5 ±1.0	%
Cross Regulation	Dual (25% to 100% Load)			±5	%
Ripple & Noise	Output:3-15V TYPES BW=DC To 20MHz			100	mVp-p
	Output >15V TYPES BW=DC To 20MHz			1% of Vout	mVp-p
Transient response setting time	25% load step change		300		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Voltage			1500		Vdc
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			300		KHz
Operating Temperature	With derating	-40		+85	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing	5		95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel coated copper with no-conductive base
MTBF	MIL-HDBK-217F@25℃	2.318x106			Hours
Weight		32.6			g
Dimensions		50.8 x 25.4 x 10.6			mm

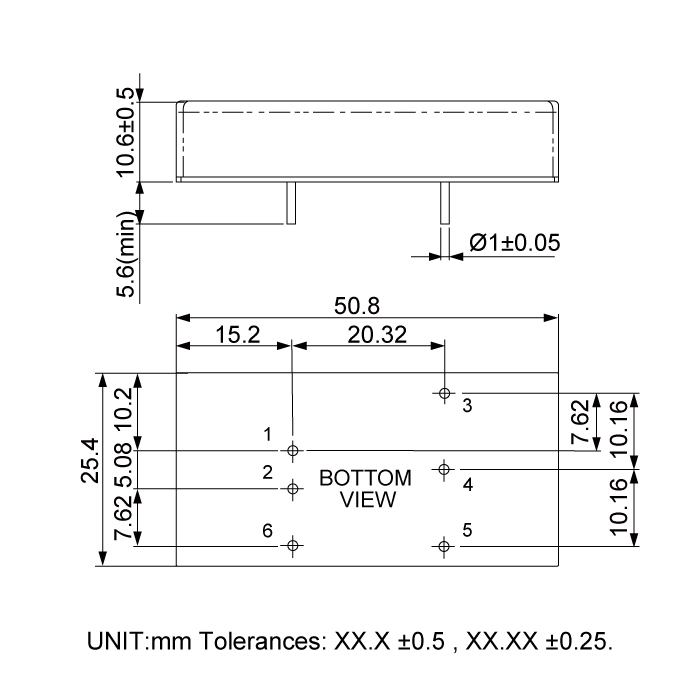

Dimension
