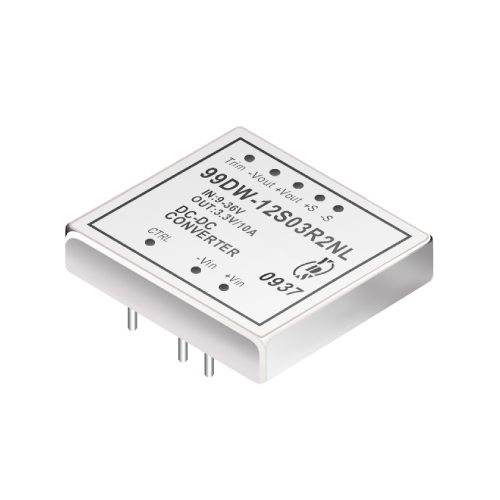

99DW-R2 系列 40瓦 1.5KV隔離電壓 4:1寬輸入 直流對直流電源轉換器

狀態:
數量:
  • 99DW-R2 系列

  • YDS

功能&特點


  • 40瓦 2”X2”DIL 包裝。

  • 寬輸入4:1電壓範圍。

  • 100%高溫預燒測試。

  • 效率高達90%。

  • 可提供客製化。

  • 具備遙控開關功能。

  • 符合UL94V-0規範包裝材質。

  • 操作環境溫度:-40°C 至 +82°C。

  • 產品保固3年。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input Voltage Input Current Output Voltage Output Current Efficiency Capacitor Load
Vdc No-Load
(mA TYP)
Full Load
(mA TYP)
Vdc Full Load
(mA)
%TYP uF Max
99DW-24S03R2NL 9-36 100 1544 3.3 10000 89 16000
99DW-24S05R2NL 9-36 110 1851 5 8000 90 10000
99DW-24S12R2NL 9-36 40 1875 12 3300 88 2000
99DW-24S15R2NL 9-36 40 1882 15 2650 88 1000
99DW-24D12R2NL 9-36 40 1897 ±12 ±1670 88 ±1000
99DW-24D15R2NL 9-36 40 1903 ±15 ±1340 88 ±680
99DW-48S03R2NL 18-75 70 763 3.3 10000 89 16000
99DW-48S05R2NL 18-75 80 925 5 8000 90 10000
99DW-48S12R2NL 18-75 30 937 12 3300 88 2000
99DW-48S15R2NL 18-75 30 941 15 2650 88 1000
99DW-48D12R2NL 18-75 30 948 ±12 ±1670 88 ±1000
99DW-48D15R2NL 18-75 30 951 ±15 ±1340 88 ±680


Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Types       4:1
Filter Pi Network
Protection Fuse Recommended
Remote ON/OFF DC-DC ON
(Referred to –Vin pin)
1.3 OPEN 3 Vdc
DC-DC OFF 0   1.2 Vdc


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance Full load@Vin(nom.)     ±2 %
Short Circuit Protection Hiccup,automatic recovery
Line Regulation       ±0.5 %
Load Regulation Single
Dual(Balance Load)
    ±0.5
±1
%
Cross Regulation Dual (25% to 100% load)     ±5 %
Ripple & Noise Output:3-15V TYPES
BW=DC To 20MHz
    100 mVp-p
Ripple & Noise Output >15V TYPES
BW=DC To 20MHz
    1% of Vout mVp-p
Transient response setting time 25% load step change   350   us
External Trim Adj. Range       ±10 %


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Voltage       1500 VDC
Isolation Resistance 500Vdc 1000
Isolation Capacitance       2500 pF
Switching Frequency     300   KHz
Operating Temperature Refer to temperature
derating graph
(with derating)
-40   +82
Storage Temperature   -55   +125
Case Temperature       +105
Humidity Non Condensing 5   95 %
Cooling Natural Convection (20LFM)
Case Material Nickel Coated with Non-Conductive Base
MTBF MIL-HDBK-217F@25℃,
Ground Benign
151100     Hours
Weight   70 g
Dimensions   51.0 x 51.0 x 10.3 mm
Potting Material   Epoxy (UL94V-0 rated)

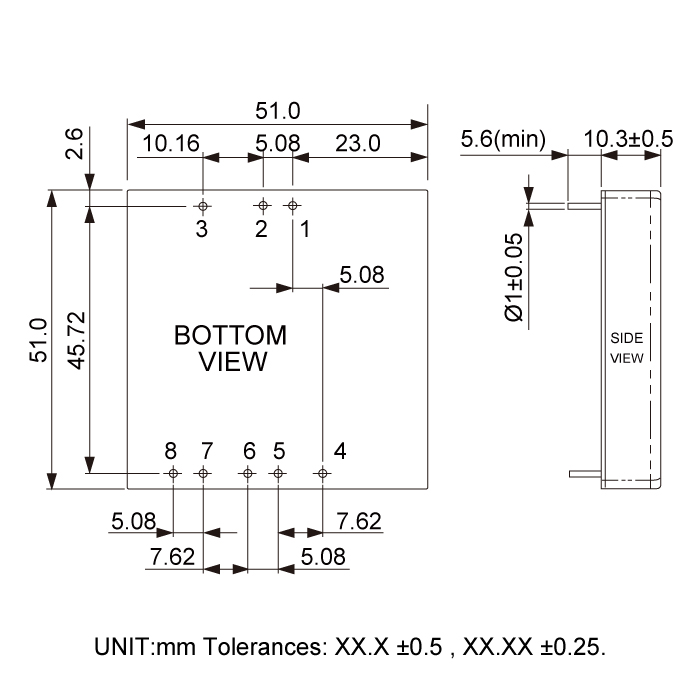

Dimension


99DW-R2




 Files Download       99DW-R2-Series.pdf




Certification
