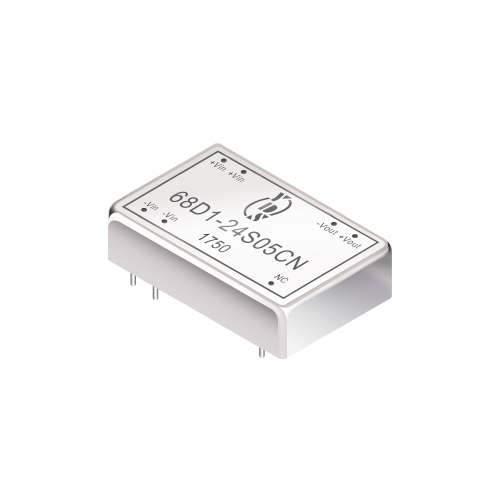

68D1 系列 3瓦 1.5KV隔離電壓 2:1寬輸入 直流對直流電源轉換器

功能&特點

• 寬輸入2:1電壓範圍。

• 3瓦 24PIN DIL 包裝。

• 效率高達80%。

• 1500Vdc隔離電壓。

• 可靠度試驗:>1,500,000 hrs。

• 操作環境溫度:-40℃ 至 +85℃。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
	Vdc	Vdc	mA	%Typ
68D1-05S05CN	4.5-9	5	600	75
68D1-05S12CN	4.5-9	12	250	77
68D1-05S15CN	4.5-9	15	200	80
68D1-12S05CN	9-18	5	600	75
68D1-12S12CN	9-18	12	250	80
68D1-12S15CN	9-18	15	200	80
68D1-12D05CN	9-18	±5	±300	75
68D1-12D12CN	9-18	±12	±125	75
68D1-12D15CN	9-18	±15	±100	75
68D1-24S05CN	18-36	5	600	78
68D1-24S12CN	18-36	12	250	80
68D1-24S15CN	18-36	15	200	80
68D1-24D05CN	18-36	± 5	±300	75
68D1-24D12CN	18-36	±12	± 125	80
68D1-24D15CN	18-36	±15	±100	80
68D1-48S05CN	36-72	5	600	78
68D1-48S12CN	36-72	12	250	80
68D1-48S15CN	36-72	15	200	80
68D1-48D05CN	36-72	±5	±300	75
68D1-48D12CN	36-72	±12	±125	80
68D1-48D15CN	36-72	±15	±100	80

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance				± 2	%
Short Circuit Protection	Continuous
Line Regulation				± 0.5	%
Load Regulation	Single			± 0.5	%
Load Regulation	Dual			± 2.0	%
Ripple & Noise	BW=DC To 20MHz			100	mVp-p
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			200		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	Nickel Coated Copper With Non-Conductive Base
Weight		16.2			g
Dimensions		31.60 x 20.10 x 11.0			mm

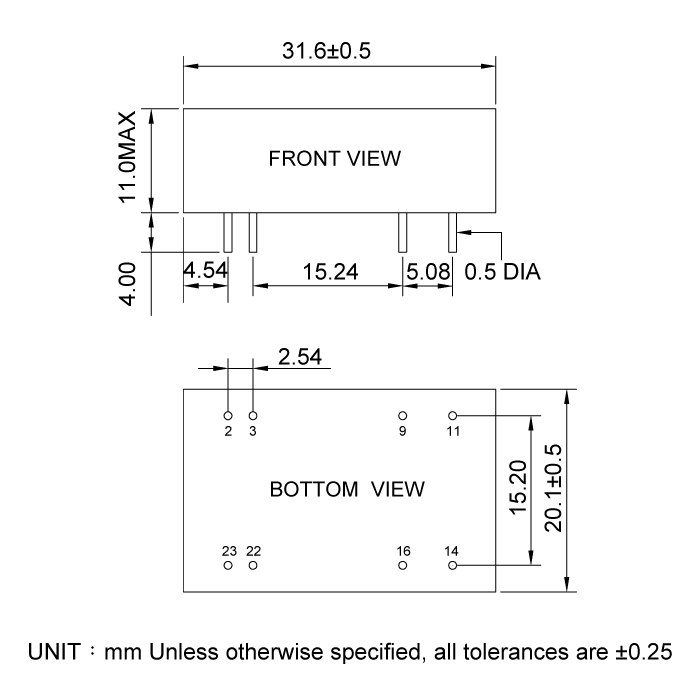

Dimension

 Files Download       68D1-Series.pdf

Certification
