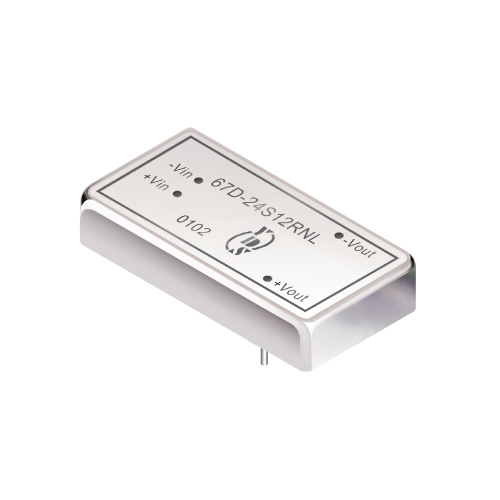

67D 系列 15瓦 1.5KV隔離電壓 2:1寬輸入 直流對直流電源轉換器

功能&特點

• 15瓦 DIL包裝。

• 寬輸入2:1電壓範圍。

• 100%高溫預燒測試。

• 效率高達87%。

• 可提供客製化。

• 符合UL94V-0規範包裝材質。

• 操作環境溫度:-40°C 至 +85°C。

• 產品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency	Capacitor Load
	Vdc	No-Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP	uF TYP
67D-12S05RNL	9-18	30	1524	5	3000	82	2200
67D-12S09RNL	9-18	30	1470	9	1666	85	1000
67D-12S12RNL	9-18	30	1470	12	1250	85	1000
67D-12S15RNL	9-18	30	1470	15	1000	85	680
67D-12S18RNL	9-18	30	1470	18	833	85	470
67D-12S24RNL	9-18	30	1453	24	625	86	470
67D-12D05RNL	9-18	30	1524	±5	±1500	82	±1000
67D-12D09RNL	9-18	30	1488	±9	±833	84	±470
67D-12D12RNL	9-18	30	1488	±12	±625	84	±470
67D-12D15RNL	9-18	30	1488	±15	±500	84	±330
67D-12D18RNL	9-18	30	1470	±18	±416	85	±220
67D-12D24RNL	9-18	30	1470	±24	±312	85	±220
67D-24S05RNL	18-36	25	744	5	3000	84	3300
67D-24S09RNL	18-36	25	735	9	1666	85	1000
67D-24S12RNL	18-36	25	735	12	1250	85	1000
67D-24S15RNL	18-36	25	726	15	1000	86	680
67D-24S18RNL	18-36	25	726	18	833	86	470
67D-24S24RNL	18-36	25	718	24	625	87	470
67D-24D05RNL	18-36	25	753	±5	±1500	83	±1000
67D-24D09RNL	18-36	25	735	±9	±833	85	±470
67D-24D12RNL	18-36	25	735	±12	±625	85	±470
67D-24D15RNL	18-36	25	735	±15	±500	85	±220
67D-24D18RNL	18-36	25	718	±18	±416	87	±220
67D-24D24RNL	18-36	25	718	±24	±312	87	±220
67D-48S05RNL	36-72	20	372	5	3000	84	3300
67D-48S09RNL	36-72	20	367	9	1666	85	1000
67D-48S12RNL	36-72	20	363	12	1250	86	1000
67D-48S15RNL	36-72	20	359	15	1000	87	680
67D-48S18RNL	36-72	20	359	18	833	87	470
67D-48S24RNL	36-72	20	359	24	625	87	470
67D-48D05RNL	36-72	20	372	±5	±1500	84	±1000
67D-48D09RNL	36-72	20	367	±9	±833	85	±470
67D-48D12RNL	36-72	20	363	±12	±625	86	±470
67D-48D15RNL	36-72	20	359	±15	±500	87	±330
67D-48D18RNL	36-72	20	359	±18	±416	87	±220
67D-48D24RNL	36-72	20	359	±24	±312	87	±220

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	Pi TYPE

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			±2	%
Short Circuit Protection	Hiccup, automatic recovery
Line Regulation				±0.5	%
Load Regulation	Single (25% to 100%)			±1.0	%
Load Regulation	Dual (25% to 100%, Balance Load)			±2.0	%
Cross Regulation	Dual (25% to 100% )			±5.0	%
Ripple & Noise	BW=DC To 20MHz			100	mVp-p
Transient response setting time	25% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			300		KHz
Operating Temperature	With derating	-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel Coated With Non-Conductive Base
Weight		36.5			g
Dimensions		50.8 x 25.4 x 10.6			mm
Potting Material		Epoxy (UL94V-0 rated)

Dimension
