54D 系列
YDS
24PIN DIL 包裝。
效率高達85%。
穩壓輸出類型。
低雜訊。
內部為SMD結構。
不需外部零組件。
操作環境溫度:-40℃ 至 +85℃。
工業標準引腳。
Part Number | Output Voltage | Output Current | Efficiency |
---|---|---|---|
Vdc | mA | %TYP | |
54D-XXS05CN | 5 | 600 | 65 |
54D-XXS09CN | 9 | 333 | 70 |
54D-XXS12CN | 12 | 250 | 75 |
54D-XXS15CN | 15 | 200 | 80 |
54D-XXS24CN | 24 | 125 | 80 |
54D-XXD05CN | ±5 | ±300 | 65 |
54D-XXD09CN | ±9 | ±167 | 70 |
54D-XXD12CN | ±12 | ±125 | 75 |
54D-XXD15CN | ±15 | ±100 | 80 |
54D-XXD24CN | ±24 | ±63 | 80 |
Note:
1.”XX” Is Input Voltage:05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc,24=24Vdc,48=48Vdc.
2. The input voltage increases, there will be an increase in efficiency.
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | Vo,Io Nom | ±10 | % | ||
Filter | Capacitor |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | 100% full load | ±3 | % | ||
Short Circuit Protection | Continuous | ||||
Line Regulation | Regulated | ±0.5 | % | ||
Load Regulation | Regulated | ±0.8 | % | ||
Ripple & Noise | Output:5-9V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
Ripple & Noise | Output:12-24V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | ||
Transient response setting time | 50% load step change | 350 | us |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Resistance | 500Vdc | 1000 | MΩ | ||
Switching Frequency | Full load, nominal input | 100 | KHz | ||
Operating Temperature | -40 | +85 | ℃ | ||
Humidity | Non Condensing | 95 | % | ||
Cooling | Free air Convection | ||||
Case material | Nickel Coated Copper With Non-Conductive Base | ||||
MTBF | MIL-HDBK-217F@25℃ | 1500000 | Hours | ||
Weight | 16.8 | g | |||

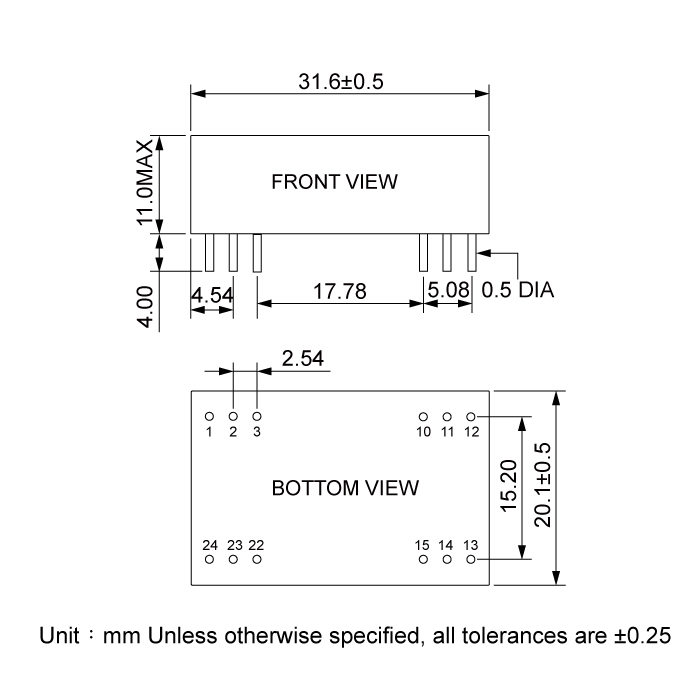

Dimensions | 31.6 x 20.10 x 11.0 | mm |
Files Download 54D-Series.pdf
