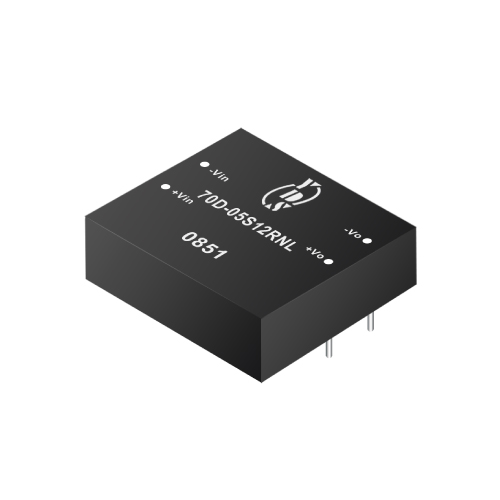

70D 系列 3瓦 0.5KV隔離電壓 直流對直流電源轉換器

功能&特點

• 輸出功率高達3瓦。

• 500Vdc 隔離電壓。

• 低雜訊。

• 穩壓輸出類型。

• MTBF:>1,500,000 hrs。

• 操作環境溫度:-40℃ 至 +85℃。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
	Vdc	Vdc	mA	%TYP
70D-05S05RNL	5	5	600	60
70D-05S12RNL	5	12	250	65
70D-05D12RNL	5	±12	±125	65
70D-12S12RNL	12	12	250	65
70D-12S15RNL	12	15	200	65
70D-12D15RNL	12	±15	±100	65
70D-24S05RNL	24	5	600	60
70D-24D12RNL	24	±12	±125	65
70D-24D15RNL	24	±15	±100	65
70D-48S12RNL	48	12	250	65
70D-48D12RNL	48	±12	±125	65
70D-48D15RNL	48	±15	±100	65

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo,Io Nom			±10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance				±5	%
Short Circuit Protection	Continuous
Line Regulation	Regulated			±0.3	%
Load Regulation	Regulated			±0.5	%
Ripple & Noise	BW=DC To 20MHz			50	mVp-p
Line Regulation	Unregulated (For 1% of Vin)		±1.2		%
Load Regulation	Unregulated (20% To 100% F.L)			±10	%
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			20		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
Weight		55			g
Dimensions		33.0 x 33.0 x 10.1			mm

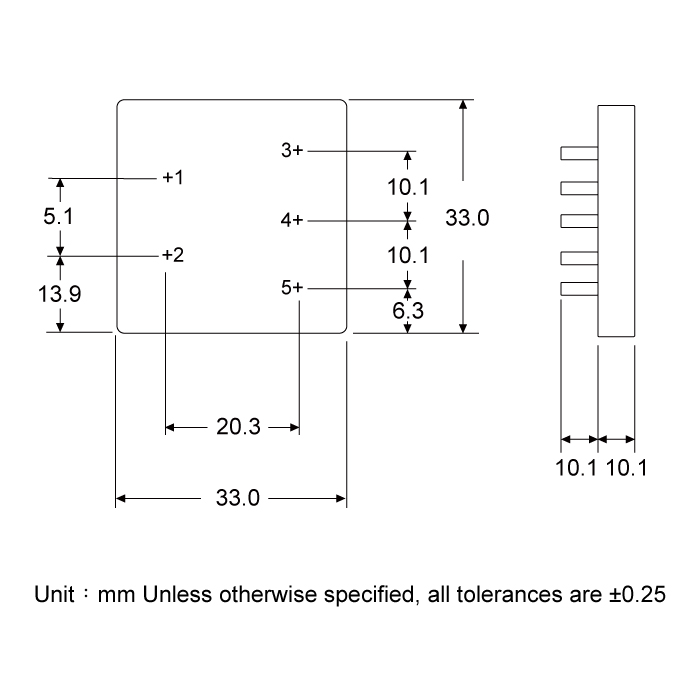

Dimension

 Files Download       70D-Series.pdf
