18D-Single 系列
YDS
24PIN DIP 包裝。
效率高達85%。
非穩壓輸出類型。
內部為SMD結構。
不需外部零組件。
工業標準引腳。
操作環境溫度:-40℃ 至 +85℃。
Part Number | Output Voltage | Output Current | Efficiency |
---|---|---|---|
Vdc | mA | %TYP | |
18D-XXS05NNL | 5 | 200 | 70 |
18D-XXS09NNL | 9 | 111 | 75 |
18D-XXS12NNL | 12 | 84 | 78 |
18D-XXS15NNL | 15 | 67 | 80 |
18D-XXS24NNL | 24 | 42 | 82 |
18D-XXS05N2WNL | 5 | 400 | 70 |
18D-XXS09N2WNL | 9 | 222 | 75 |
18D-XXS12N2WNL | 12 | 167 | 80 |
18D-XXS15N2WNL | 15 | 133 | 80 |
18D-XXS24N2WNL | 24 | 84 | 85 |
Note:
1. ”XX” Is Input Voltage:05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc.24=24Vdc.
2. The input voltage increases, there will be an increase in efficiency
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | Vo,Io Nom | ±10 | % | ||
Filter | Capacitor |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | 100% full load | ±5 | % | ||
Short Circuit Protection | Short Term | 1 | Sec | ||
Line Regulation | For 1.0% of Vin | 1.2 | % | ||
Load Regulation | 5V (20% To 100% F.L) | 15 | % | ||
Load Regulation | 9V,12V,15V,24V (20% To 100% F.L) | 10 | % | ||
Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
Transient response setting time | 50% load step change | 350 | us |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Resistance | 500Vdc | 1000 | MΩ | ||
Switching Frequency | Full load, nominal input | 50 | KHz | ||
Operating Temperature | -40 | +85 | ℃ | ||
Humidity | Non Condensing | 95 | % | ||
Cooling | Free air Convection | ||||
Case material | DAP | ||||
MTBF | MIL-HDBK-217F@25℃ | 3500000 | Hours | ||
Weight | 9.5 | g | |||

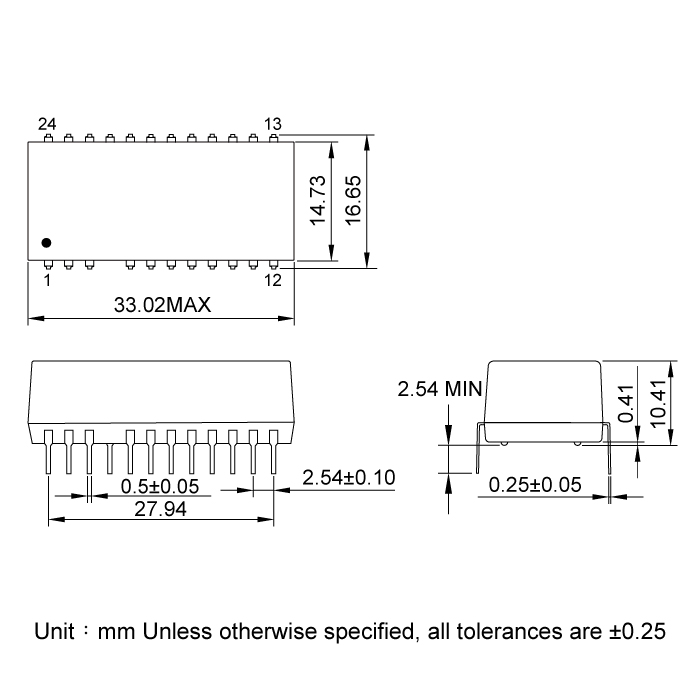

Dimensions | 33.02 x 14.73 x 10.41 | mm |
Files Download 18D-Single-Series.pdf
