22D 系列 1瓦 1KV隔離電壓 直流對直流電源轉換器

功能&特點

• 14PIN DIL 包裝。

• 效率高達85%。

• 內部為SMD結構。

• 非穩壓輸出類型。

• 不需外部零組件。

• 操作環境溫度:-40℃ 至 +85℃。

• 工業標準引腳。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency	Package Style	Recognized By UL 60950-1
	Vdc	mA	%TYP
22D-XXS03NNL	3.3	303	70	1	22D-05D05NNL 22D-05D12NNL 22D-05D15NNL 22D-05D24NNL 22D-12D12NNL 22D-12D15NNL 22D-24D05NNL 22D-24D12NNL 22D-24D24NNL
22D-XXS05NNL	5	200	70	1
22D-XXS09NNL	9	112	75	1
22D-XXS12NNL	12	84	78	1
22D-XXS15NNL	15	67	80	1
22D-XXS24NNL	24	42	82	1
22D-XXD03NNL	±3.3	±150	70	1
22D-XXD05NNL	±5	±100	70	1
22D-XXD09NNL	±9	±56	75	1
22D-XXD12NNL	±12	±42	78	1
22D-XXD15NNL	±15	±34	80	1
22D-XXD24NNL	±24	±21	82	1
22D-XXS05N2NL	5	200	70	2
22D-XXS09N2NL	9	112	75	2
22D-XXS12N2NL	12	84	78	2
22D-XXS15N2NL	15	67	80	2
22D-XXS24N2NL	24	42	82	2
22D-XXD05N2NL	±5	±100	70	2
22D-XXD09N2NL	±9	±56	75	2
22D-XXD12N2NL	±12	±42	78	2
22D-XXD15N2NL	±15	±34	80	2
22D-XXD24N2NL	±24	±21	82	2

Note:
1.”XX” Is Input Voltage:03＝3.3Vdc,05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc.24=24Vdc, 48=48Vdc.
2. Over 48Vdc input voltage, using the 2nd package.
3. The input voltage increases, there will be an increase in efficiency.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo,Io Nom			±10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Short Term			1	Sec
Line Regulation	For 1.0% of Vin		1.2		%
Load Regulation	3.3V,5V (10% To 100% F.L)			15	%
Load Regulation	9V,12V,15V,24V (10% To 100% F.L)			10	%
Ripple & Noise	BW=DC To 20MHz			100	mVp-p
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F@25℃	3500000			Hours
Weight	Package 1 or Package 2	2.3 or 2.8			g

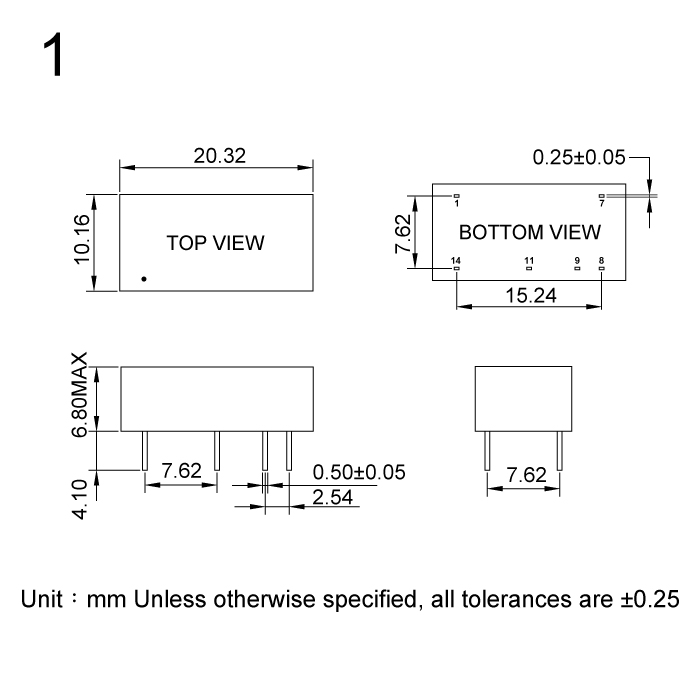

Dimensions	Package 1	20.32 x 10.16 x 6.80			mm

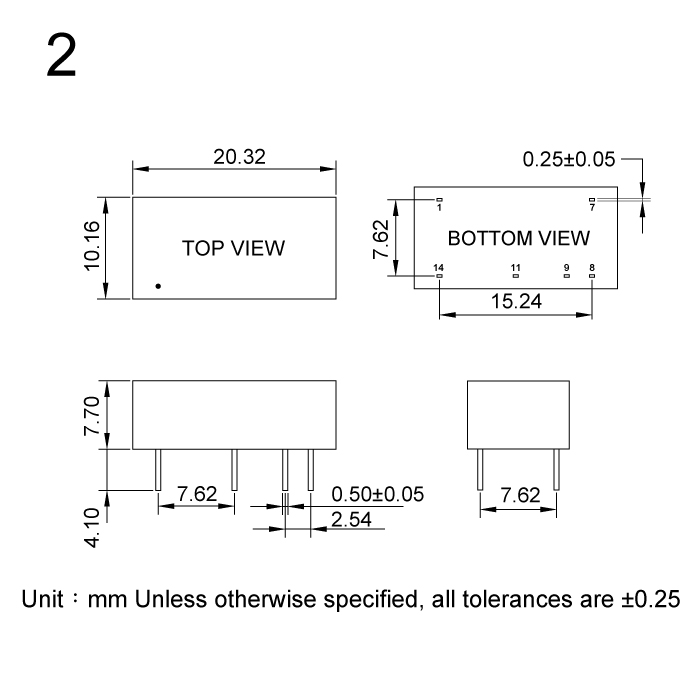

Dimensions	Package 2	20.32 x 10.16 x 7.70			mm

Dimension

 Files Download       22D-Series.pdf

Certification
