27D-3W-雙輸出 系列 3瓦 1.5KV&3KV隔離電壓 2:1寬輸入 直流對直流電源轉換器

功能&特點

• 寬輸入2:1電壓範圍。

• 效率高達80%。

• 穩壓輸出類型。

• 低雜訊。

• 內部為SMD結構。

• 1.5KVC&3KVDC 隔離電壓。

• 操作環境溫度:-40℃ 至 +85℃。

• 工業標準引腳。

• 連續性短路保護線路，採用電流回饋模式。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
	Vdc	Vdc	mA	%Typ
27D-12D05R3W (3KV)	9-18	±5	±300	70
27D-12D09R3W (3KV)	9-18	±9	±167	75
27D-12D12R3W (3KV)	9-18	±12	±125	78
27D-12D15R3W (3KV)	9-18	±15	±100	80
27D-24D05R3W (3KV)	18-36	±5	±300	70
27D-24D09R3W (3KV)	18-36	±9	±167	75
27D-24D12R3W (3KV)	18-36	±12	±125	78
27D-24D15R3W (3KV)	18-36	±15	±100	80
27D-48D05R3W (3KV)	36-72	±5	±300	70
27D-48D09R3W (3KV)	36-72	±9	±167	75
27D-48D12R3W (3KV)	36-72	±12	±125	78
27D-48D15R3W (3KV)	36-72	±15	±100	80

Note:
1. No suffix is standard isolation (1.5KVDC) e.g, 27D-12D05R3W.
2. *add suffix /3KV for 3KVDC isolation, e.g, 27D-12D05R3W3KV.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types	Vo,Io Nom			2:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±3	%
Short Circuit Protection	Continuous
Line Regulation	Regulated			±0.5	%
Load Regulation	Regulated			±0.8	%
Ripple & Noise	Output:5-9V Types BW=DC To 20MHz			100	mVp-p
Ripple & Noise	Output:12-15V Types BW=DC To 20MHz			1% of Vout	mVp-p
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	DAP
MTBF	MIL-HDBK-217F @25℃	1500000			Hours
Weight		4.5			g
Dimensions		21.8 x 9.2 x 11.1			mm

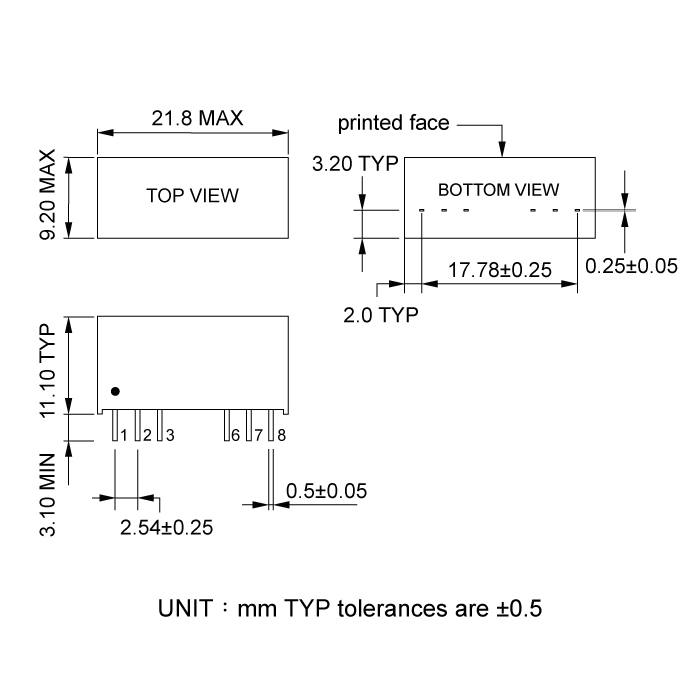

Dimension
