68DW10-M 系列 10瓦 5KVac隔離電壓 4:1寬輸入 直流對直流電源轉換器

功能&特點

• 10瓦DIL包裝。

• 寬輸入4:1電壓範圍。

• 100%高溫預燒測試。

• 效率高達85%。

• 可提供客製化。

• 符合UL94V-0規範包裝材質。

• 操作環境溫度:-40°C 至 +82°C。

• 產品保固3年。

• 通過醫療EMC標準EMI EN 55011 :2009 + A1:2010(CLASS A)。

• 通過醫療EMC標準EMS EN 60601-1-2:2015。

• 醫療/工業/ITE應用。

• I / O隔離5000VACrms，帶增強絕緣，額定工作電壓為250VAC。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency	Capacitor load
	Vdc	No Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP	uF MAX
68DW10-24S03RM	9-36	7	414	3.3	2500	83	4700
68DW10-24S05RM	9-36	7	496	5	2000	84	2500
68DW10-24S12RM	9-36	7	496	12	833	84	430
68DW10-24S15RM	9-36	7	499	15	670	84	270
68DW10-24D05RM	9-36	7	496	±5	±1000	84	±1250
68DW10-24D12RM	9-36	7	494	±12	±420	85	±220
68DW10-24D15RM	9-36	7	500	±15	±340	85	±135
68DW10-48S03RM	18-75	4	207	3.3	2500	83	4700
68DW10-48S05RM	18-75	4	248	5	2000	84	2500
68DW10-48S12RM	18-75	4	248	12	833	84	430
68DW10-48S15RM	18-75	4	249	15	670	84	270
68DW10-48D05RM	18-75	4	248	±5	±1000	84	±1250
68DW10-48D12RM	18-75	4	247	±12	±420	85	±220
68DW10-48D15RM	18-75	4	250	±15	±340	85	±135

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				4:1
Filter		PI Network
Protection	Fuse Recommended
Start up Time	Constant resistive load		15		ms
Remote ON/OFF	DC-DC ON (Referred to –Vin pin)	0	Open	1.2	Vdc
	DC-DC OFF	2.2		12	Vdc

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			±2	%
Short Circuit Protection	Hiccup, automatic Recovery
Line Regulation				±0.5	%
Load Regulation	Single Dual(Balance Load)			±0.5 ±0.5	%
Cross Regulation	Dual (25% To 100% Load)			±5	%
Ripple & Noise	Output:3-15V TYPES BW=DC To 20MHz			100	mVp-p
	Output >15V TYPES BW=DC To 20MHz			1% of Vout	mVp-p
Transient response setting time	25% load step change		350		us
External Trim Adj. Range				±10	%

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Voltage	I/P to O/P Reinforced insulation for 250VAC working voltage			5000	Vac
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			300		KHz
Operating Temperature	Refer to temperature derating graph (With derating)	-40		+82	℃
Storage Temperature		-55		+125	℃
Case Temperature				+95	℃
Humidity	Non Condensing	5		95	%
Cooling	Natural Convection (20LFM)
Case material	Plastic
MTBF	MIL-HDBK-217F @25℃	900000			Hours
Weight		13.5			g

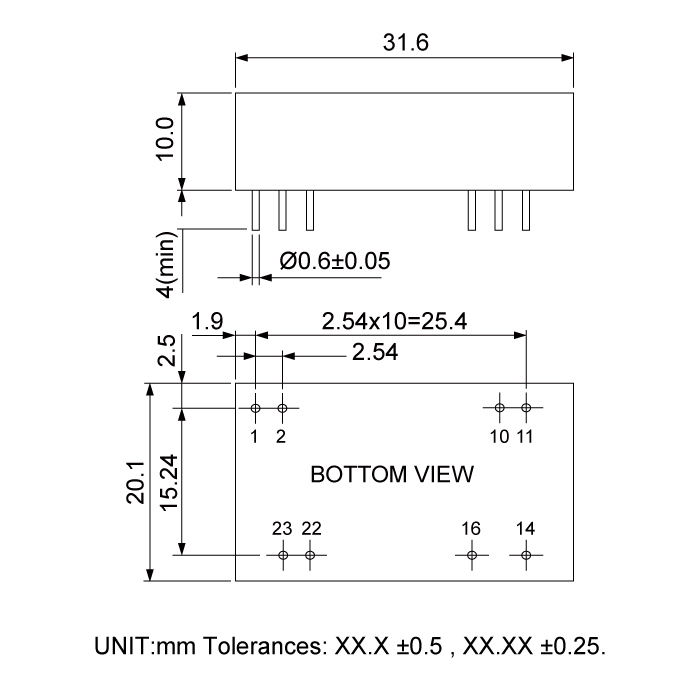

Dimensions		31.6 x 20.1 x 10.0			mm

General Specifications

 Files Download        68DW10-M-Series.pdf
