99D-R3 系列 40瓦 1.5KV隔離電壓 2:1寬輸入 直流對直流電源轉換器

狀態:
數量:
  • 99D-R3 系列

  • YDS

功能&特點


  • 40瓦 2”x 1” DIL 包裝。

  • 寬輸入2:1電壓範圍。

  • 100%高溫預燒測試。

  • 效率高達91%。

  • 可提供客製化。

  • 具備遙控開關功能。

  • 符合UL94V-0規範包裝材質。

  • 操作環境溫度:-40℃ 至 +77℃。

  • 產品保固3年。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input Voltage Input Current Output Voltage Output Current Capacitor Load Efficiency
Vdc No-Load
(mA TYP)
Full Load
(mA TYP)
Vdc Full Load
(mA)
uF %TYP
99D-12S03R3NL 9-18 160 2472 3.3 8000 16000 89
99D-12S05R3NL 9-18 160 3745 5 8000 10000 89
99D-12S12R3NL 9-18 60 3753 12 3340 1800 89
99D-12S15R3NL 9-18 60 3708 15 2670 1200 90
99D-12D12R3NL 9-18 60 3795 ±12 ±1670 ±680 88
99D-12D15R3NL 9-18 60 3807 ±15 ±1340 ±560 88
99D-24S03R3NL 18-36 90 1236 3.3 8000 16000 89
99D-24S05R3NL 18-36 90 1873 5 8000 10000 89
99D-24S12R3NL 18-36 60 1876 12 3340 1800 89
99D-24S15R3NL 18-36 60 1854 15 2670 1200 90
99D-24D12R3NL 18-36 50 1898 ±12 ±1670 ±680 88
99D-24D15R3NL 18-36 50 1882 ±15 ±1340 ±560 89
99D-48S03R3NL 36-75 70 617 3.3 8000 16000 89
99D-48S05R3NL 36-75 70 926 5 8000 10000 90
99D-48S12R3NL 36-75 40 927 12 3340 1800 90
99D-48S15R3NL 36-75 40 917 15 2670 1200 91
99D-48D12R3NL 36-75 40 938 ±12 ±1670 ±680 89
99D-48D15R3NL 36-75 40 941 ±15 ±1340 ±560 89


Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Types       2:1
Filter Pi Network
Protection Fuse Recommended


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance Full load@Vin(nom.)     ±2 %
Short Circuit Protection Hiccup, automatic recovery
Line Regulation       ±0.5 %
Load Regulation Single
Dual(Balance Load)
    ±0.5
±2
%
Cross Regulation Dual (25% to 100% load)     ±5 %
Ripple & Noise Output:3-15V TYPES
BW=DC To 20MHz
    100 mVp-p
Output >15V TYPES
BW=DC To 20MHz
    1% of Vout mVp-p
Transient response setting time 25% load step change   300   us
External Trim Adj. Range       ±10 %


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Switching Frequency     350   KHz
Operating Temperature Refer to temperature derating graph
(with derating)
-40   +77
Humidity Non Condensing 5   95 %
Cooling Natural Convection (20LFM)
Case Material Nickel Coated with Non-Conductive Base
Weight   40 g
Dimensions   50.8X 25.4 X 11.6 mm
Potting material   Epoxy (UL94V-0 rated)
Remote ON/OFF ON
OFF
Open
Short to -Vin
Isolation Voltage       1500 VDC
MTBF MIL-HDBK-217F @25℃ ,
Ground Benign
328000     Hours
Storage Temperature   -55   +125
Case Temperature       +105
Isolation Capacitance       1500 pF

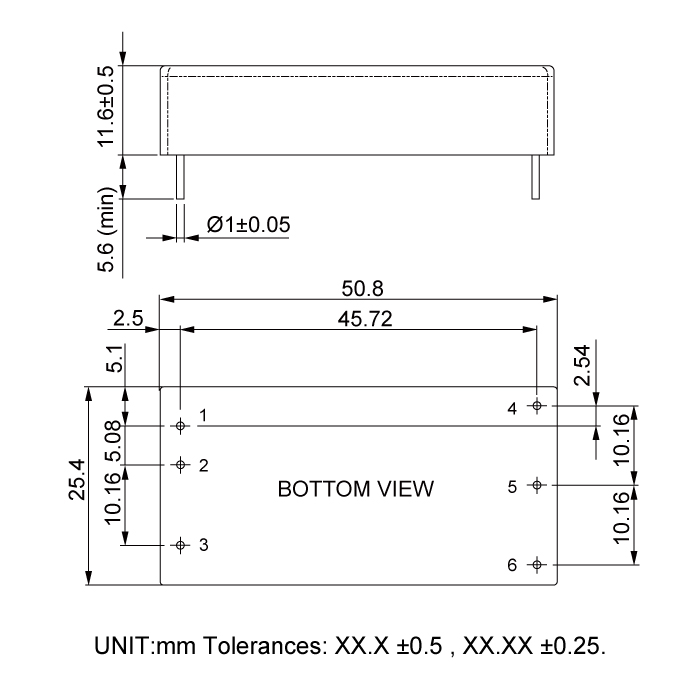

Dimension



99D-R3




 Files Download       99D-R3-Series.pdf



Certification
