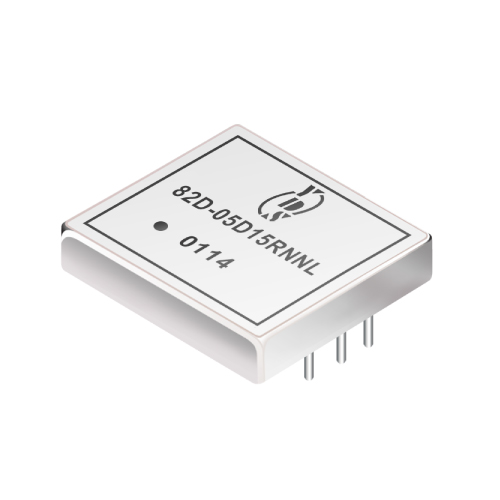

82D 系列 6瓦 0.5KV隔離電壓 直流對直流電源轉換器

功能&特點

• 輸出功率高達6瓦。

• 低雜訊。

• 穩壓輸出類型。

• 500Vdc 隔離電壓。

• MTBF:>1,500,000 hrs。

• 操作環境溫度:-40℃ 至 +85℃。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
	Vdc	Vdc	mA	%TYP
82D-05S05RNNL	5	5	1200	60
82D-05S12RNNL	5	12	500	65
82D-05D15RNNL	5	±15	±200	65
82D-12S12RNNL	12	12	500	65
82D-12S15RNNL	12	15	400	65
82D-12D12RNNL	12	±12	±250	65
82D-24S05RNNL	24	5	1200	60
82D-24S15RNNL	24	15	400	65
82D-24D12RNNL	24	±12	±250	65
82D-48S15RNNL	48	15	400	65
82D-48D12RNNL	48	±12	±250	65
82D-48D15RNNL	48	±15	±200	65

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance				±10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance				±5	%
Short Circuit Protection	Continuous
Line Regulation				±0.3	%
Load Regulation				±0.5	%
Ripple & Noise	BW=DC To 20MHz			50	mVp-p
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			50		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	Nickel Coated With Non-Conductive Base
Weight		57			g
Dimensions		50.8 x 50.8 x 10.7			mm

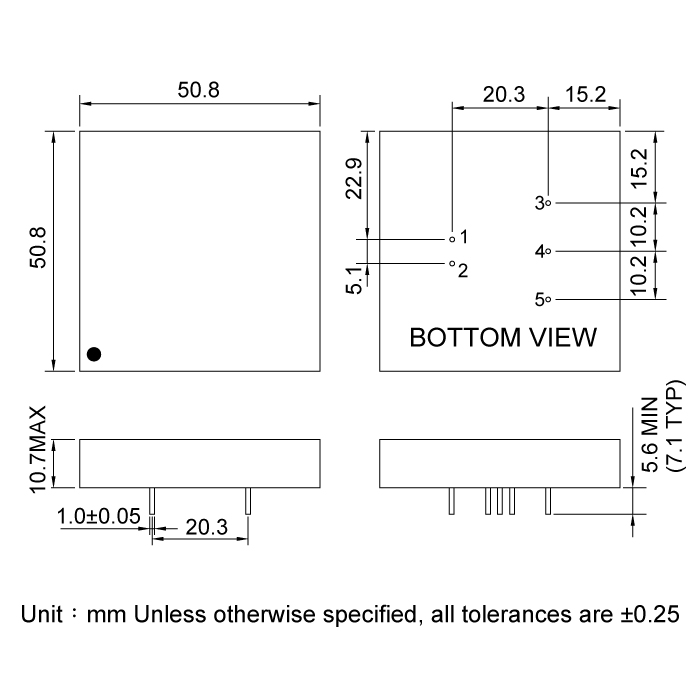

Dimension

 Files Download       82D-Series.pdf

Certification
