60D 系列 3瓦 1.5KV隔離電壓 直流對直流電源轉換器

功能&特點

• DIL包裝。

• 低雜訊。

• 效率高達85% 。

• 穩壓輸出類型。

• 內部為SMD結構。

• 操作環境溫度:-40℃ 至 +85℃。

• 工業標準引腳。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency
	Vdc	mA	%TYP
60D-XXS05CN	5	600	65
60D-XXS09CN	9	333	70
60D-XXS12CN	12	250	75
60D-XXS15CN	15	200	80
60D-XXS24CN	24	125	80
60D-XXD05CN	±5	±300	65
60D-XXD09CN	±9	±167	70
60D-XXD12CN	±12	±125	75
60D-XXD15CN	±15	±100	80
60D-XXD24CN	±24	±63	80

Note:
1.”XX” Is Input Voltage:05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc,24=24Vdc,48=48Vdc.
2. The input voltage increases, there will be an increase in efficiency.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo,Io Nom			±10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±3	%
Short Circuit Protection	Continuous
Line Regulation	Regulated			±0.5	%
Load Regulation	Regulated			±0.8	%
Ripple & Noise	Output:5-9V TYPES BW=DC To 20MHz			100	mVp-p
Ripple & Noise	Output:12-24V TYPES BW=DC To 20MHz			1% of Vout	mVp-p

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	Nickel Coated With Non-Conductive Base
MTBF	MIL-HDBK-217F@25℃	1500000			Hours
Weight		31.7			g
Dimensions		50.8 x 25.4 x 10.2			mm

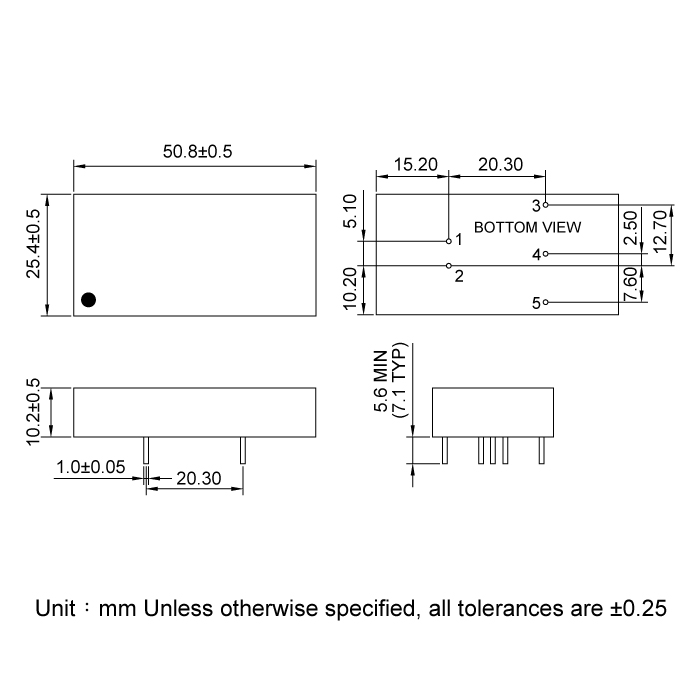

Dimension
