26D 系列 1瓦 3KV隔離電壓 直流對直流電源轉換器

狀態:
數量:
  • 26D 系列

  • YDS

功能&特點


  • 14PIN DIL 包裝。

  • 效率高達85%。

  • 內部為SMD結構。

  • 非穩壓輸出類型。

  • 不需外部零組件。

  • 操作環境溫度:-40℃ 至 +85℃。

  • 工業標準引腳。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output Voltage Output Current Efficiency Package Style
Vdc mA %TYP
26D-XXS03NNL 3.3 303 70 1
26D-XXS05NNL 5 200 70 1
26D-XXS09NNL 9 112 75 1
26D-XXS12NNL 12 84 78 1
26D-XXS15NNL 15 67 80 1
26D-XXS24NNL 24 42 82 1
26D-XXD03NNL ±3.3 ±150 70 1
26D-XXD05NNL ±5 ±100 70 1
26D-XXD09NNL ±9 ±56 75 1
26D-XXD12NNL ±12 ±42 78 1
26D-XXD15NNL ±15 ±34 80 1
26D-XXD24NNL ±24 ±21 82 1
26D-XXS03N2NL 3.3 303 70 2
26D-XXS05N2NL 5 200 70 2
26D-XXS09N2NL 9 112 75 2
26D-XXS12N2NL 12 84 78 2
26D-XXS15N2NL 15 67 80 2
26D-XXS24N2NL 24 42 82 2
26D-XXD03N2NL ±3.3 ±150 70 2
26D-XXD05N2NL ±5 ±100 70 2
26D-XXD09N2NL ±9 ±56 75 2
26D-XXD12N2NL ±12 ±42 78 2
26D-XXD15N2NL ±15 ±34 80 2
26D-XXD24N2NL ±24 ±21 82 2
Recognized By UL 60950-1
26D-05S05NNL,26D-05S09NNL,26D-05S12NNL,26D-05S15NNL,26D-05S24NNL,
26D-24S05NNL,26D-24S24NNL

Note:
1.”XX” Is Input Voltage:03=3.3Vdc,05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc,24=24Vdc.
2.The input voltage increases, there will be an increase in efficiency.



Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance Vo,Io Nom     ±10 %
Filter Capacitor


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% full load     ±5 %
Short Circuit Protection Short Term     1 Sec
Line Regulation For 1.0% of Vin   1.2   %
Load Regulation 3.3V,5V
(10% To 100% F.L)
    15 %
Load Regulation 9V,12V,15V,24V
(10% To 100% F.L)
    10 %
Ripple & Noise BW=DC To 20MHz     100 mVp-p
Transient response setting time 50% load step change   350   us


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Switching Frequency Full load, nominal input   100   KHz
Operating Temperature   -40   +85
Humidity Non Condensing     95 %
Cooling Free air Convection
Case material DAP
MTBF MIL-HDBK-217F@25℃ 3500000     Hours
Weight Package 1 or
Package 2
2.3 or 3.0 g
Dimensions Package 1 20.32 x 10.16 x 6.80 mm
Dimensions Package 2 20.32 x 10.16 x 7.70 mm



Dimension

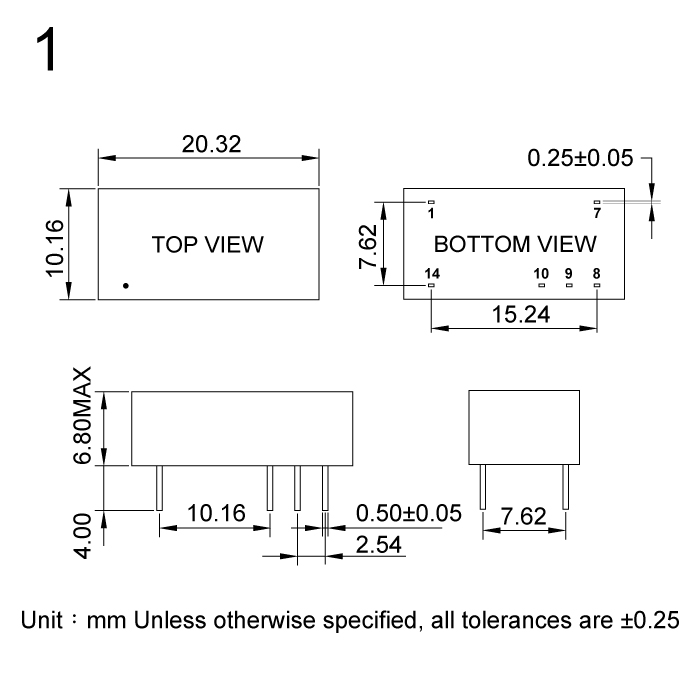

26D-01

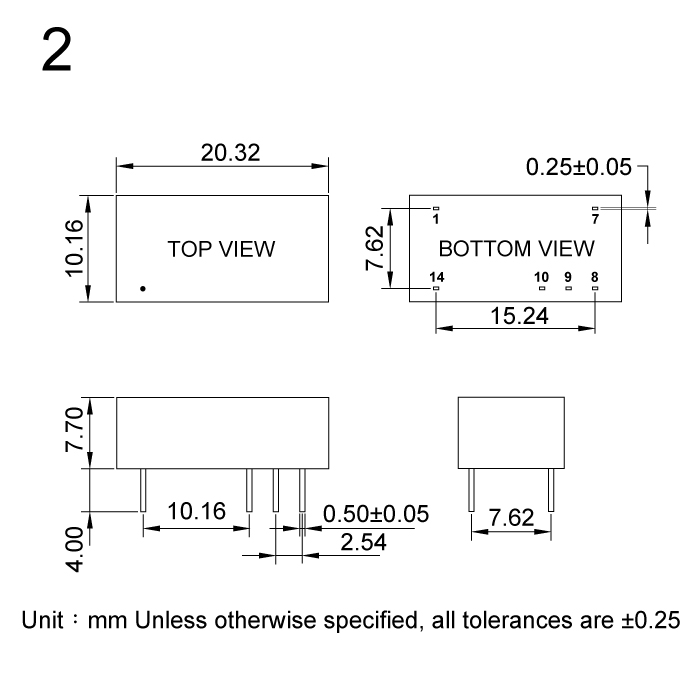

26D-02



 Files Download      26D-Series.pdf
