14PIN DIL 包裝。
效率高達85%。
內部為SMD結構。
非穩壓輸出類型。
不需外部零組件。
操作環境溫度:-40℃ TO +85℃。
工業標準引腳。
Part Number | Output Voltage | Output Current | Efficiency | Recognized By UL 60950-1 |
---|---|---|---|---|
Vdc | mA | %TYP | ||
24D-XXS05NNL | 5 | 400 | 70 | 24D-05D05NNL 24D-05D12NNL 24D-05D15NNL 24D-05D24NNL 24D-12D12NNL 24D-12D15NNL 24D-24D05NNL 24D-24D09NNL 24D-24D15NNL 24D-24D24NNL |
24D-XXS09NNL | 9 | 222 | 75 | |
24D-XXS12NNL | 12 | 167 | 80 | |
24D-XXS15NNL | 15 | 133 | 80 | |
24D-XXS24NNL | 24 | 84 | 85 | |
24D-XXD05NNL | ±5 | ±200 | 70 | |
24D-XXD09NNL | ±9 | ±111 | 75 | |
24D-XXD12NNL | ±12 | ±84 | 80 | |
24D-XXD15NNL | ±15 | ±67 | 80 | |
24D-XXD24NNL | ±24 | ±42 | 85 |
Note:
1.”XX” Is Input Voltage:03=3.3Vdc, 05=5Vdc, 09=9Vdc,12=12Vdc,15=15Vdc 24=24Vdc.
2. The input voltage increases, there will be an increase in efficiency.
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | Vo,Io Nom | ±10 | % | ||
Filter | Capacitor |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | 100% full load | ±5 | % | ||
Short Circuit Protection | Short Term | 1 | Sec | ||
Line Regulation | For 1.0% OF Vin | 1.2 | % | ||
Load Regulation | 5V (10% To 100% F.L) | 15 | % | ||
Load Regulation | 9V,12V,15V,24V (10% To 100% F.L.) | 10 | % | ||
Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
Transient response setting time | 50% load step change | 350 | us |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Resistance | 500Vdc | 1000 | MΩ | ||
Switching Frequency | Full load, nominal input | 75 | KHz | ||
Operating Temperature | -40 | +85 | ℃ | ||
Humidity | Non Condensing | 95 | % | ||
Cooling | Free air Convection | ||||
Case material | DAP | ||||
MTBF | MIL-HDBK-217F@25℃ | 3500000 | Hours | ||
Weight | 2.8 | g | |||

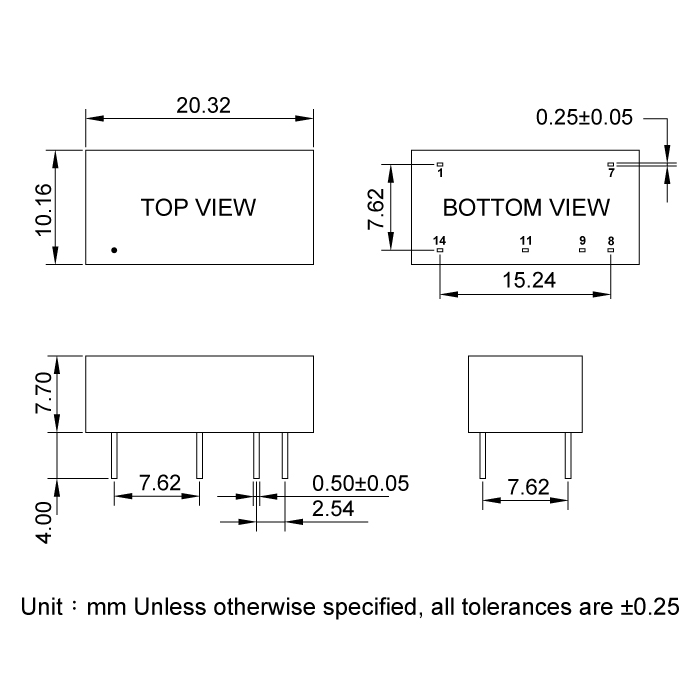

Dimensions | 20.32 x 10.16 x 7.70 | mm |
Files Download 24D Series.pdf
