96DW 系列
YDS
30瓦 DIL 包裝。
寬輸入4:1電壓範圍。
100%高溫預燒測試。
效率高達83%。
提供客製化。
符合UL94V-0規範包裝材質。
操作環境溫度:-40°C 至 +87°C。
產品保固3年。
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | |
| 96DW-24S03RNL | 9-36 | 25 | 1103 | 3.3 | 6500 | 81 |
| 96DW-24S05RNL | 9-36 | 25 | 1524 | 5 | 6000 | 82 |
| 96DW-24S12RNL | 9-36 | 25 | 1524 | 12 | 2500 | 82 |
| 96DW-24S15RNL | 9-36 | 25 | 1524 | 15 | 2000 | 82 |
| 96DW-48S03RNL | 18-72 | 20 | 545 | 3.3 | 6500 | 82 |
| 96DW-48S05RNL | 18-72 | 20 | 753 | 5 | 6000 | 83 |
| 96DW-48S12RNL | 18-72 | 20 | 753 | 12 | 2500 | 83 |
| 96DW-48S15RNL | 18-72 | 20 | 753 | 15 | 2000 | 83 |
| 96DW-24D05RNL | 9-36 | 25 | 1524 | ±5 | ±3000 | 82 |
| 96DW-24D12RNL | 9-36 | 25 | 1524 | ±12 | ±1250 | 82 |
| 96DW-24D15RNL | 9-36 | 25 | 1524 | ±15 | ±1000 | 82 |
| 96DW-48D05RNL | 18-72 | 20 | 753 | ±5 | ±3000 | 83 |
| 96DW-48D12RNL | 18-72 | 20 | 753 | ±12 | ±1250 | 83 |
| 96DW-48D15RNL | 18-72 | 20 | 753 | ±15 | ±1000 | 83 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 4:1 | ||||
| Filter | Pi TYPE | ||||
| Protection | Fuse Recommended |
|
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ±2 | % | ||
| Short Circuit /Restart Protection | Hiccup,automatic recovery | ||||
| Over Load Protection | 150 | ||||
| Line Regulation | Single & Dual (H/L to L/L) | ±0.5 | % | ||
| Load Regulation | Single & Dual, Balance Load (F.L-50%F.L) | ±0.5 | % | ||
| Cross Regulation | Dual (25% to 100% load) | ±5 | % | ||
| Ripple & Noise | BW=DC To 20MHz (with 1uF Cap.) | 100 | mVp-p | ||
| Transient response setting time | 25% load step change | 350 | us | ||
| External Trim Adj. Range | ±10% of Output Voltage |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 270 | KHz | |||
| Operating Temperature | -40 | +87 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel Coated with Non-Conductive Base | ||||
| Weight | 65 | g | |||

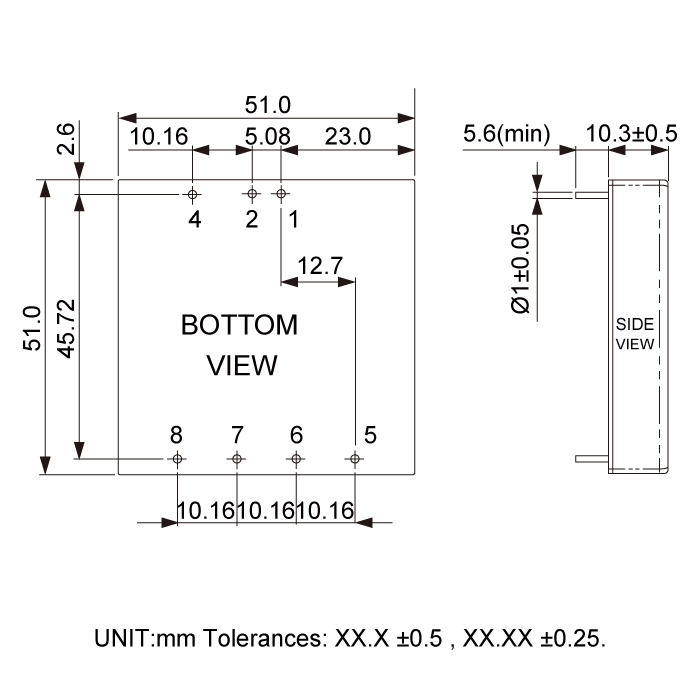

| Dimensions | 51.0 x 51.0 x 10.3 | mm | |||
| Potting Material | Epoxy (UL94V-0 rated) | ||||
| Radiated Emissions | EN55022 | CLASS A | |||
| Conducted Emissions | EN55022 | CLASS A | |||
| Isolation Voltage | For 10 seconds | 3000 | Vdc | ||
| MTBF | MIL-HDBK-217F @25℃ , Ground Benign | 400000 | Hours | ||
| Storage Temperature | -55 | +125 | ℃ | ||
| Case Temperature | +105 | ℃ | |||
| Isolation Capacitance | 2500 | pF | |||
Files Download
96DW-Series.pdf
